Florabest 46 BA/07 8102000 Series A (2007) Deck housing Ricambi

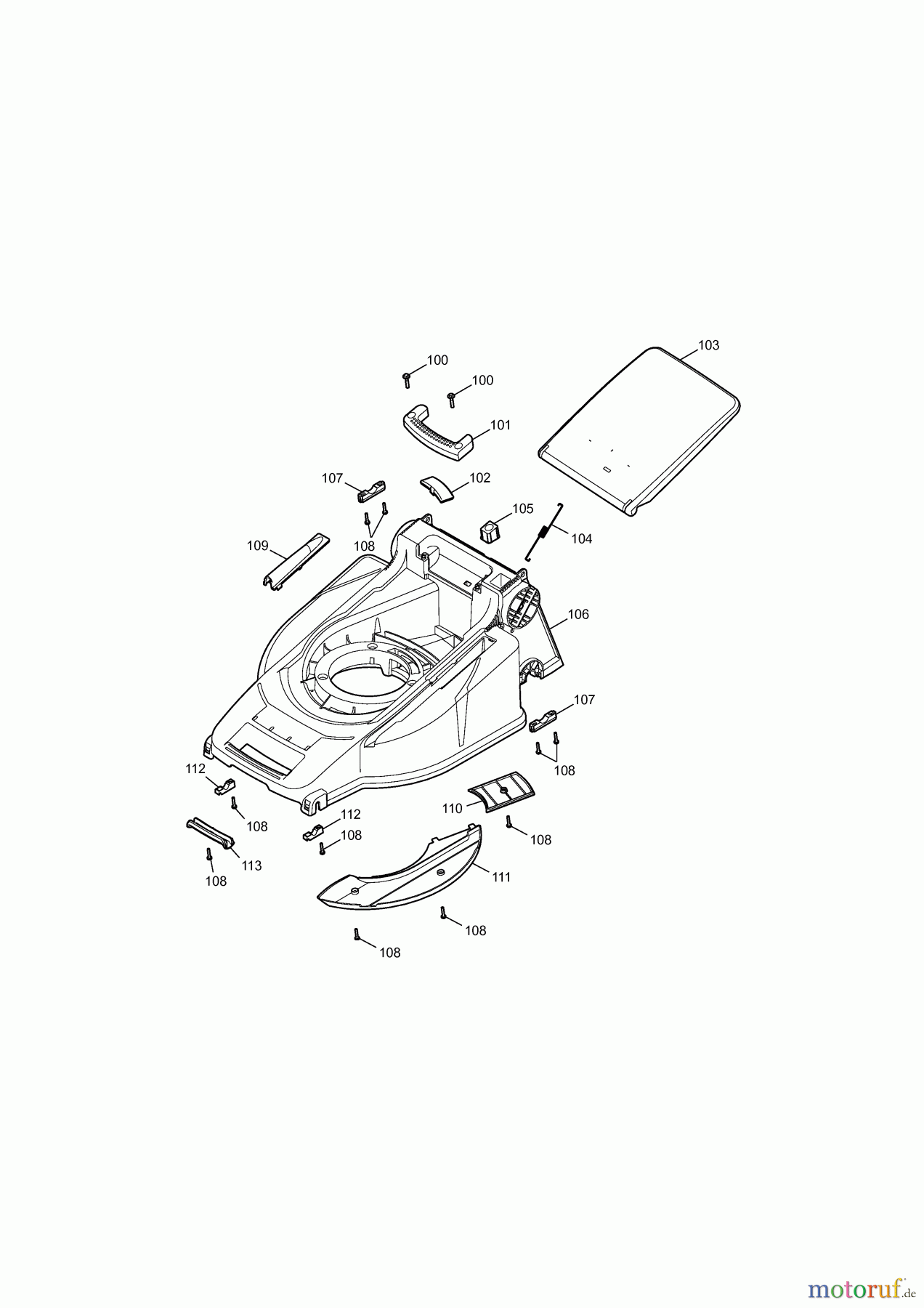

Deck housing 8102000 Series A (2007)
| Posizione | Articolo numero | Descrizione | |
| 100 | 0012643 | SCREW K60X30/20 | |
| 101 | 8101302 | Tragegr.hinten schwarz(RAL9005 | |
| 102 | 8102335 | ||
| 103 | 8101322 | Schutzklappe grün Pantone 376C | |
| 104 | 4961109 | tension spring | |
| 105 | 8102304 | button | |
| 106 | 8102040 | chassis | |
| 107 | 8101313 | AXLE RETAINER (REAR) | |
| 108 | 0012631 | SCREW | |
| 109 | 8101315 | Hutze grün Pantone 376C | |
| 110 | 8101324 | COVER (6.40E) | |
| 111 | 8101311 | Windkanalabdeckung grün Panton | |
| 112 | 8101312 | AXLE RETAINER (FRONT) | |
| 113 | 8101319 | Griffsch.vorne schwarz(RAL9005 | |
