Electric parts 13AF91TG417 (2009)

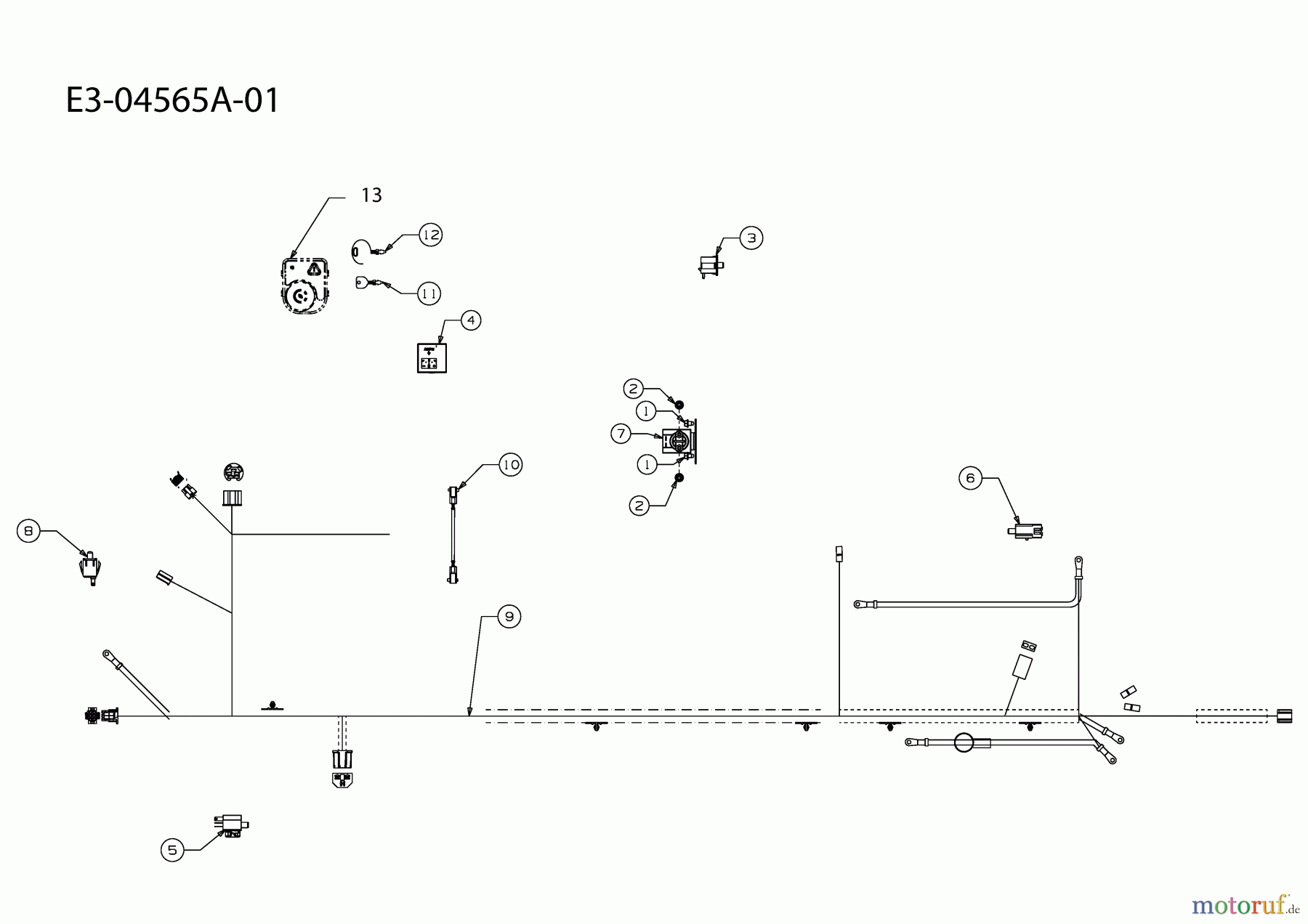

Verts Loisirs Lawn tractors VLK2 22H107 N 13AF91TG417 (2009) Electric parts
PosizioneArticolo numeroDescrizione
1 Verts Loisirs SCREW:TT:1/4-20:0.375:HXINDWSH710-0653SCREW:TT:1/4-20:0.375:HXINDWSH
2 Verts Loisirs NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
3 725-04040SW:SEAT:N/C, N/C
4 Verts Loisirs IND:MONITOR:AMMETER W/O LIGHTS725-04156IND:MONITOR:AMMETER W/O LIGHTS
5 725-04232SWITCH-3 POLE NC-NO-NO
6 Verts Loisirs SW:INTLK:NO/NC725-04363SW:INTLK:NO/NC
7 Verts Loisirs SOL:12V:100 AMP:4 TERM725-04439SOL:12V:100 AMP:4 TERM
8 725-04807SW:PLNGR:SNAP MNT:N.O.
9 725-04820HARNESS-MAIN E-PTO/AMMTR/RMC
10 725-04886HARNESS LIGHT SWITCH
11 Verts Loisirs KEY:SW:UNIVERSAL725-1744AKEY:SW:UNIVERSAL
12 Verts Loisirs KEY:SW:UNIVERSAL:BLACK725-1745AKEY:SW:UNIVERSAL:BLACK
13 Verts Loisirs SW:KEY:MODULE EXPORT 8 PIN725-04230BSW:KEY:MODULE EXPORT 8 PIN
