Cub Cadet RZT 50 17AA5D7P603 (2006) Carburetor Ricambi

Carburetor 17AA5D7P603 (2006)

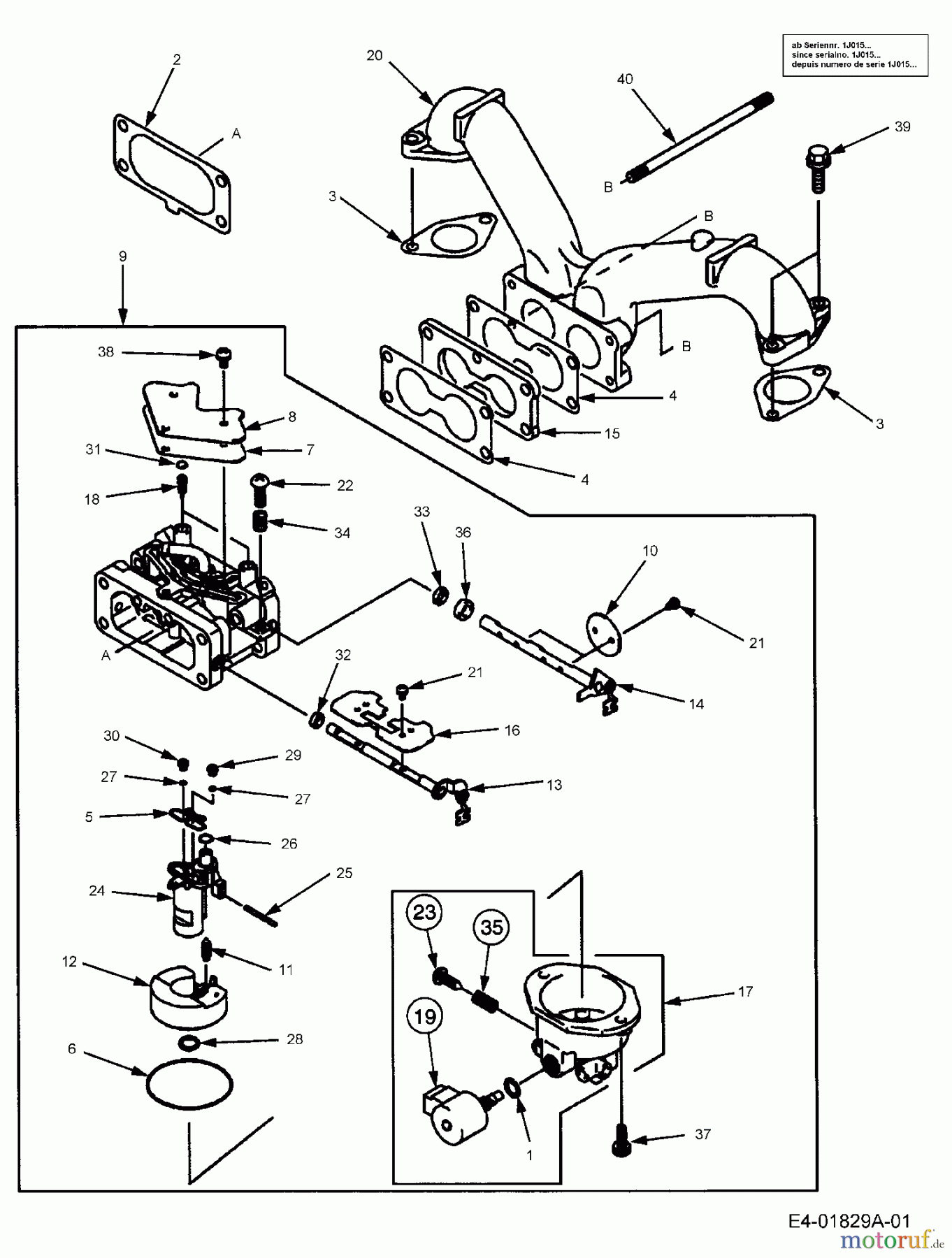

Cub Cadet Zero Turn RZT 50 17AA5D7P603 (2006) Carburetor
PosizioneArticolo numeroDescrizione
1 KM110092056Gasket
2 KM110607009Gasket
3 KM110607011GASKET
4 KM110607024GASKET-CARBURETOR
5 KM110617037Gasket
6 KM110617038Gasket
7 KM110617039GASKET COVER PLATE
8 KM140917031Cover
9 KM-15003-7096
10 KM160257003Throttle
11 KM160307004VALVE,FLOAT
12 KM160317003Float
13 KM160417021AXLE-EDGER
14 KM160417023Throttle shaft
15 KM160737005MOUNT-SHOCK
16 KM161267015224534
17 KM161847017CHAMBER-FLOAT
18 KM161877002JET NEEDLE
19 KM211887003SOLENOID-CARBURETOR
20 KM590767002NOZ:CSV:YLW
21 KM920097003Screw
22 KM920097004Screw
23 KM920097006Screw
24 KM-92026-7010
25 KM920437014Roll pin
26 KM920557012RING-O
27 KM920557013RING-O
28 KM-92055-7014
29 KM920637051JET-MAIN #104
30 KM920637056JET-MAIN #102
31 KM920667009PLUG
32 KM920937001Gasket ring
33 KM920937002Gasket ring
34 KM921457010Return spring
35 KM921457011Return spring
36 KM921527005BUSHING
37 KM921727005Screw
38 KM921727006Screw
39 KM130B0620BOLT THRU
40 KM172G06105PIN
