Cub Cadet RZT 50 17AA5D7P603 (2006) Mowing deck P (50"/127cm) Ricambi

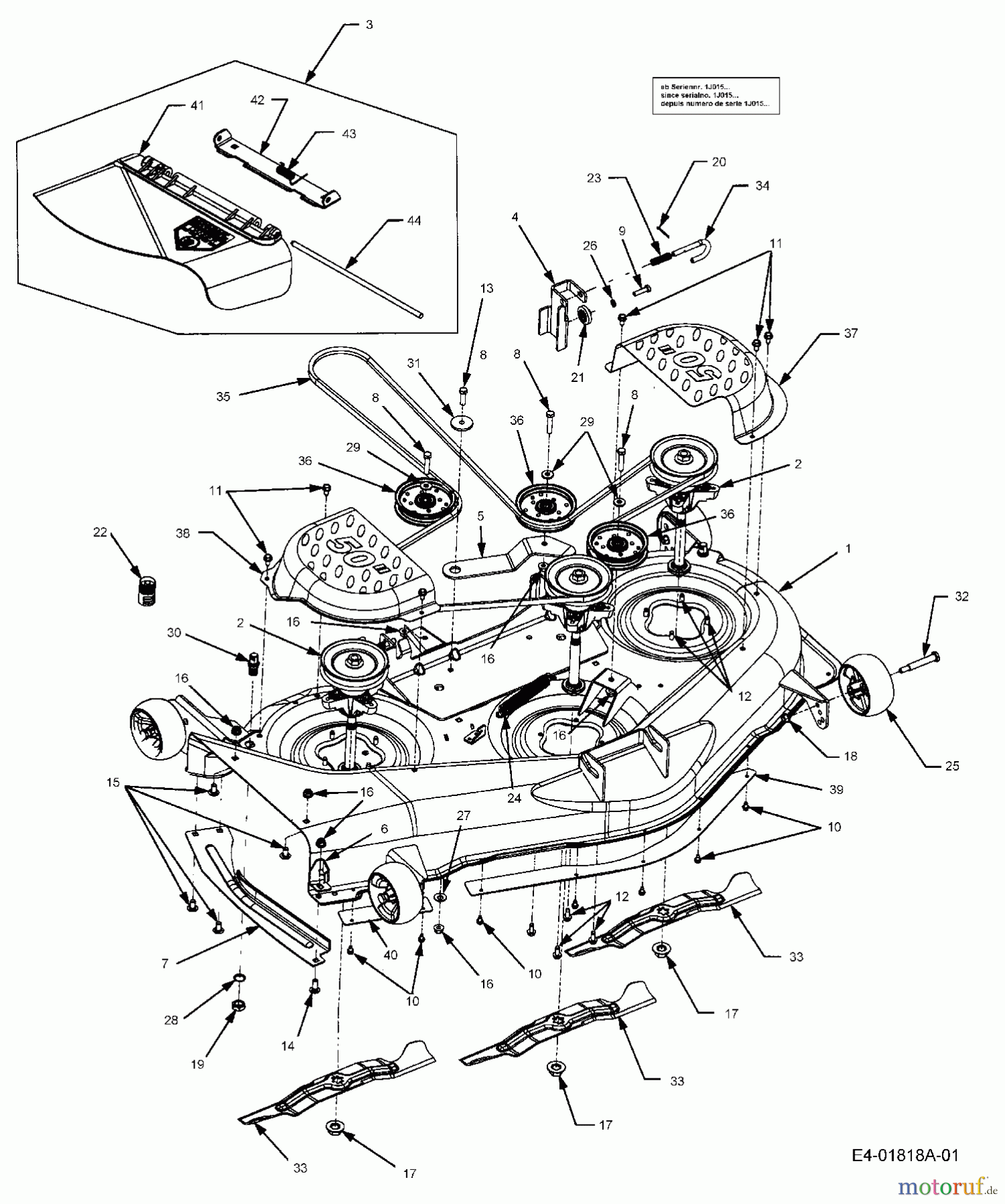

Mowing deck P (50"/127cm) 17AA5D7P603 (2006)

Cub Cadet Zero Turn RZT 50 17AA5D7P603 (2006) Mowing deck P (50
PosizioneArticolo numeroDescrizione
1 603-04328DECK ASSY. 50"
2 618-04126SPDL ASM:PUL:5.695 DIA X .5625
3 631-04070
4 683-0254BRACKET-DECK ADJUSTMENT
5 703-05825ARM-DECK IDLER 50"
6 703-3279STOP:CHUT:DFL
7 703-3511GUARD-FLYWHEEL
8 Cub Cadet HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
9 Cub Cadet HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
10 Cub Cadet SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
11 Cub Cadet SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
12 Cub Cadet SCR:TT:5/16-18:0.750:HXINDWSH710-1260ASCR:TT:5/16-18:0.750:HXINDWSH
13 810-3005
14 710-3168BOLT:CRG:3/8-16:1.00:GR5
15 Cub Cadet BOLT:CRG:3/8-16:0.75:SHRT NK710-3178BOLT:CRG:3/8-16:0.75:SHRT NK
16 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
17 Cub Cadet NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
18 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
19 Cub Cadet NUT:HEX:M16-1.5 DIN 936712-0641NUT:HEX:M16-1.5 DIN 936
20 Cub Cadet PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
21 717-1553BADJ:DECK:GEAR
22 721-04041ADAPER:WATER NOZZLE
23 Cub Cadet COMP.SPRING: .531 OD x 1.75 LG732-0306ACOMP.SPRING: .531 OD x 1.75 LG
24 Cub Cadet SPR:EXTN:.94 DIA X 6.74 LG732-0459SPR:EXTN:.94 DIA X 6.74 LG
25 Cub Cadet WHEEL:DECK734-04155WHEEL:DECK
26 Cub Cadet WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
27 736-0407WASHER
28 Cub Cadet WASH:LOCK:SCHNORR 17X23.8X1.95736-0760WASH:LOCK:SCHNORR 17X23.8X1.95
29 Cub Cadet WASH:FLAT:.38 x.93 x.110:HT736-3072WASH:FLAT:.38 x.93 x.110:HT
30 737-04003CNOZ:DECK:WATER
31 738-04162ASPACER:SHLDR:.8840 x.190
32 Cub Cadet BOLT:SHLDR:.496 x 2.50:3/8-16738-3056BOLT:SHLDR:.496 x 2.50:3/8-16
33 742-04053ABLADE: 17.90 LG STAR 2 IN 1
34 Cub Cadet ROD:HNDL:DECK REL .375 DIA747-1116ROD:HNDL:DECK REL .375 DIA
35 Cub Cadet BELT-SPINDLE A SEC X 134754-04044BELT-SPINDLE A SEC X 134
36 Cub Cadet PUL:IDLR:4.25" DIA756-04129PUL:IDLR:4.25" DIA
37 783-04399COVER-BELT LH
38 783-04400COVER-BELT RH
39 783-04414
40 783-04415SKIRT:RH:50"
41 731-3131ADEFLECTOR
42 783-04470BRACKET-CHUTE MTG
43 732-3070SPRING-TORSION
44 711-1762PIN-HINGE .375DIA X 14,06
