Cub Cadet CC 1527 13A-241G603 (2003) Pedals Ricambi

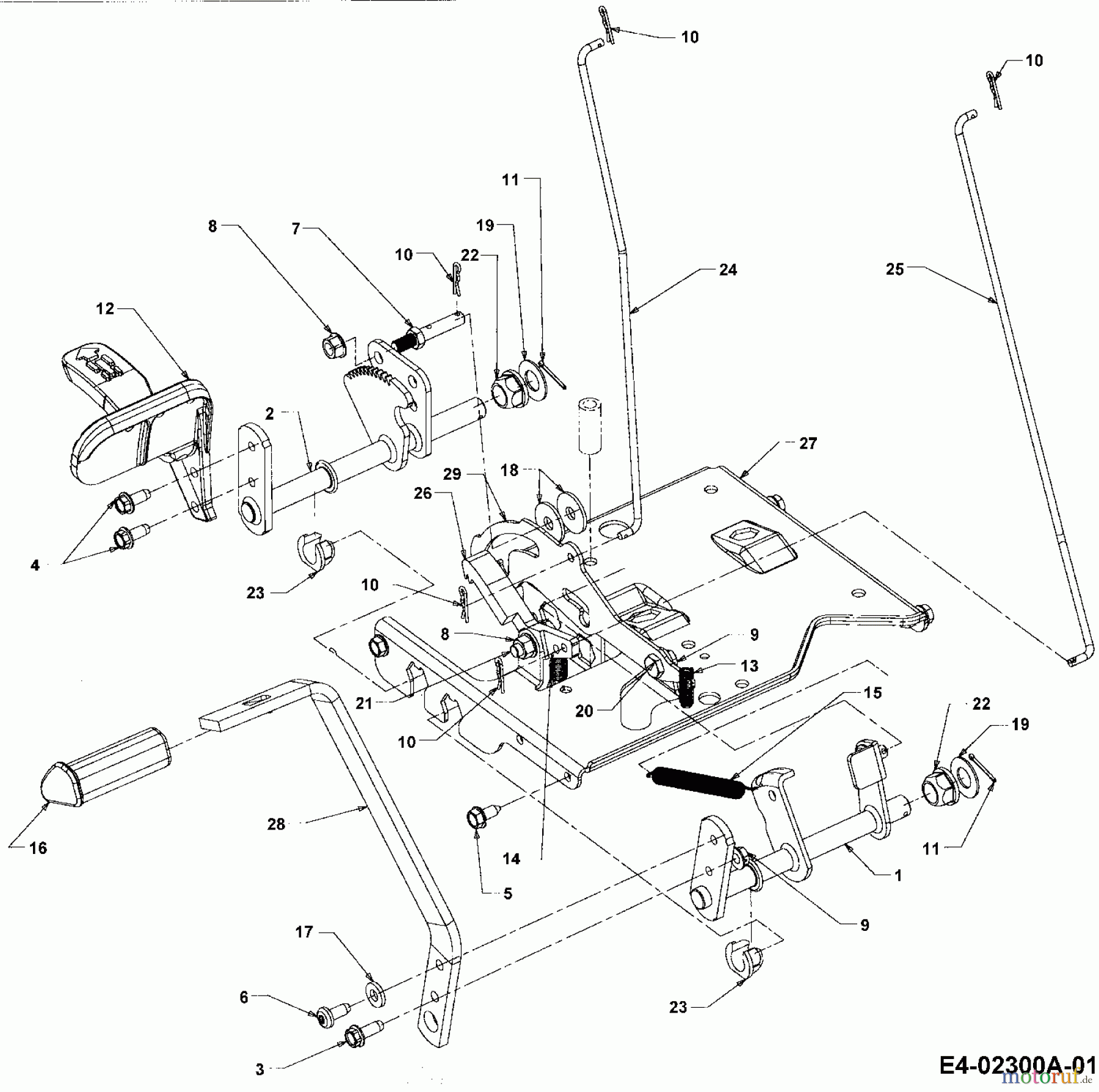

Pedals 13A-241G603 (2003)

Cub Cadet Lawn tractors CC 1527 13A-241G603 (2003) Pedals
PosizioneArticolo numeroDescrizione
1 647-0031BCONTROL BRAKE ASSY.
2 647-0049SHIFT ASSY STEERABLE
3 Cub Cadet SCR:TT:5/16-18:0.875:HXINDWSH710-0650SCR:TT:5/16-18:0.875:HXINDWSH
4 Cub Cadet SCR:TT:5/16-18:0.750:HXINDWSH710-1260ASCR:TT:5/16-18:0.750:HXINDWSH
5 Cub Cadet SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
6 710-1611BSCR:TT:5/16-18:0.750:PANTRXI
7 711-1363PIN:3/8-16:3/8x2.43 LG
8 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
9 Cub Cadet NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
10 Cub Cadet PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
11 Cub Cadet COTTER PIN 3/32 DIA X 1.00714-0111COTTER PIN 3/32 DIA X 1.00
12 719-0584PEDAL CONTROL
13 Cub Cadet Spring732-0335Spring
14 732-0955SPR:EXTN:.50 OD x 1.41 LG
15 Cub Cadet SPRING:EXTN: .50 DIA x 6.37 LG732-0963SPRING:EXTN: .50 DIA x 6.37 LG
16 735-3049FOOT BRAKE PAD
17 Cub Cadet WASH:FL:.344 X.750 X.120736-3008WASH:FL:.344 X.750 X.120
18 736-0133WASH:FLAT:.411 X 1.25 X .100
19 Cub Cadet FL-WASH .640 IDX1.24 OD X .06736-0187FL-WASH .640 IDX1.24 OD X .06
20 738-0155BOLT:SHLDR:.435 x.160:5/16-18
21 Cub Cadet SCR:SHLDR: .500 DIA X .434738-0507BSCR:SHLDR: .500 DIA X .434
22 Cub Cadet BRG:HEX FLNG741-0225BRG:HEX FLNG
23 Cub Cadet BRG:HEX FLG:.628 ID:SPLIT741-3065BBRG:HEX FLG:.628 ID:SPLIT
24 747-04093ROD-BRAKE
25 747-04096ROD:CONT:CRUISE:8&9 STYLE
26 748-0413LATCH-CRUISE
27 783-0653FBRACKET-STEERING SPT
28 783-1469B
29 783-0663CBRKT:LKOUT:HYDRO
