Cub Cadet CC 1527 13A-241G603 (2003) Frame Ricambi

• Start
• Cub Cadet
• Lawn tractors
• CC 1527
• 13A-241G603 (2003)
• Frame

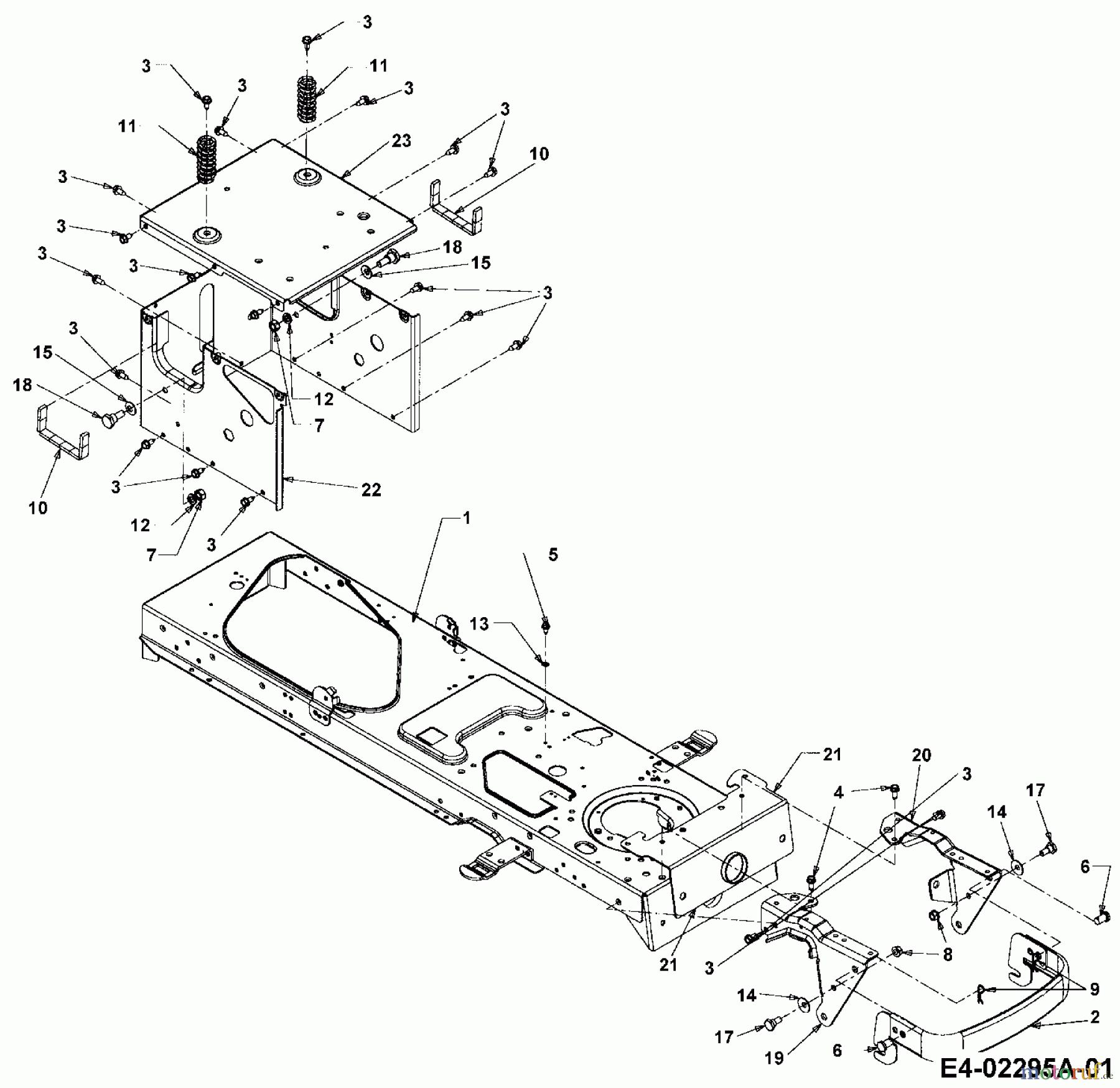

Frame 13A-241G603 (2003)

Posizione		Articolo numero	Descrizione
1		683-0304C	FRAME ASM-LOWER
2		683-0612	BMPR ASM:CUB 1500
3		710-0726	SCR:AB:5/16-12:0.750:HXINDWSH
4		710-1260A	SCR:TT:5/16-18:0.750:HXINDWSH
5		710-1652	SCR:TT:1/4-20 x.625:HXINDWH
6		711-0332	PIN:CLV:.50 DIA x.78 LG
7		712-0378	USE 712-0375
8		712-0431	NUT:FLGLK:3/8-16:GRF:TOP LK
9		714-0145	PIN:CLICK:.092 x 1.64 LG
10		722-3022	TAPE:.625 WIDE x .25 THK FOAM
11		732-04035	COMPR. SPRING:1.28 OD X 3.125
12		736-0171	WASHER:LOCK:7/16:REGULAR DUTY
13		736-0222	WASH:LOCK:1/4:EXTRN
14		736-0331	WASH:BELL:.390 x 1.13 x.062
15		736-0407	WASHER
17		738-0143	SCR:SHLDR:.496x.336:3/8-16
18		738-1020	SCR:SHLDR:.625 x.500:7/16-20
19		783-0726B	BRKT:PIVOT:SUPT RH
20		783-0727A	BRACKET-LH PIVOT SUPPORT
21		783-0728	BRACKET-PIVOT BAR
22		783-1462	FRAME-LOWER ASSEMBLY
23		783-1463	BASE-SEAT
