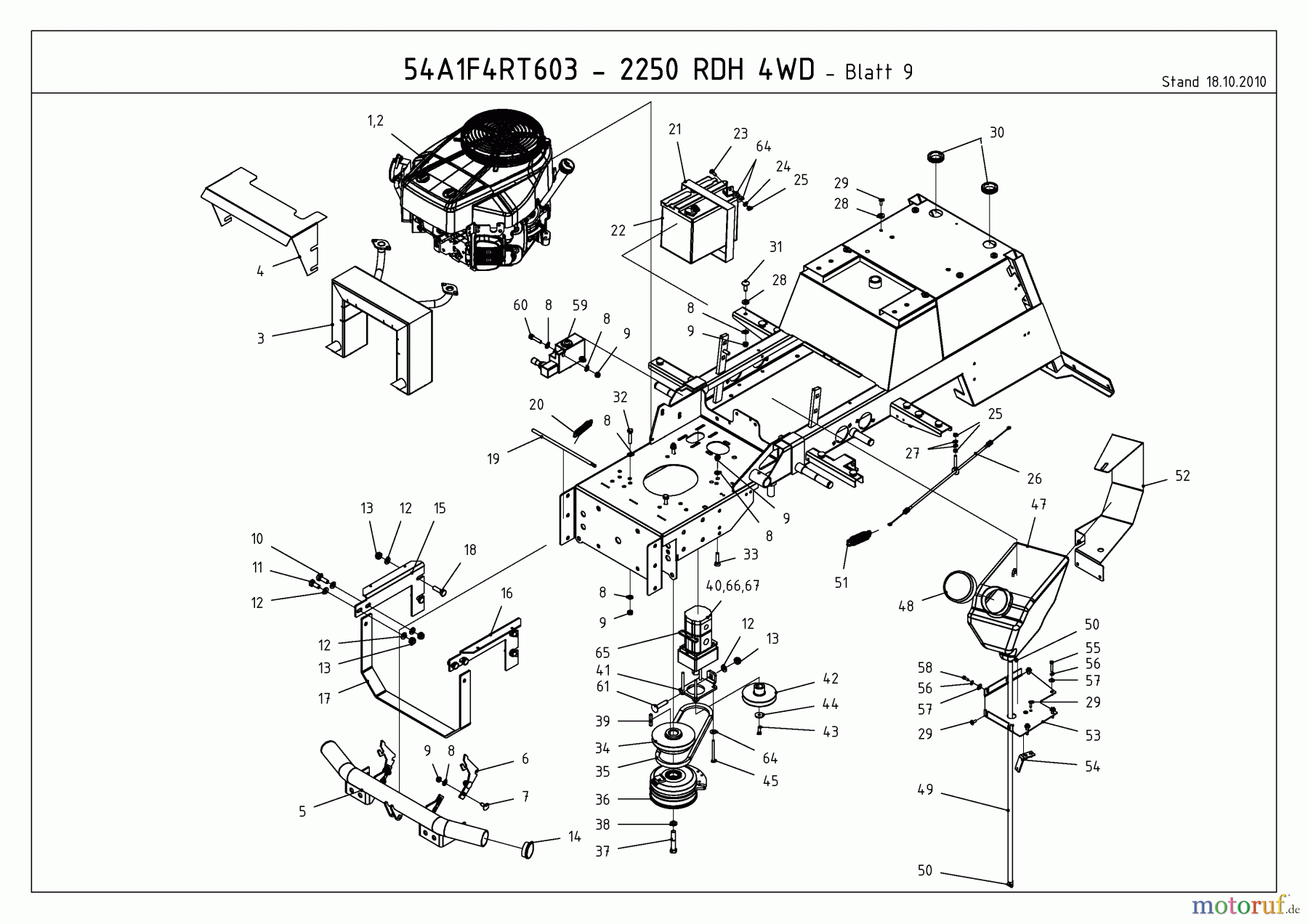

Cub Cadet CC 2250 RDH 4 WD 54A1F4RT603 (2011) Electric clutch, Engine accessories, Fuel tank Ricambi

Electric clutch, Engine accessories, Fuel tank 54A1F4RT603 (2011)

Cub Cadet Compact tractors CC 2250 RDH 4 WD 54A1F4RT603 (2011) Electric clutch, Engine accessories, Fuel tank
PosizioneArticolo numeroDescrizione
1 752S721W04KAWA-MOTOR-TWIN
2 FG102005HEX-NUT
3 FG107380HITZEFEST MTD SCHWARZ GEPULVER
4 FG107393SCHUTZBLECH AUSPUFF
5 FG106634FG106634
6 FG106635FG106635
7 FG100079ROUND-HEAD SCREW
8 736-0700WASH:FLAT:8.4 x 16 x 1.60
9 712-0692NUT:HEXLK:M8-1.25 NYLON DIN985
10 FG100114HEX BOLT
11 FG105052HEXAGONAL SCREW
12 736-0734WASH:FLAT:10,5 IDx20 OD DIN125
13 712-0637NUT:M10x1.5 DIN 985 NYLOCK
14 FG106012LAMELLA PLUG ROUND
15 FG106637RH RADIATOR SUPPORT BRACKET
16 FG106638LH RADIATOR SUPPORT BRACKET
17 FG106636AUSPUFFSCHUTZ UNIVERSALSTOSS-
18 FG100115HEXAGONAL SCREW
19 FG100368FIXING, HOOD
20 FG100166EXTENSION SPRING
21 FG105142LASHING STRAP
22 Cub Cadet BATTERY:U1:220 CCA DRY725-1751BATTERY:U1:220 CCA DRY
23 710-1753HEX. SCREW:DIN 933-8.8 M6x20mm
24 736-0648WASHER:LOCK:B6:DIN 127
25 712-0689NUT:HEX:M6-1:DIN 934
26 FG105924THROTTLE CABLE DIFFERENTIAL
27 Cub Cadet WASH: FLAT: 6.4x12x1.6736-0668WASH: FLAT: 6.4x12x1.6
28 FG100144DISTANCE RUBBER 8mm
29 FG100049FILLISTER FLANGE HEAD SCREW
30 FG105774CABLE GROMMET
31 710-04451BOLT:M8x1.25x25 DIN 603
32 FG100126HEXAGON SCREW
33 FG105856COUNTERSUNK SOCKET SCREW
34 FG13840DOPPELMOTORRIEMENSCHEIBE
35 FG55901V-BELT QUAD POWER III XPA 732
36 FG100021ELECTRIC CLUTCH SMALL
37 FG101016HEXAGONALE SCREW
38 Cub Cadet WASHER:LOCK:7/16:REGULAR DUTY736-0171WASHER:LOCK:7/16:REGULAR DUTY
39 714-0118KEY:SQ:1/4 x 1.50
40 FG55899DOPPELZAHNRADPUMPE GP1
41 FG105744ADAPTER PLATE, ATTACH. BEARING
42 FG13879RIEMENSCHEIBE PUMPE
43 710-1752SCR:CSK:M4-1:12.00
44 Cub Cadet WASHER:FLAT:.265 x .938 x .120736-0176WASHER:FLAT:.265 x .938 x .120
45 710-1766SCREW HHCS:M6-1:70.00:DIN 931
47 FG101020FUEL TANK
48 FG101021CAP FUEL
49 FG106193FUEL LINE
50 FG101017BAND CLAMP FITTING
51 FG105734EXTENSION SPRING
52 FG106195TANK CLAMP
53 FG106194RETAINING PLATE
54 FG106196BRACKET HANDBRAKE
55 710-1798HHCS:M5x30:DIN 933-8.8 Zn5glcB
56 736-0768WASHER:LOCK:B5 DIN 127:
57 736-0661WASHER A 5,3 DIN 9021
58 710-1705HEX. SCREW:M5X16:DIN 933 8.8
59 FG105381CONTROL VALVE
60 FG107329ZYLINDERSCHR.M8x35 DIN 912-8.8
61 FG105865ROUND-HEAD-SCREW
64 Cub Cadet WASH:FLAT:6.4 IDX18OD DIN 9021736-0685WASH:FLAT:6.4 IDX18OD DIN 9021
65 FG13848PUMPENKLEMMBLECH
66 FG55780VORSATZLAGER FÜR ZAHNRADPUMPE
67 FG55790PROFILBUCHSE MO 1014
