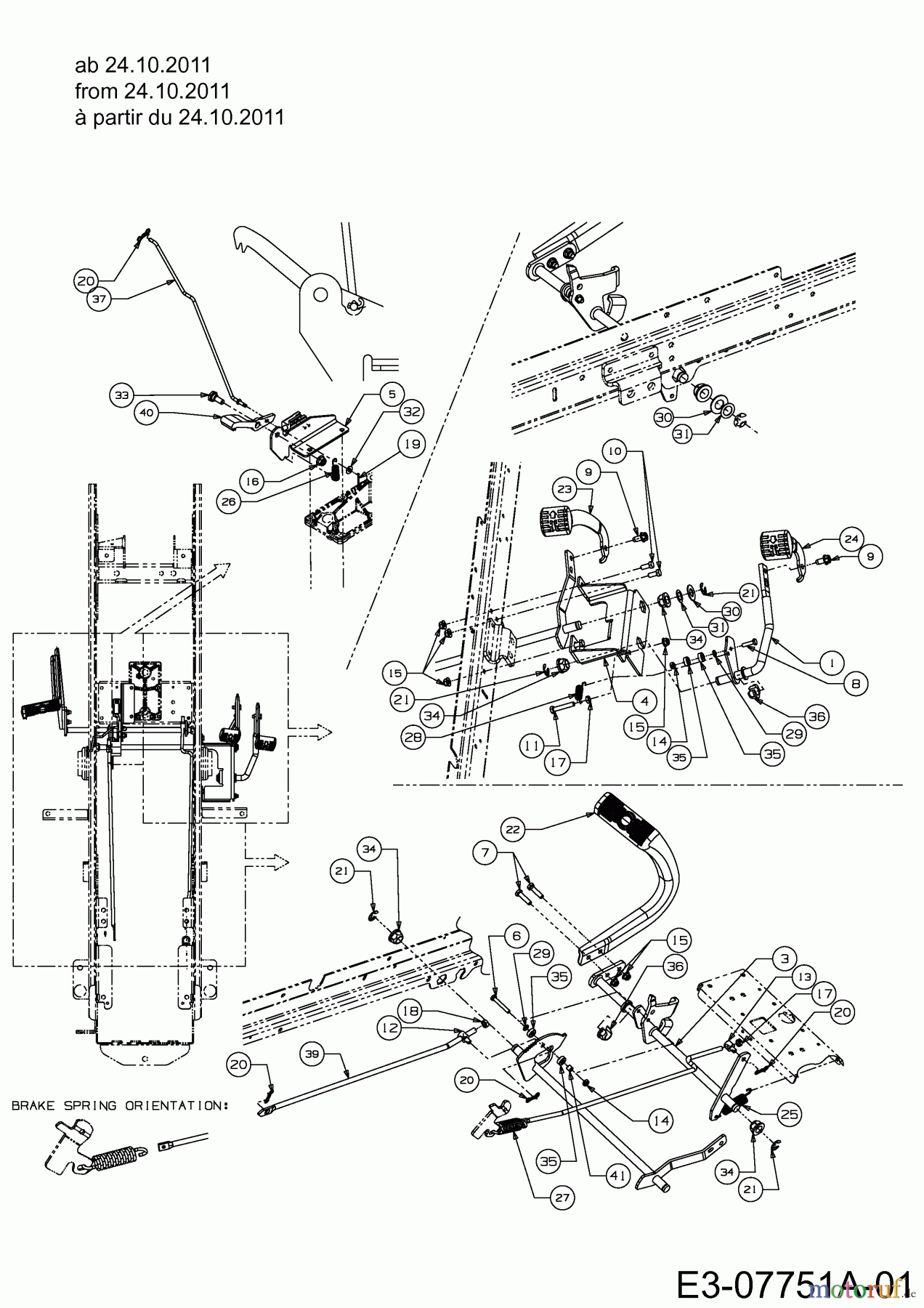

Cub Cadet GTX 2100 14A-3GE-603 (2013) Pedals from 24.10.2011 Ricambi

Pedals from 24.10.2011 14A-3GE-603 (2013)

Cub Cadet Garden tractors GTX 2100 14A-3GE-603 (2013) Pedals from 24.10.2011

Posizione		Articolo numero	Descrizione
1		603-04807	SHAFT REVERSE PEDAL
2		603-04933	SHAFT REVERSE PEDAL
3		603-04934	SHAFT REVERSE PEDAL
4		703-07921
5		703-08010B
6		710-0136	HHCS:1/4-20:1.75:GR5:STD
7		710-0528	HHCS:5/16-18:1.25:GR5:STD
8		710-0597	SCR:HHCS:1/4-20:1.00:GR5:SPEC
9		710-0623	SCR:TT:3/8-16:.750 HXINDWSH
10		710-3008	SCREW HHCS:5/16-18:.75:GR5:STD
11		710-3180	HHCS:5/16-18:1.75:GR5:STD
12		711-0392	FERRULE
13		711-1155	FRL:5/16-18X.312:HT.TR.
14		712-0291	NUT:LOCK:1/4-20:GRA:CTRLK
15		712-04063	FLANGED NUT 5/16-18:GRF:NYLON
16		712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
17		712-3007	HEX NUT:JAM:5/16-18:GR 5
18		712-3008	NUT:JAM:3/8-16:GR5
19		714-0111	COTTER PIN 3/32 DIA X 1.00
20		714-04040	PIN-COTTER
21		716-0106A	RING:E-TYPE:.625 DIA SHAFT
22		719-04647A	PEDAL-BRAKE
23		731-3247	PEDAL-FORWARD
24		732-3248
25		732-04323B	SSPR:EXTN:.770 DIA x 3.720 LG
26		732-04354	Spring
27		732-04889	SPRING-BRAKE TENSION
28		732-3002	SPR:EXT: .51 OD X 2.12 LG
29		736-0142	WASHER:FLAT:.281 x.50 x.063
30		736-0187	FL-WASH .640 IDX1.24 OD X .06
31		736-0336	WASH:SHIM:.625x1.000x.030:HD
32		736-3020	WASH:FLAT:.271 x.630 x.065
33		738-0380	SCR:SHLDR:.500x.270:3/8-16
34		741-0225	BRG:HEX FLNG
35		741-04280	BRG:BALL:.25x.6875x.25:DS
36		741-3065B	BRG:HEX FLG:.628 ID:SPLIT
37		747-0540B
38		747-05439A	brake rod
39		747-05702	ROD HYDRO CONTROL
40		748-04203	LATCH:CRUS
41		750-05654	SPACER-PULLEY
