Cub Cadet HDS 3235 14B-692-603 (2006) Pedals Ricambi

Pedals 14B-692-603 (2006)

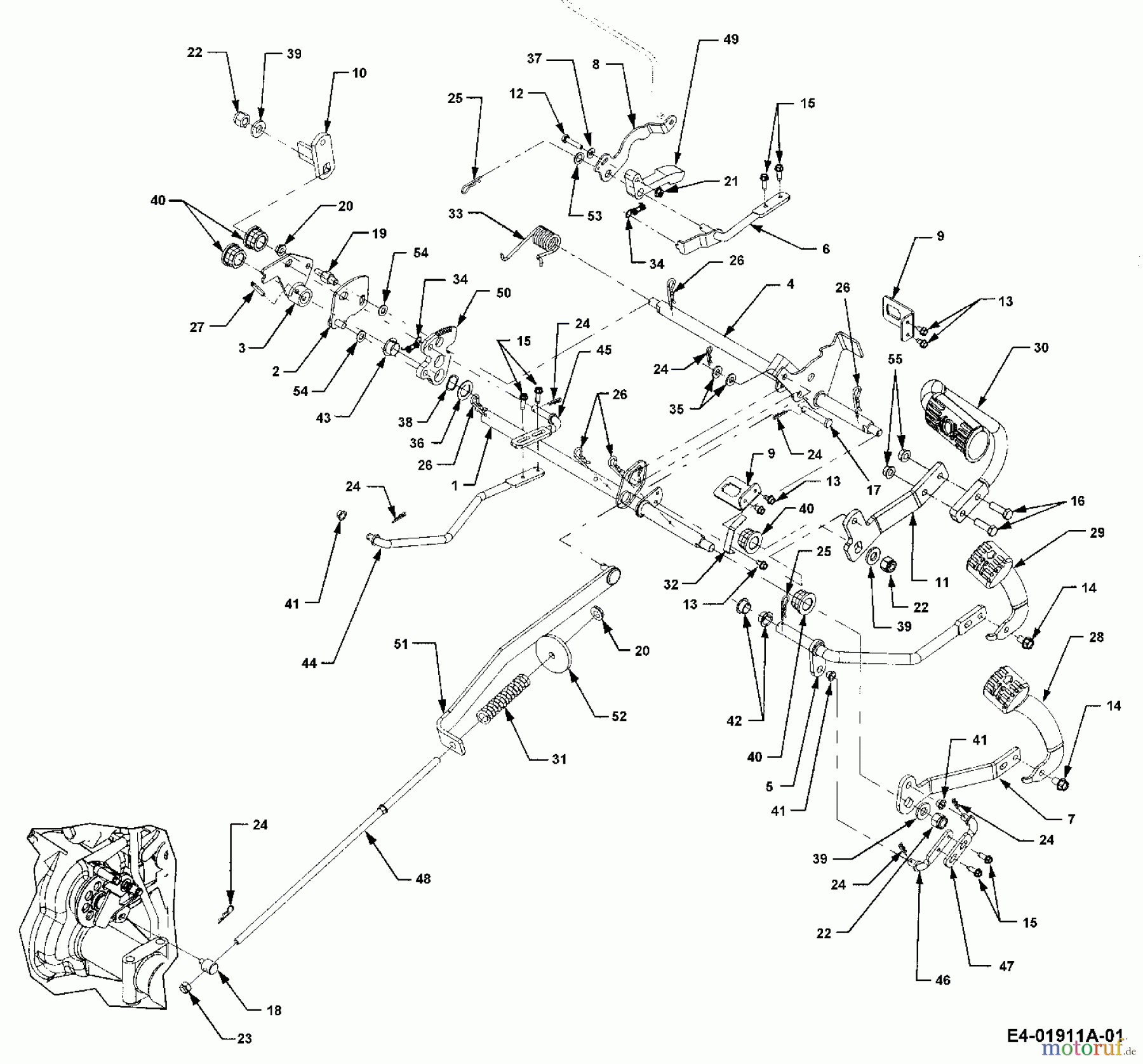

Cub Cadet Garden tractors HDS 3235 14B-692-603 (2006) Pedals
PosizioneArticolo numeroDescrizione
1 603-0379SHAFT ASSY-PEDAL
2 603-0421APLATTE
3 603-0437CAM ASSY-CLUTCH
4 603-0445ABRAKE SHAFT
5 603-0449ASHAFT-ASM REVERSE
6 603-0634ROD ASSY-CRUISE
7 703-3012MOUNTING PLATE - PEDAL
8 703-3020BRACKED-ROD ADJUSTMENT
9 703-3152BRACKET-REV SWITCH
10 603-0733LEVER-DIFF LCK BRAKE
11 703-3156ALINK-BRAKE PEDAL
12 710-0106HHCS:1/4-20:1.25:GR5:SPEC
13 Cub Cadet SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
14 Cub Cadet SCR:TT:3/8-16:.750 HXINDWSH710-0623SCR:TT:3/8-16:.750 HXINDWSH
15 Cub Cadet SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
16 Cub Cadet SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
17 Cub Cadet PIN:CLEVIS:3/8 DIA x 2.015711-0679APIN:CLEVIS:3/8 DIA x 2.015
18 711-1530FERRULE:.325 ID x .312 OD
19 711-04035Bolt
20 Cub Cadet NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
21 Cub Cadet NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
22 712-3058NUT-HEX CENTER LOCK 1/2-20
23 Cub Cadet NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
24 Cub Cadet PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
25 Cub Cadet PIN:CLICK:.092 x 1.64 LG714-0145PIN:CLICK:.092 x 1.64 LG
26 Cub Cadet PIN:COT:.125 x 1.75 INTERNAL714-0147PIN:COT:.125 x 1.75 INTERNAL
27 715-0114SPRING PIN
28 731-3247PEDAL-FORWARD
29 731-3248PEDAL-REVERSE
30 731-3249ABRAKE PEDAL
31 732-0324SPRING-BRAKE
32 732-0859ASpring
33 732-0871Spring
34 732-3118SPR:EXTN:.375 OD x 1.44 LG
35 736-0275WASH:FLAT:.344 x .688 x.065
36 Cub Cadet WASH:FLAT:.793 x 1.24 x .06:HT736-0287WASH:FLAT:.793 x 1.24 x .06:HT
37 736-0463WASH:FLAT: .250 x .630 x .052
38 736-0621WASHER-WAVE
39 736-3019WASHER:FLAT:.531x1.062x.134:HD
40 Cub Cadet BUSHING741-0598BUSHING
41 Cub Cadet BEARING, HEX FLANGE741-3073BEARING, HEX FLANGE
42 741-3074BRG:FLG:.626x.938x.344
43 Cub Cadet BRG:FLG:.751x1.125x.375741-3084BRG:FLG:.751x1.125x.375
44 747-3319ROD-REAR CONNECTOR
45 747-3320ROD-FRONT CONNECTOR
46 747-3324ROD-FWD PED RR CONN
47 747-3353ROD-FWD PED FRT CONN
48 747-3422ROD-BRAKE
49 748-04001LATCH:CRUISE
50 748-3080APLATE-CRUISE
51 603-0738LEVER, PARK BRAKE ENGAGEMENT
52 736-0418AFLAT WASHER .34 ID X 2.25 OD X
53 736-0160WASH:FLAT:.530x.930x.050
54 Cub Cadet WASK:FLAT:.385 x.870 x.092736-0262WASK:FLAT:.385 x.870 x.092
55 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
