Cub Cadet HDS 2205 14A-2D7-603 (2008) Deck lift Ricambi

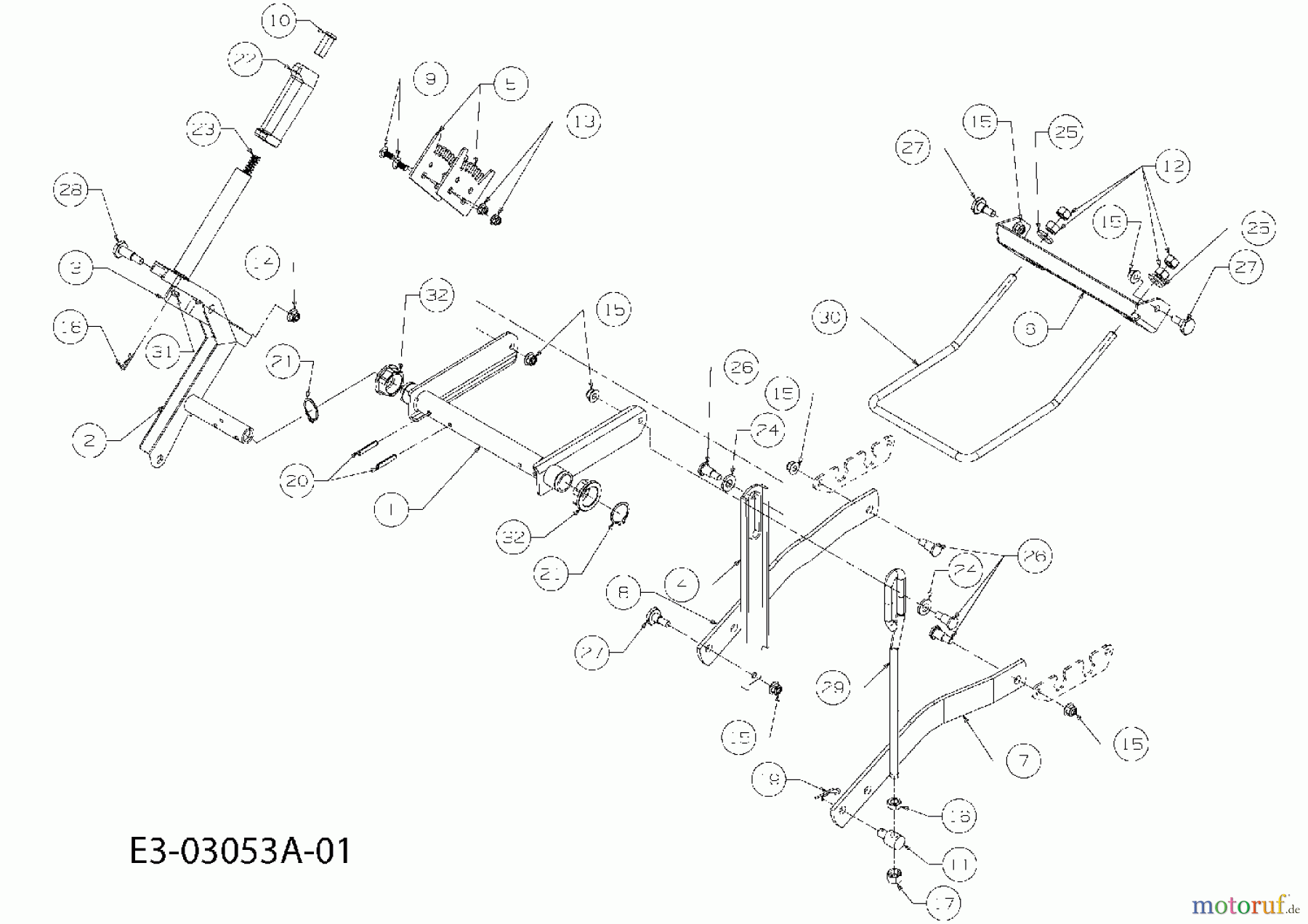

Deck lift 14A-2D7-603 (2008)

Cub Cadet Garden tractors HDS 2205 14A-2D7-603 (2008) Deck lift
PosizioneArticolo numeroDescrizione
1 603-04140ALIFT SHAFT
2 603-04141HANDLE ASSY. LIFT
3 703-05247FORK-LIFT INDEX
4 703-2234RUBBER STRIP
5 703-2239ABRKT-LIFT INDEX
6 703-2248BRACKET-FRONT LIFT
7 703-2832LINK-LIFT R/H
8 703-2833LIFT PLATE L.H.
9 Cub Cadet BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
10 711-0642ABUTTON-LIFT HANDLE
11 711-3319FERRULE,ADJUSTMENT
12 Cub Cadet NUT:HEX:1/2-13:GR5712-0206NUT:HEX:1/2-13:GR5
13 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
14 Cub Cadet NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
15 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
16 712-3048HEX JAM NUT 1/2-13 GR.5
17 Cub Cadet NUT:HEXLK:1/2-13:GRB:NYLON712-3083NUT:HEXLK:1/2-13:GRB:NYLON
18 Cub Cadet PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
19 Cub Cadet PIN:CLICK:.092 x 1.64 LG714-0145PIN:CLICK:.092 x 1.64 LG
20 715-0114SPRING PIN
21 716-0116RING-SNAP
22 731-3158GRIP:HNDL:DECK LIFT
23 732-3097COMP SPRING:.4ID x 8.52 LG
24 736-0326WASH:FLAT:.510 x 1.000 x.125
25 736-3019WASHER:FLAT:.531x1.062x.134:HD
26 738-0430SHLD-SCR: .50 x .685:3/8-16
27 Cub Cadet SCR:SHLDR: .500 DIA X .434738-0507BSCR:SHLDR: .500 DIA X .434
28 738-0560SCREW-SHLD
29 747-04196ROD:DECK LIFT LINK
30 747-3172CROD:FRONT LIFT ADJUSTMENT
31 747-3175AROD,INDEX
32 748-3051BEARING-FLANGE
