Cub Cadet HDS 2205 14A-2D7-603 (2005) Engine hood Ricambi

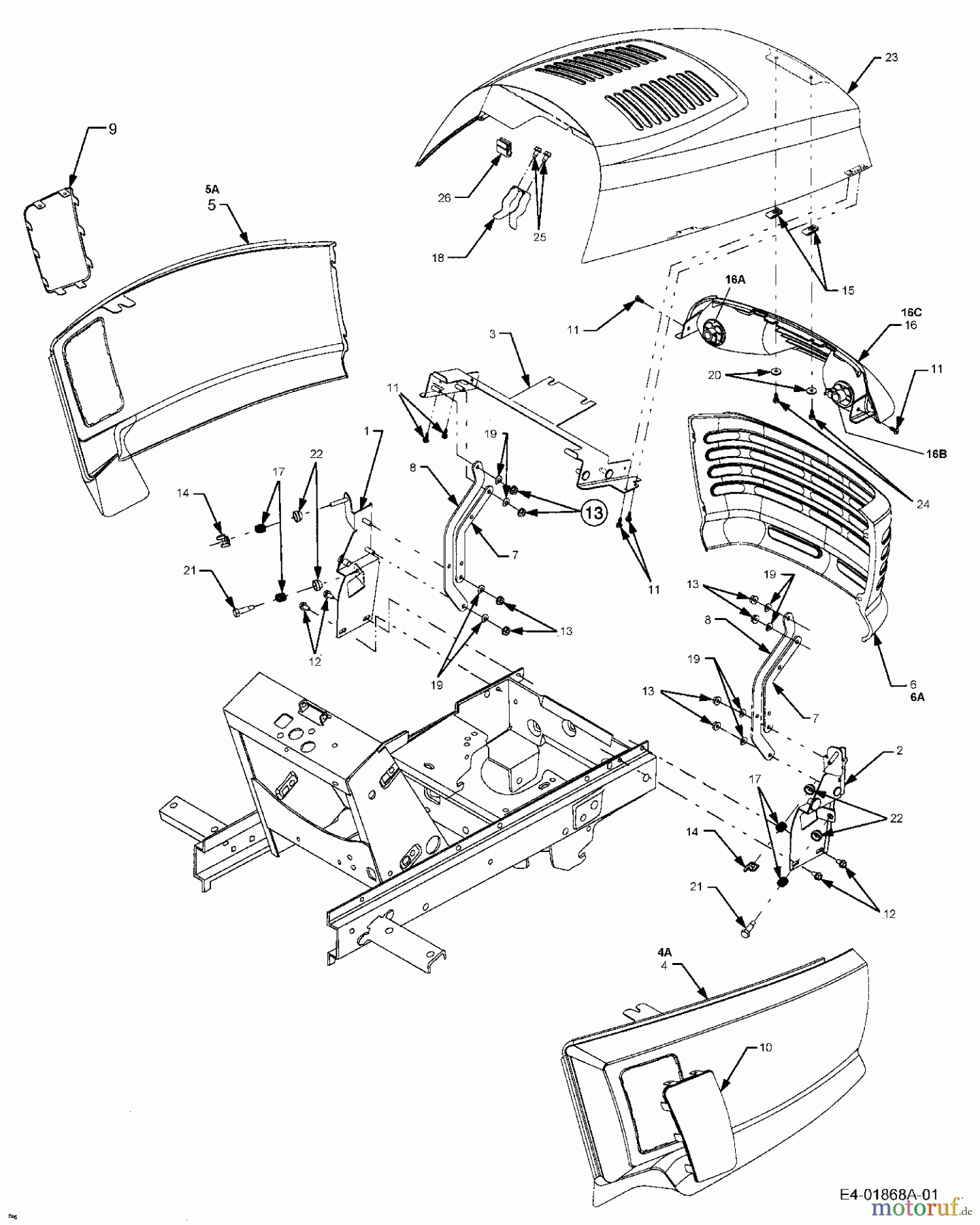

Engine hood Cub Cadet 14A-2D7-603 (2005)

Cub Cadet Garden tractors HDS 2205 14A-2D7-603 (2005) Engine hood Cub Cadet
PosizioneArticolo numeroDescrizione
1 603-0211BRACKET,GRILLE LH
2 603-0212BRACKET,GRILL RH
3 603-04191
4 703-2396SIDE FRAME RIGHT
4A 777X40079PROTECTION STRIP
5 703-2397SIDE PANEL CART EXTENSION LH
5A 777X40079PROTECTION STRIP
6 703-2398GRILLE
6A 777I20314LABEL
7 703-2465LINK,SHORT HOOD
8 703-2466ALINK, LONG HOOD
9 703-2495SCREEN,LH PANEL
10 703-2496SCREEN RIGHT
11 710-0351SCR:B:#10-16:0.5":PANPHI
12 Cub Cadet SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
13 Cub Cadet NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
14 Cub Cadet WING NUT712-0397WING NUT
15 726-0139SPEED NUT 10Z U-TYPE
16 625-04001AHEADLIGHT ASM FRONT:CUB LT/GT
16A Cub Cadet LAMP:#1156725-0963LAMP:#1156
16B Cub Cadet SOC:LAM: 1/4 TURN725-1649SOC:LAM: 1/4 TURN
16C 777X41348LBL:REFL:CUB LT / GT
17 732-0334COMPRESSION SPRING
18 732-1178Spring
19 736-0175SPRING WASHER:.265 x.562 x.025
20 736-0400WASH:FLAT:.194 x .62 x .063
21 738-3141BOLT,SHOULDER
22 748-3055BUSHING, TAPERED
23 759-3747BSHROUD
24 710-0436SCR:B:#10-16:0.625:HEX
25 710-1005SCR:B:1/4-14:0.500:HXINDWSH
26 723-3061-19
