Cub Cadet HDS 2205 14A-2D7-603 (2005) Fender, Running board Ricambi

• Start
• Cub Cadet
• Garden tractors
• HDS 2205
• 14A-2D7-603 (2005)
• Fender, Running board

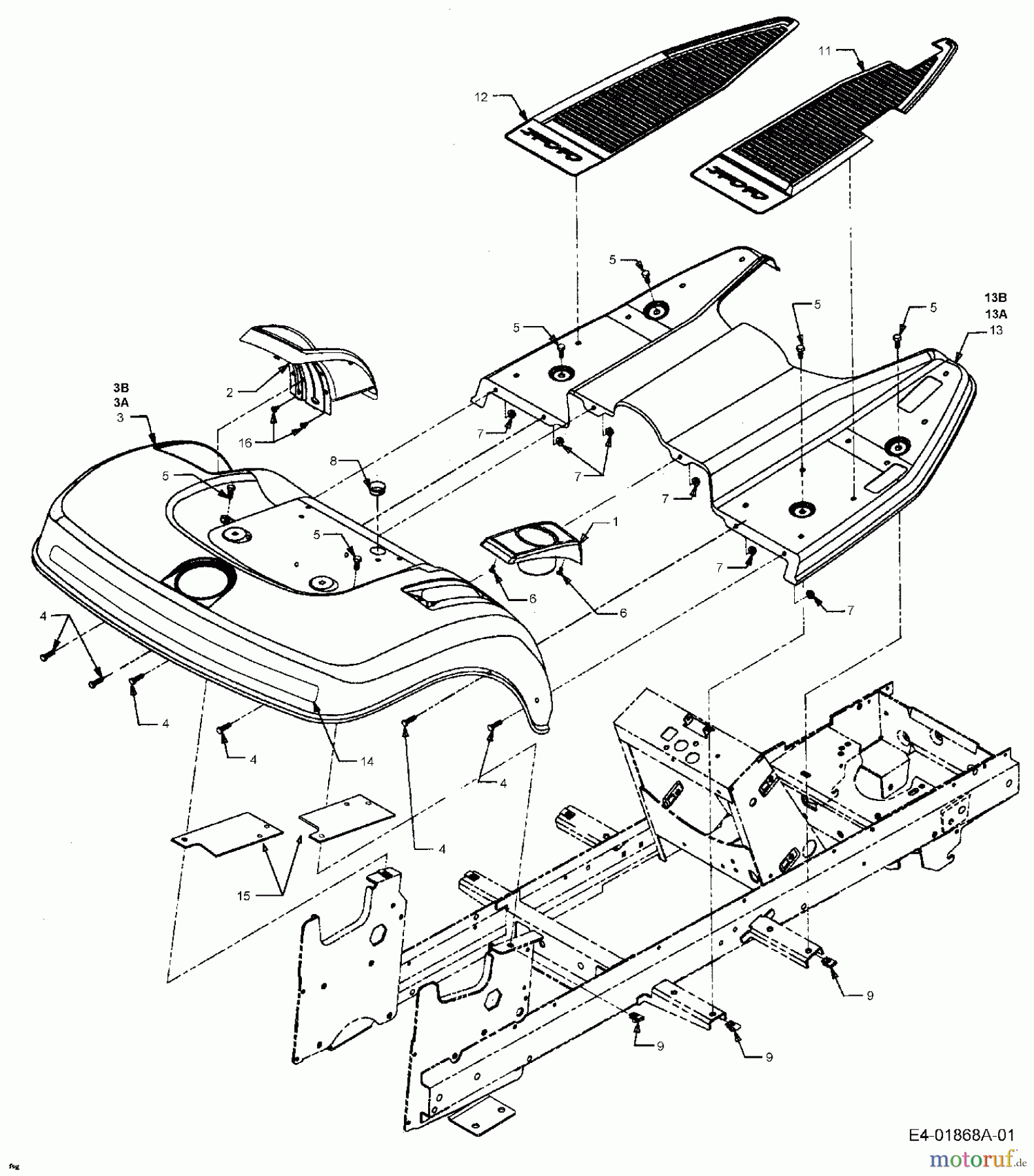

Fender, Running board 14A-2D7-603 (2005)

Posizione		Articolo numero	Descrizione
1		731-3212A	HOLDER-CUP
2		631-3002	COVER-TRANSMISSION
3		703-05570
3A		777D08642	LABEL-LH REFLECTOR 2/3/5/6000
3B		777D08643	LABEL-LH REFLECTOR 2/3/5/6000
4		710-0751	HHCS:1/4-20:.620:GR5:STD
5		710-1260A	SCR:TT:5/16-18:0.750:HXINDWSH
6		710-1268	HEX. SCREW:B:#10-16:0.375
7		712-3027	NUT:FLGLK:1/4-20:GRF
8		723-3042	bush
9		726-0211	NUT:U:5/16-18
11		735-3046A	PAD-FOOT RH
12		735-3047	PAD-LH FOOT
13		703-2279	RUNNING BOARD
13A		777S30170	LABEL
13B		777S32494	LABEL
14		777D08321
15		703-2628	PLATE
16		710-0224	SCR:AB:#10-16:0.500:HXINDWSH
