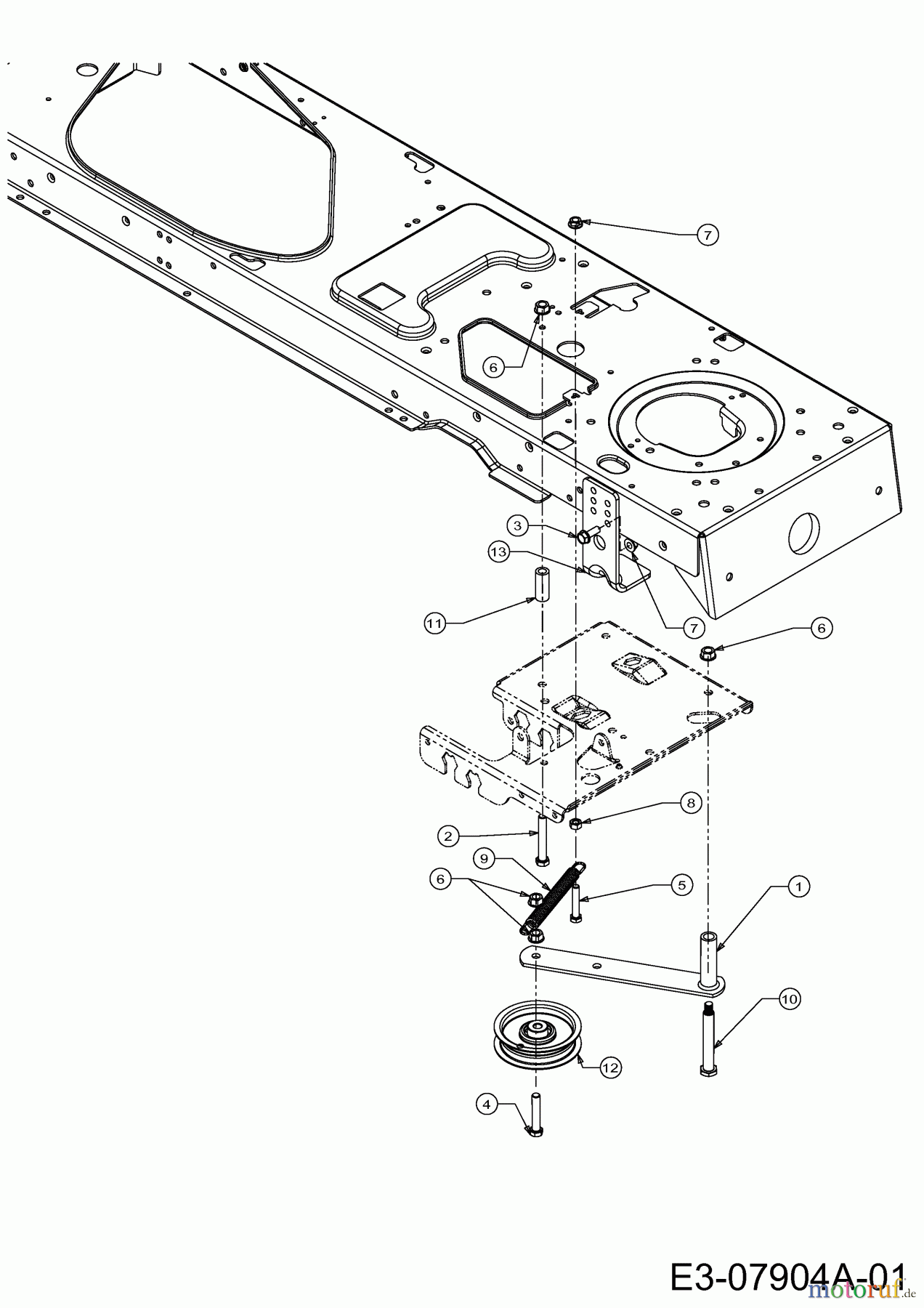

Tension pulley deck engagement 13AX604G643 (2002)

Posizione		Articolo numero	Descrizione
1		683-0301	BRKT ASM: IDLER LT
2		710-0859	SCREW HHCS:3/8-16:2.50:GR5:STD
3		710-1238	SCR.HHWSH:5/16-18:.875:GR5:STD
4		710-3144	HHCS:3/8-16:2.00:GR5:STD
5		710-3180	HHCS:5/16-18:1.75:GR5:STD
6		712-0431	NUT:FLGLK:3/8-16:GRF:TOP LK
7		712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
8		712-3010	NUT:HEX:5/16-18:GR5
9		732-0978	SPR-EXTENSION .62 ODx5.622 LG
10		738-0982	SCR:SHLDR:.498 X 3.245:3/8-16
11		748-0415B	SPACER
12		756-0627B	PUL:IDLR:3.50 DIA
13		783-0891B	BRKT:DECK:UP STOP
