MTD CB 460 ST 901B467S001 (1995) Basic machine Ricambi

Basic machine 901B467S001 (1995)

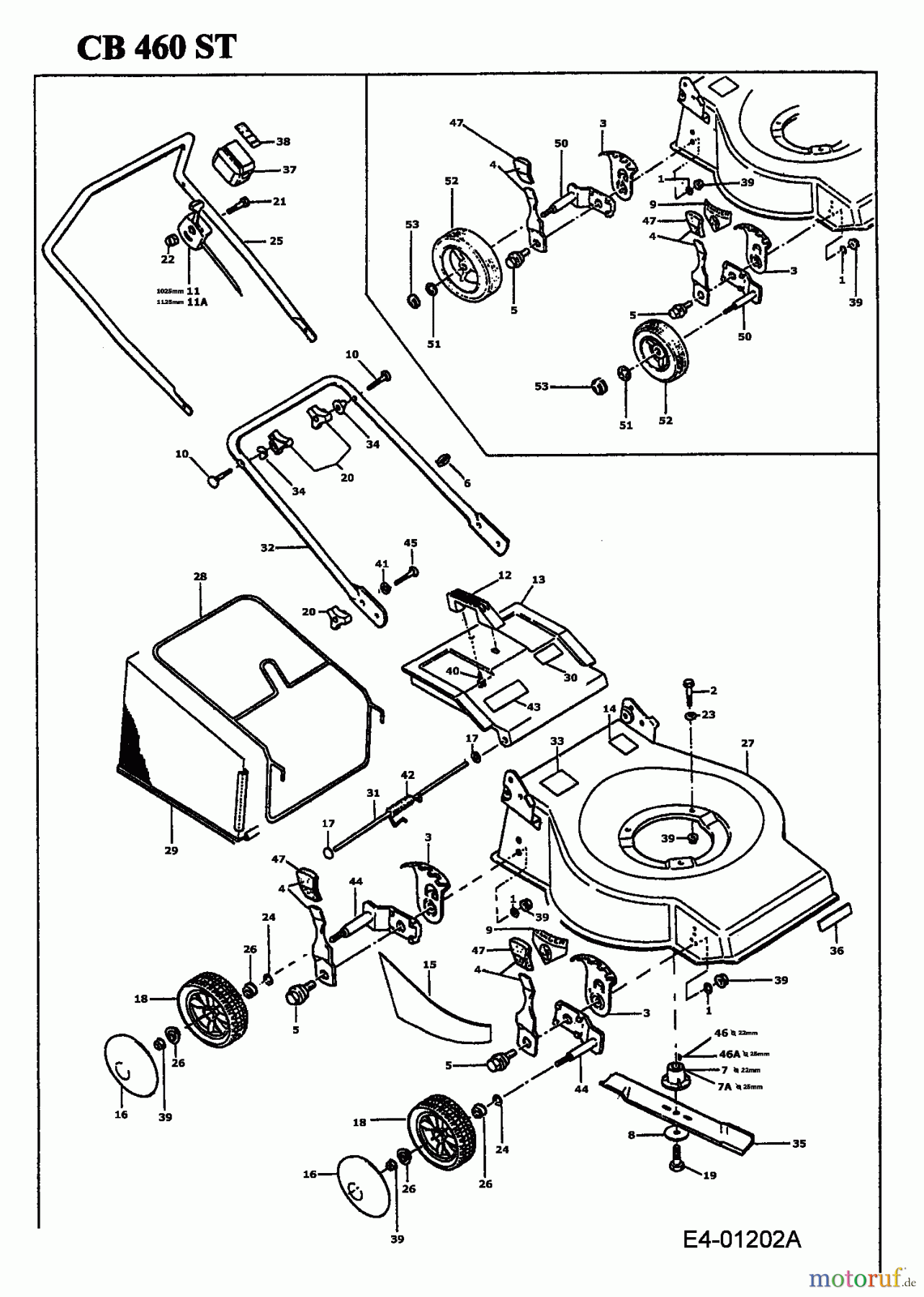

MTD Petrol mower CB 460 ST 901B467S001 (1995) Basic machine
PosizioneArticolo numeroDescrizione
1 CSM032013WASHER-SPRING BELL
2 CSM037020Screw
3 CSM040011HEIGHT ADJ
4 CSM040012ANCHOR-SPRING
5 CSM040018SCREW-TAP
6 CSM042032CLIP
7 CSM042050ADAPTER
7A CSM042050.3HINGE PIN
8 CSM042052LOCK WASHER
9 CSM042054LABEL
10 CSM042058SCREW-TRUSS MACH
11 CSM042113CABLE
11A CSM054022BOWDEN CABLE
12 CSM046204HANDLE GRIP
13 CSM043009EJECTION FLAP
14 CSM043069LABEL
15 CSM043070LABEL
16 CSM043115HUB-CAP
17 CSM045004WIRE HOOK RECTANGULAR
18 CSM046010.2WHEEL
19 CSM046013SCREW
20 CSM046032KNOB-NUT
21 CSM046036Screw
22 CSM046037NUT
23 CSM046041washer
24 CSM046048WASHER-SPRING BELL
25 CSM046078HANDLE
26 CSM046108BEARING-THRUST
27 CSM046201HOUSING
28 CSM046211FRAME-CATCHER-FR
29 CSM046216GRASS BAG
30 CSM046235LABEL
31 CSM046256DEFLECTOR AXLE
32 CSM046280Lower link
33 CSM046292LABEL
34 CSM046301WASHER-STOP
35 CSM047001BLADE
36 CSM047018LABEL
37 CSM047019HOUSING
38 CSM047085LABEL
39 CSM047113NUT
40 CSM047122SCREW
41 CSM047320washer
42 CSM047823SPRING
43 CSM047831LABEL
44 CSM090013BRACKET
45 CSM090016SCREW-TRUSS MACH
46 CSM046049KEY WOODRUFF
46A CSM047358KEY WOODRUFF
47 CSM040016ANCHOR-SPRING
50 CSM040013ASS`Y, AXLE FRAME
51 CSM042008SCHUTZSCHEIBE
52 CSM042056WHEEL
53 CSM042089HUB CAP
