MTD 550 25A-550G678 (2005) Wheels Ricambi

Wheels 25A-550G678 (2005)

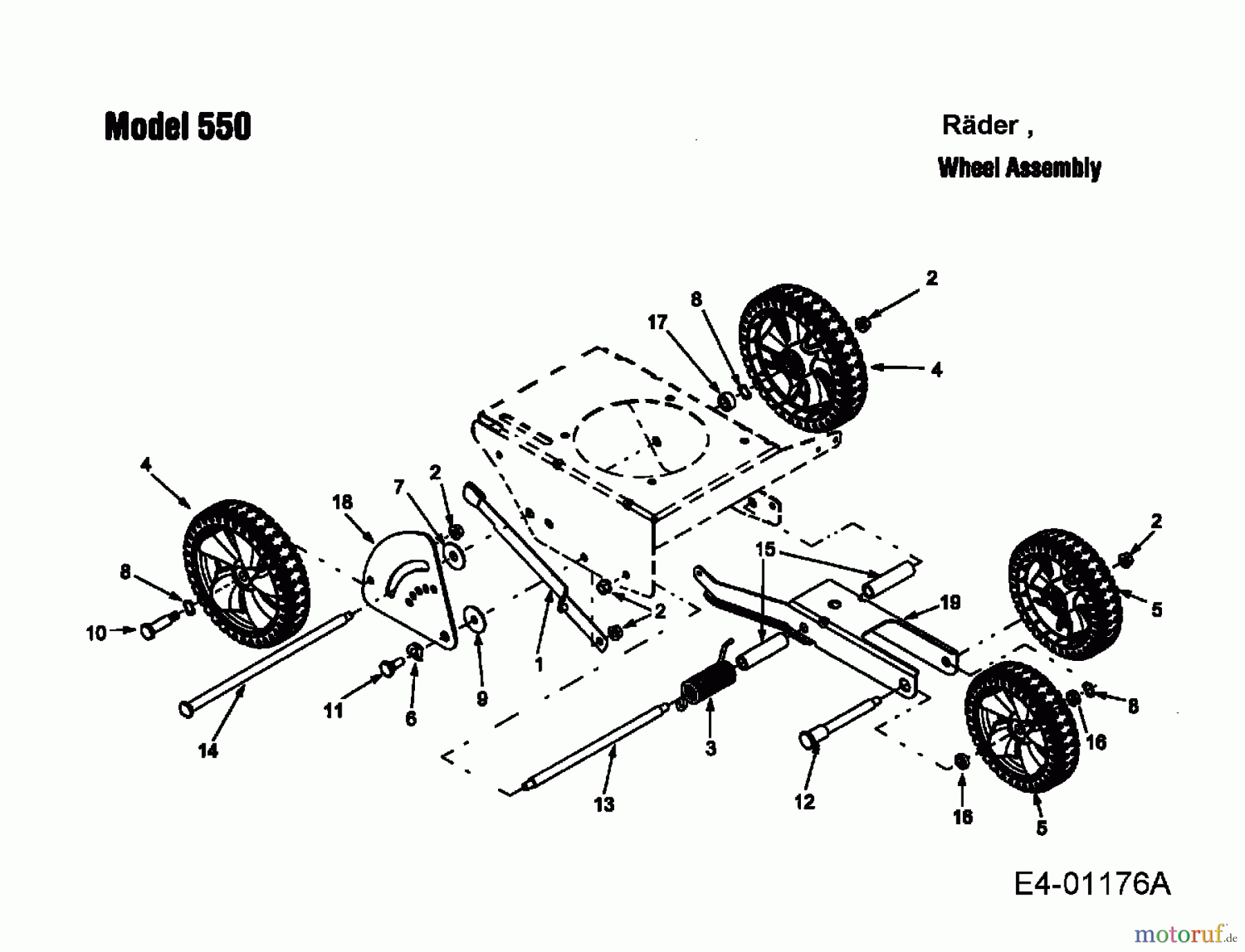

MTD Edger 550 25A-550G678 (2005) Wheels
PosizioneArticolo numeroDescrizione
1 687-02022PANEL-SELECT 5SP
2 MTD NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
3 732-04045SPRING-EXTENSION
4 734-1987USE 734-1510B
5 734-1988WHEEL COMP. 7X1.8
6 736-0182WASHER:SPR:.500 x 1.00 x.022
7 736-0208WASHER-FL
8 736-0232WASH:WAVE:.531 x .781 x .013
9 736-0234WASH:FL:.385 x 1.500 x .060
10 738-0213SCREW-SHLD
11 MTD SCR:SHLDR:.500x.270:3/8-16738-0380SCR:SHLDR:.500x.270:3/8-16
12 738-04036
13 738-04037SHOULDER SCREW
14 738-04041
15 750-04129SPACER .525X.775
16 750-04165
17 750-0664SPACER
18 781-0100BRKT:INDEX:DECK LIFT
19 787-01074
