MTD 520 25A-520G678 (2007) Blade drive Ricambi

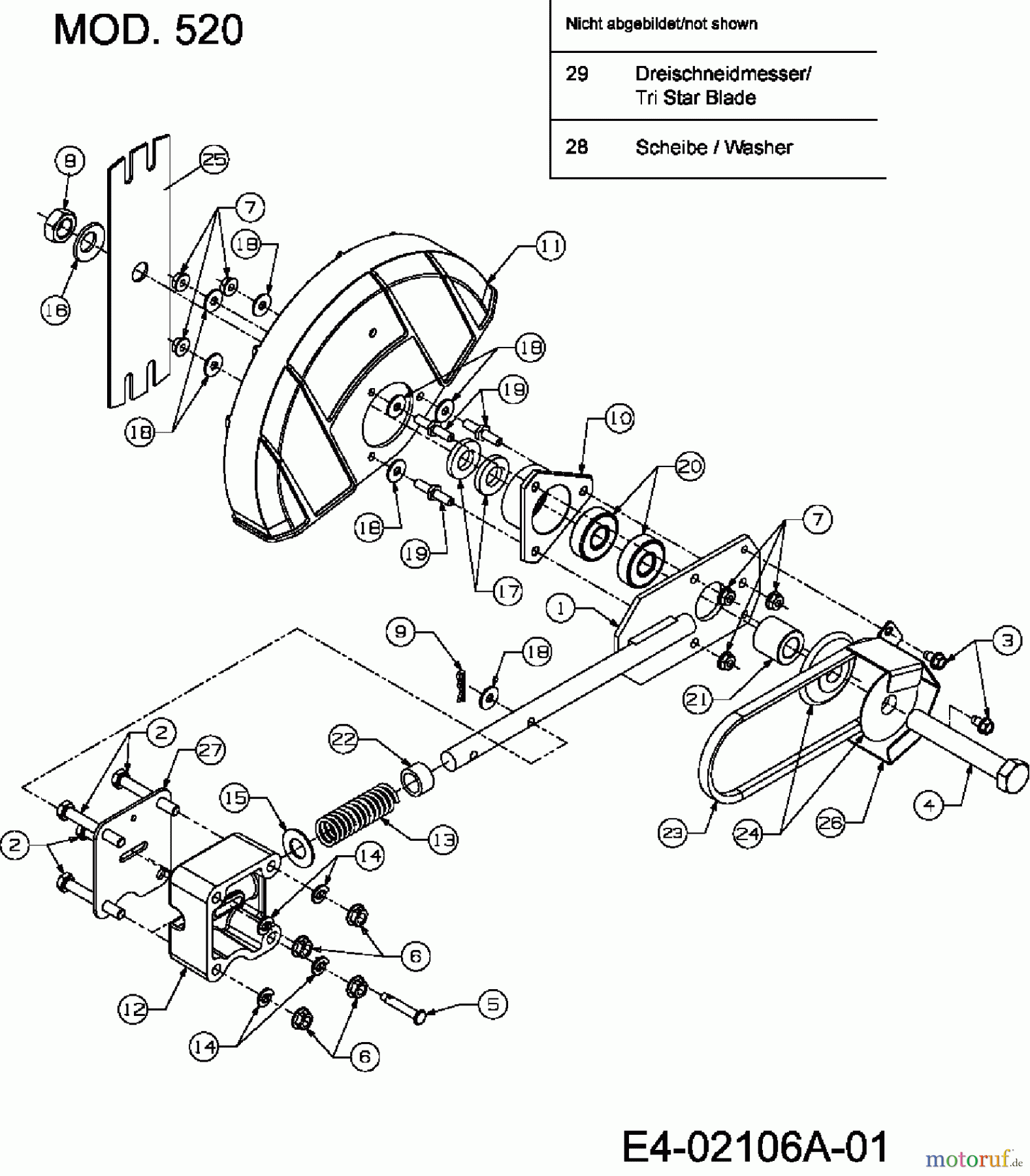

Blade drive 25A-520G678 (2007)

MTD Edger 520 25A-520G678 (2007) Blade drive
PosizioneArticolo numeroDescrizione
1 687-02019PLATE ASSY. - BLADE
2 710-0395SCRE.HHCS:5/16-18:2.25:GR2:STD
3 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
4 710-1143ASCREW-HEX DH 5/8-18X4.0LG
5 MTD PIN-CLEVIS:Ò.250 x 1.53711-1017PIN-CLEVIS:Ò.250 x 1.53
6 MTD NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
7 MTD NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
8 712-3056NUT:JAM:5/8-18:GR5
9 MTD PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
10 MTD CUP:BRG718-04012CUP:BRG
11 753-05727GUARD EDGER BLADE
12 731-04207BLOCK-BEARING
13 732-04169spring
14 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
15 MTD FL-WASH .640 IDX1.24 OD X .06736-0187FL-WASH .640 IDX1.24 OD X .06
16 736-0317WASH:BLVL:.630x1.250x.180
17 736-04088FLAT WASHER .635
18 736-3090FL.WASHER:.260 X .720 X .060
19 738-04025PIN
20 MTD BRG:BALL:.625x40x12:6203:DS741-0524BRG:BALL:.625x40x12:6203:DS
21 750-04105SPACER .63X1.12X1.06
22 750-0547SPACER
23 MTD V-BELT754-04032BV-BELT
24 756-0449PULLEY
25 MTD BLADE781-0080BLADE
26 781-0427GUARD-BELT
27 787-01075637PLATTE ASSY.- CLOSURE
28 736-04088FLAT WASHER .635
29 MTD STAR BLADE781-0748STAR BLADE
