MTD 475 24B-424P678 (2013) Chipper chute Ricambi

• Start
• MTD
• Chipper
• 475
• 24B-424P678 (2013)
• Chipper chute

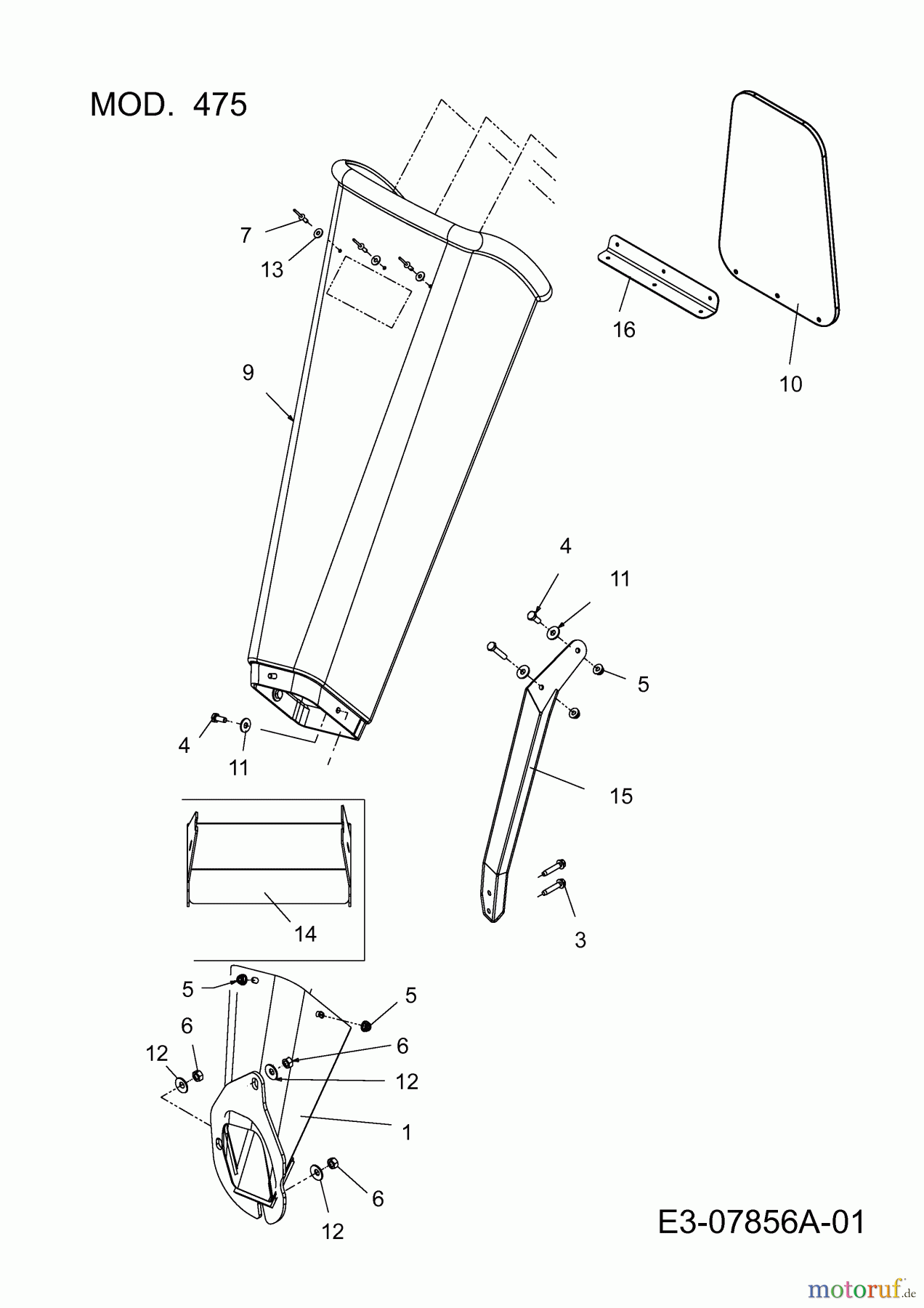

Chipper chute 24B-424P678 (2013)

Posizione		Articolo numero	Descrizione
1		681-04119638	CHUTE LOWER
3		710-0599	SCREW:TT:1/4-20:0.500:HXINDWSH
4		710-0751	HHCS:1/4-20:.620:GR5:STD
5		712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
6		712-3010	NUT:HEX:5/16-18:GR5
7		728-0175	RIV:POP: .156 DIA: #56
9		753-05094	KIT:CHIPPER SHRED CHUTE
10		735-05011	FLAP RUBBER
11		736-0173	WASH:FL:.28ID:.74OD:.063
12		736-0242	WASH:BLVL:.340 x .872 x .060
13		736-0400	WASH:FLAT:.194 x .62 x .063
14		781-04435638	PLT:ADAPTER:PAINTED MTD RED
15		781-04438638	BRKT:SUPT:CHUT:PAINTED MTD-RED
16		781-05005	PLATE FLAP
