Wolf-Garten UV-P/HM 3589680 Series A (1999) Verticutter housing Ricambi

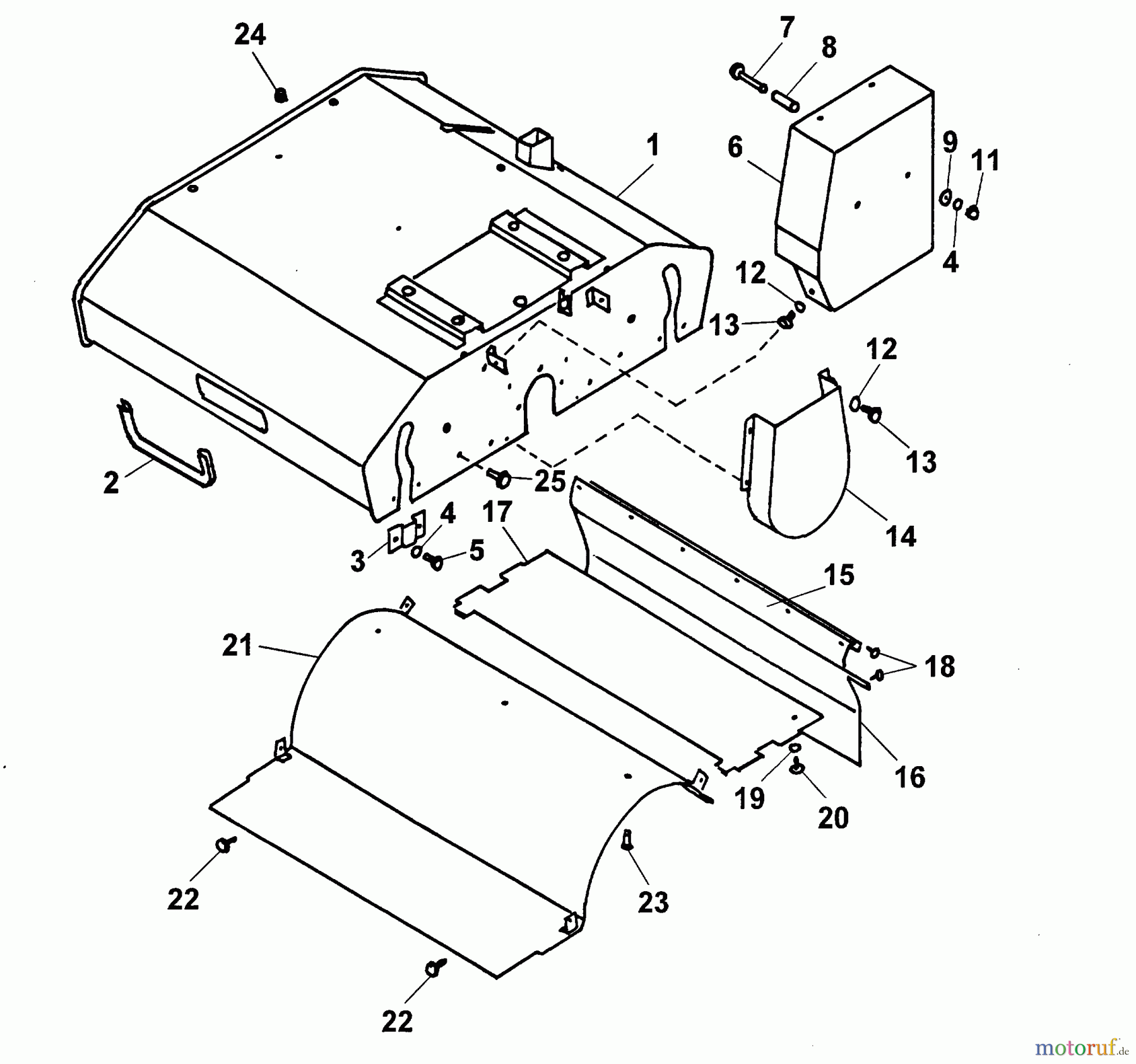

Verticutter housing 3589680 Series A (1999)

Wolf-Garten Petrol verticutter UV-P/HM 3589680 Series A (1999) Verticutter housing
PosizioneArticolo numeroDescrizione
1 3589036Chassis
2 3577215Kantenschutz (UV-P)
3 3589016Stützblech
4 0017908SPRING WASHER
5 0010383SCREW
6 3589312ABDECKUNG-KEILRIEMEN LACK.
7 0012266LINSZY.SCHR. M6X45-DIN85-4.8ZN
8 3589222BUSH
9 0017289DISC
10 0017908SPRING WASHER
11 0016602Nut
12 0017121WASHER A6,4
13 0015537Vis d'assemblage
14 3589035SCHUTZ-KEILRIEMEN KPL.
15 3589310LEISTE LACK.
16 3589309Gum
17 3589308BLECH-SCHUTZ LACK.
18 0015683LINSBL.SCHR. BZ 4,2X9,5-DIN798
19 0017119WASHER
20 0012912SCHR-TA TCBL KRE M 4+ 12 ST-
21 3589018Deflector-Muffler
22 0015639LINSBL.SCHR. B 3,5X9,5-DIN7981
23 0012864OVAL HEAD SCREW
24 0016310HEXAGON NUT M5
25 0015659SCREW
