Wolf-Garten UV-P/HM 3589680 Series A (1999) Cutter block Ricambi

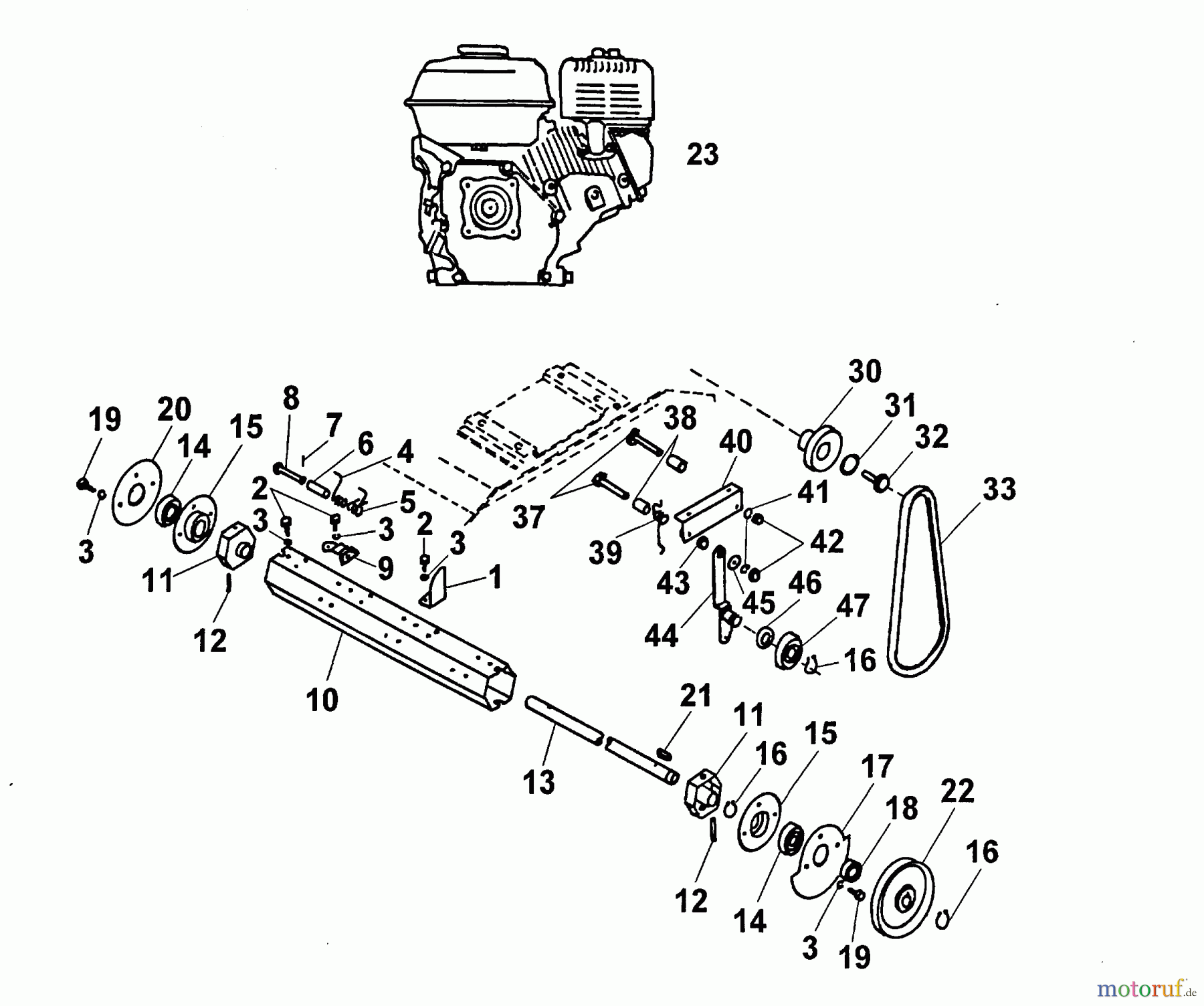

Cutter block 3589680 Series A (1999)

Wolf-Garten Petrol verticutter UV-P/HM 3589680 Series A (1999) Cutter block
PosizioneArticolo numeroDescrizione
2 Wolf-Garten HEX. HEAD SCREW0010366HEX. HEAD SCREW
3 0017908SPRING WASHER
*** 3589061BLADE-KIT
4 ***
5 ***
6 3577407TUBE
7 0018925LINCH PIN
*** Wolf-Garten 357905135790513579051
2 Wolf-Garten HEX. HEAD SCREW0010366HEX. HEAD SCREW
3 0017908SPRING WASHER
8 00182450018245
9 3579402Support
10 3589020Arbre
11 3577016TOPF-MITNEHMER KPL.
12 0018823SPANNSTIFT 5X28-D1481 F-ST
13 3589507CROSS SHAFT PIVOT PIN
14 00230940023094
15 3577510KAEFIG-KUGELLAGER
16 Wolf-Garten CIRCLIP0020018CIRCLIP
*** 3589051Arbre complet
3 0017908SPRING WASHER
16 Wolf-Garten CIRCLIP0020018CIRCLIP
17 3589519SCHEIBE-STUETZ LACK.
18 3589207washer
19 0011383Vis d'assemblage
20 3577402KAPPE-SCHUTZ
21 0028759PASSFEDER A 6X6X14-DIN6885
22 3589508V-Belt Pulley
23 2099000Motor
24 3589319Bush
25 0010336SCREW
26 3589524PLT:MT
27 0010336SCREW
30 3589522USE 756-0148
31 3589521Poulie de lancement
32 0010402SCREW
33 0039203Keilriemen 13 x 750 LI DIN2215
34 00103966KT-SCHR.M10X16-DIN933-8.8-ZN
35 0017909SPRING WASHER
36 0017123WASHER
37 0010391Vis d'assemblage
38 4288502BUSH(DOM/IND)
39 3589216Schenkelfeder (UV-P)
40 3589523Bracket
41 0017910Washer spring
42 0016213NUT
43 3589208ROHR-DISTANZ
44 3589019HEBEL-SPANN KPL.
45 0017291WASHER
46 0017129SCHEIBE A21-DIN125 ST ZN
47 0023223LAGER-RILKUG 6304-2Z D 625
