Wolf-Garten UV 32 B 3586080 Series C (2003) Verticutter housing Ricambi

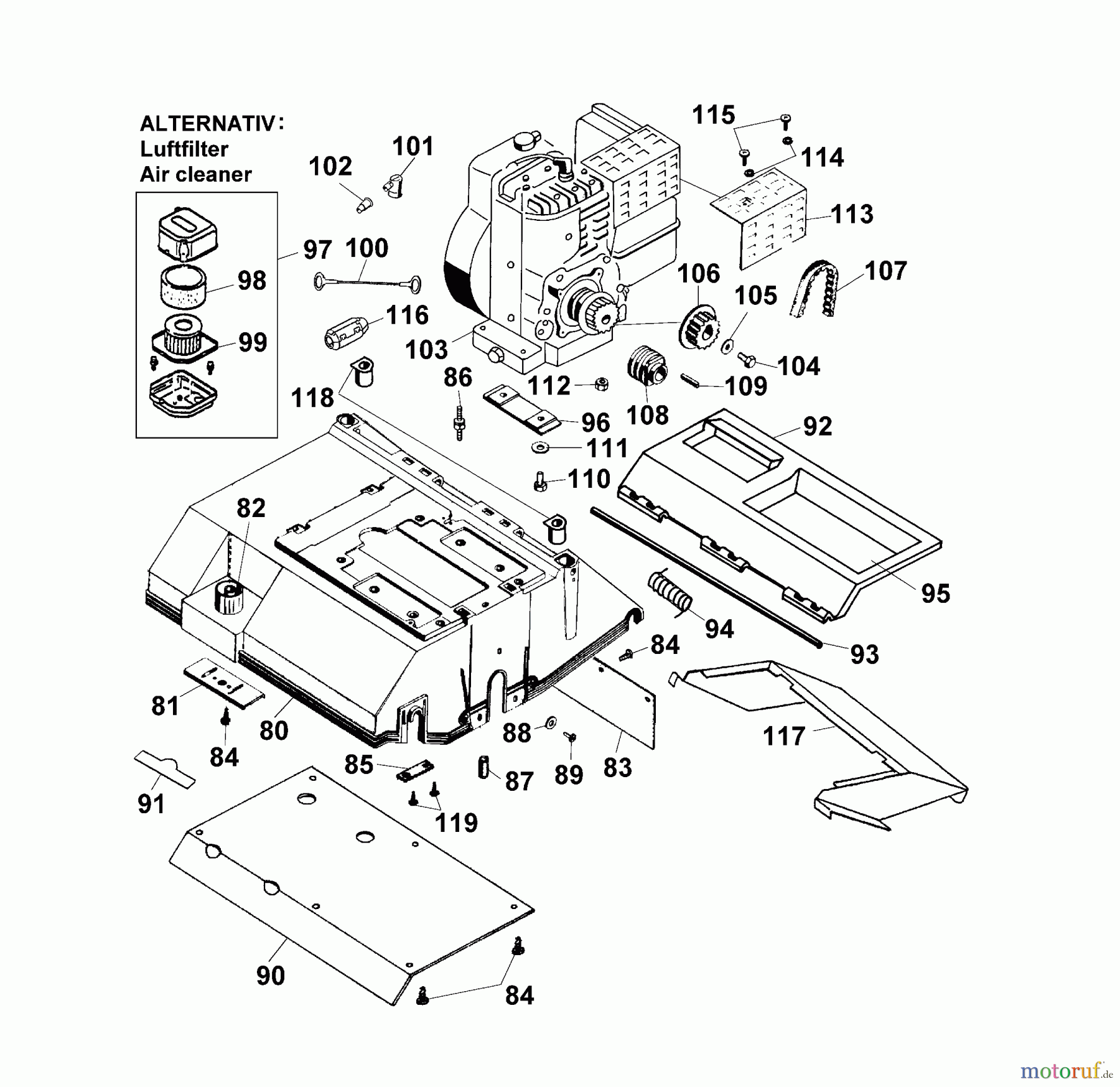

Verticutter housing 3586080 Series C (2003)
| Posizione | Articolo numero | Descrizione | |
| 80 | 3568320 | CHASSIS | |
| 81 | 3568010 | REINFORCING | |
| 82 | 3568011 | HANDWHEEL | |
| 83 | 3568206 | COVER | |
| 84 | 0012880 | SCREW | |
| 85 | 3568505 | CLIP | |
| 86 | 3586016 | NUT | |
| 87 | 3568209 | MOUNT-SHOCK | |
| 88 | 0017289 | DISC | |
| 89 | 0012874 | SCREW | |
| 90 | 3568112 | GUARD PANEL | |
| 91 | 0051145 | WOLF-GARTEN LABEL | |
| 92 | 3568325 | REAR FLAP | |
| 93 | 3568208 | PIVOT PIN | |
| 94 | 3585115 | TORSION SPRING | |
| 95 | 3586226 | Safety Label | |
| 96 | 3588209 | INSULATOR | |
| 97 | 2053051 | FILTER KPL. D2 11010-2223-9H | |
| 98 | 2053100 | FILTER-VOR D2 110132149 | |
| 99 | 2053101 | FILTERPATRONE D2 314503-1312A | |
| 100 | 3586206 | CABLE | |
| 101 | 1015300 | SPARK PLUG SOCKET | |
| 102 | 1015301 | CAP | |
| 103 | 2055000 | MOTOR | |
| 104 | 0010892 | SCREW | |
| 105 | 3576209 | WASHER | |
| 106 | 3588511 | CROWN GEAR | |
| 107 | 0039005 | TOOTHED BELT | |
| 108 | 3588204 | CONNECTOR | |
| 109 | 0028766 | FEATHER KEY | |
| 110 | 0010392 | SCREW | |
| 111 | 0017099 | Rondelle | |
| 112 | 0016312 | HEXAGON NUT M8 | |
| 113 | 3588212 | SCHUTZ-BER. | |
| 114 | 0017907 | SPRING WASHER | |
| 115 | 0015655 | SCREW | |
| 116 | 4933105 | HOLDER | |
| 117 | 3585121 | GUIDING PLATE | |
| 118 | 3568107 | bush | |
| 119 | 0012632 | SCREW | |
| *** | 0054328 | GEBR.ANW. UV32B , 12-SPRACHIG | |
