Wolf-Garten C 32 B 21A-165R650 (2010) Basic machine Ricambi

• Start
• Wolf-Garten
• Tillers
• C 32 B
• 21A-165R650 (2010)
• Basic machine

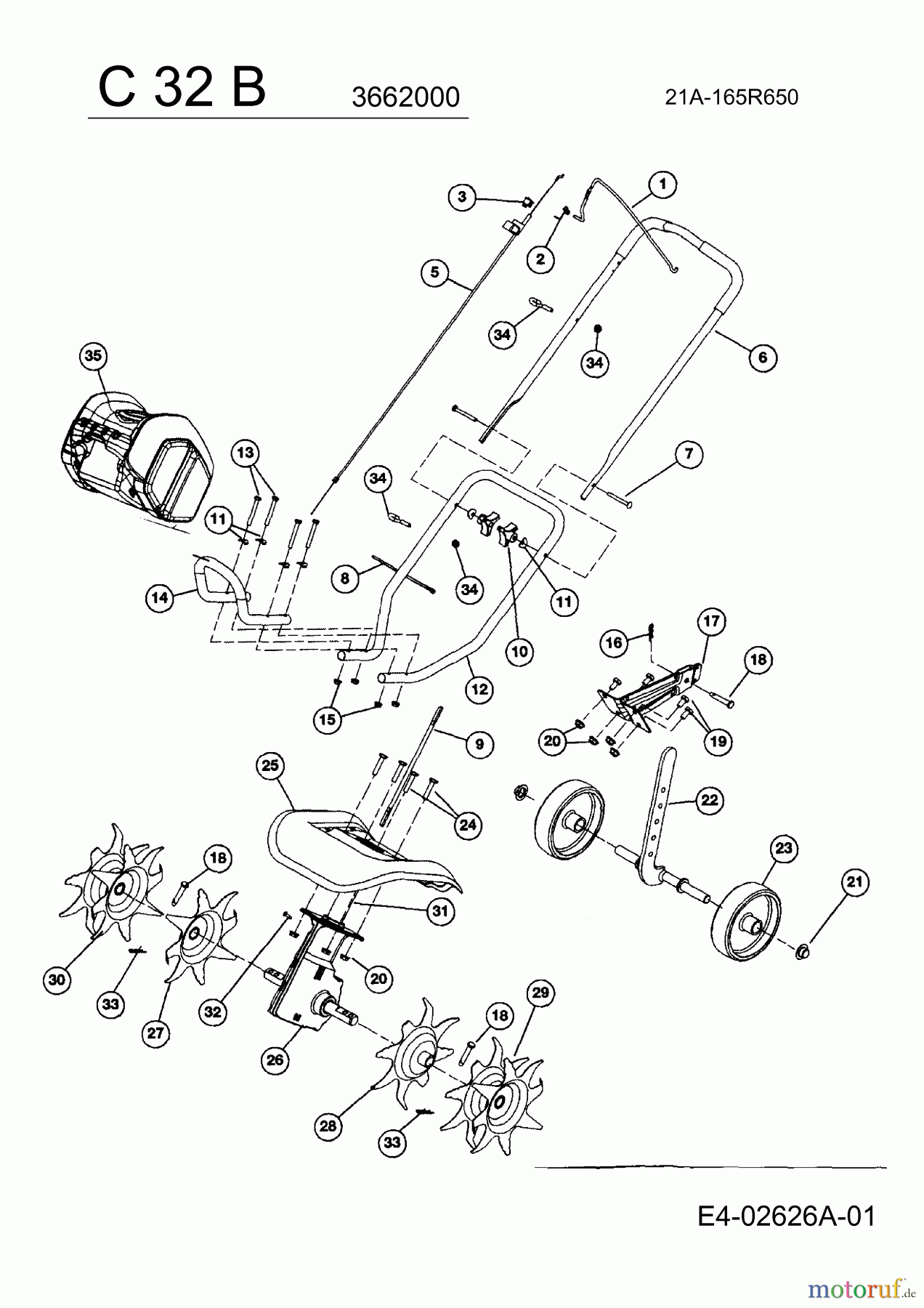

Basic machine 21A-165R650 (2010)

Posizione		Articolo numero	Descrizione
1		753-04042	POLE DRIVE TRIGGER
2		753-05940	SPRING-TORSION
3		791-182673	SWITCH-ON/OFF CULTV/EDGER
5		753-06318	THROTTLE CABLE
6		753-06319	UPPER HANDLE
7		791-182899	Screw
8		725-0157	CBL:TIE: 3/16 X .05 X 7.4
9		753-06005	SHAFT ASSY-WHL BRKT
10		791-182677	WING NUT
11		736-0451	WASH:SDL:.320 x.93 x.060
12		753-06320	LOWER HANDLE
13		753-06012
14		753-06321	HANDLE FRONT
15		712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
16		714-0104	PIN:COT:.072 DIA x 1.13 LG
17		753-04058	BRACKET ASSY
18		711-1017	PIN-CLEVIS:Ò.250 x 1.53
19		710-3013	HHCS:1/4-20:.50:GR5:STD
20		712-3027	NUT:FLGLK:1/4-20:GRF
21		753-04062
22		753-04063	ARM ASM-PIVOT
23		753-06322	WHEEL
24		6109	SCREW-HEX
25		753-06010	COVER
26		753-06063	GEARBOX ASSY.
27		753-05986	TINE RIGHT INNER
28		753-05987	TINE LEFT INNER
29		753-06015	TINE LEFT OUTER
30		753-06016	TINE RIGHT OUTER
31		753-06011	DRIVE HOUSING ASSY
32		791-180288	BOLT, RETAINER SLEEVE
33		753-06013	PIN-COTTER
34		753-05524	ROPE GUIDE
35		753-06008	WEIGHT BOX
