Blade, Blade adapter, Engine 7098005 Series A, B (2003)

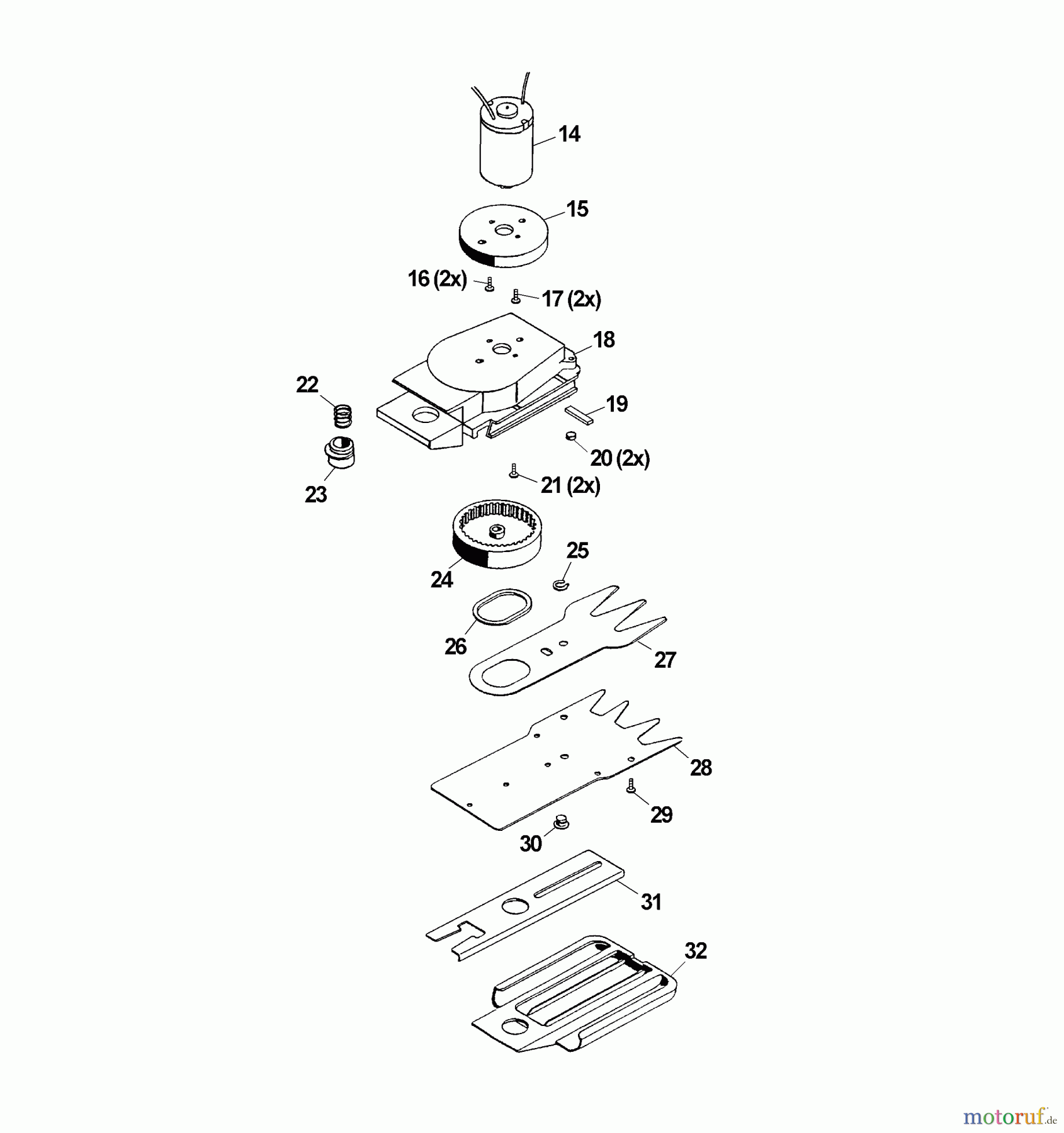

Wolf-Garten Battery shears Accu 40 Standard 7098005 Series A, B (2003) Blade, Blade adapter, Engine
PosizioneArticolo numeroDescrizione
14 7098017MOTOR
15 7098312DRIVE END CAP
16 0012229CHEESE HEAD SCREW
17 0012888SCREW
18 7098016GEARING CASE
19 7090213SEAL
20 7090200GUM
21 0012229CHEESE HEAD SCREW
22 7098200COMPRESSION SPRING
23 7098201PUSH BUTTON
24 7093501ECCENTRIC
25 0022408LOCK WASHER
26 Wolf-Garten SLIDE RING RV-E67080214SLIDE RING RV-E6
30 7088212BOLT
*** 7096060VASELINE
*** 7093219BLADE PROTECTION
*** 7090052M 8 REPLACEMENT BLADE
31 7099301ROUTING
32 7098304SKID
*** 7081078CHARGER
*** 0054230INSTRUCTION MANUAL
*** 7093223Label
