Spareparts

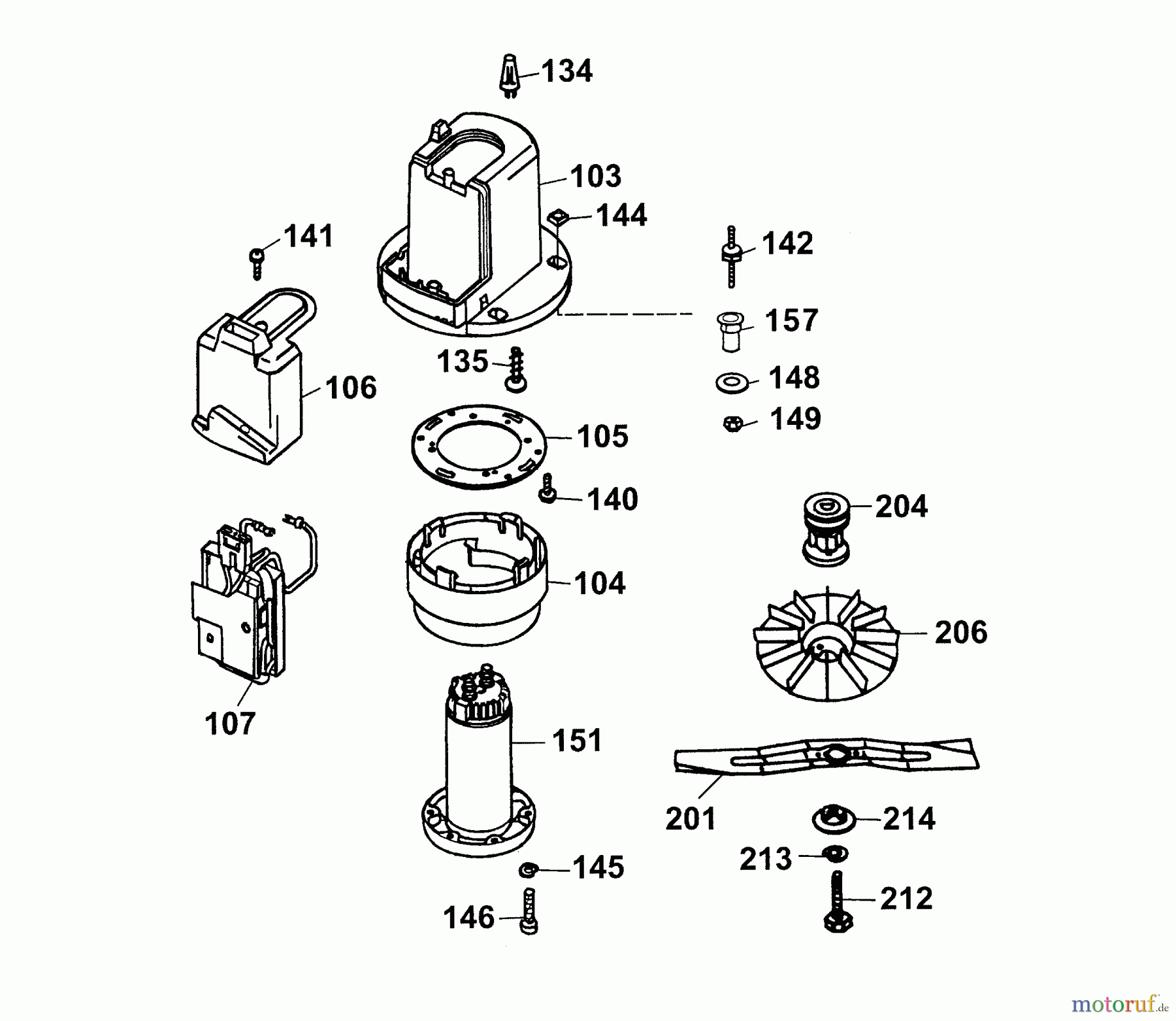

Electric motor, Electric parts, Blade 4044000 Series B (2003)
| Posizione | Articolo numero | Descrizione | |
| 103 | 4332302 | MOTOR HOLDER | |
| 104 | 4332111 | 32"DEEP DECK SKIRT | |
| 105 | 4947303 | RING | |
| 106 | 4947307 | COVER | |
| 107 | 4332066 | MOTOR ELECTRONIC | |
| 134 | 4332313 | CENTERING CONE | |
| 135 | 0012885 | SCREW | |
| 140 | 0012890 | SCREW | |
| 141 |  | 0012630 | SCREW |
| 142 | 4042170 | STUD BOLT | |
| 144 | 0016409 | Nut | |
| 145 | 0017908 | SPRING WASHER | |
| 146 | 0012610 | SCREW | |
| 148 | 0017111 | WASHER | |
| 149 | 0016312 | HEXAGON NUT M8 | |
| 151 | 1055060 | MOTOR | |
| 157 | 4601312 | DISTANCE BUSH | |
| 201 | 4042095 | 4042095 | |
| 204 | 4942402 | DRIVING PULLEY | |
| 206 | 4942300 | FAN | |
| 212 | 0010259 | SCREW | |
| 213 | 0017909 | SPRING WASHER | |
| 214 | 4333401 | COUPLING DISC | |
