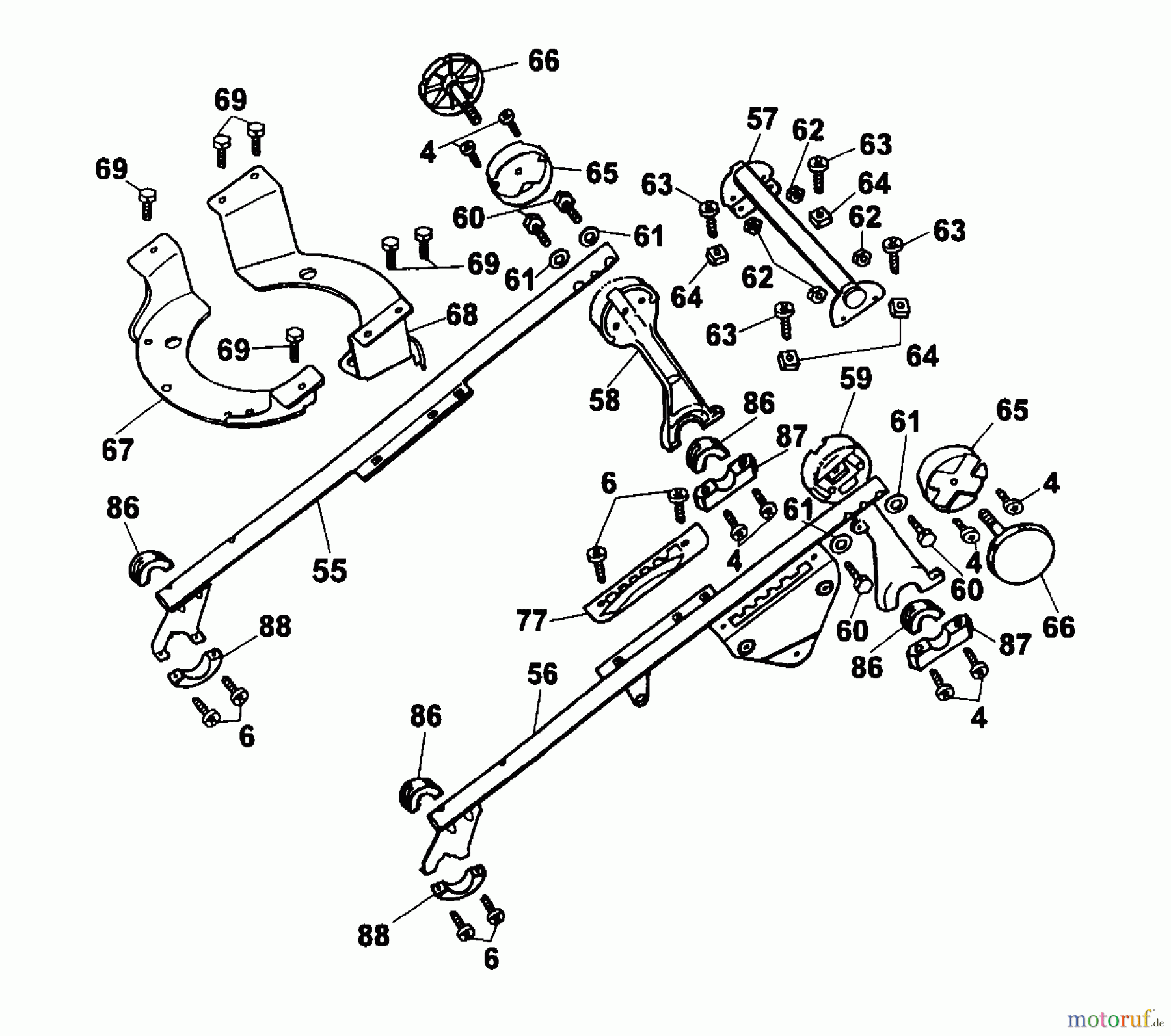

Wolf-Garten Concept 43 AC 4332000 Series A (2001) Frame Ricambi
Frame 4332000 Series A (2001)
| Posizione | Articolo numero | Descrizione | |
| 4 | 0012607 | SCREW | |
| 6 | 0012605 | SCREW | |
| 55 | 6450010 | FRAME | |
| 56 | 6450012 | FRAME | |
| 57 | 6450014 | PIPE | |
| 58 | 6450100 | SUPPORT | |
| 59 | 6450102 | SUPPORT | |
| 60 | 0010313 | SCREW | |
| 61 | 6150182 | DISC, CURVED | |
| 62 | 0016311 | NUT M6 | |
| 63 | 0012831 | SCREW | |
| 64 |  | 0016405 | NUT |
| 65 | 6450188 | FIXING CASE | |
| 66 | 4317010 | HANDWHEEL | |
| 67 | 6450112 | MOTOR SUPPORT | |
| 68 | 6450114 | MOTOR SUPPORT | |
| 69 | 0010386 | SCREW | |
| 77 | 6450136 | CRANK | |
| 86 | 6450309 | BUSHING | |
| 87 | 6430323 | SHELL | |
| 88 | 6450305 | SHELL | |
