Spareparts

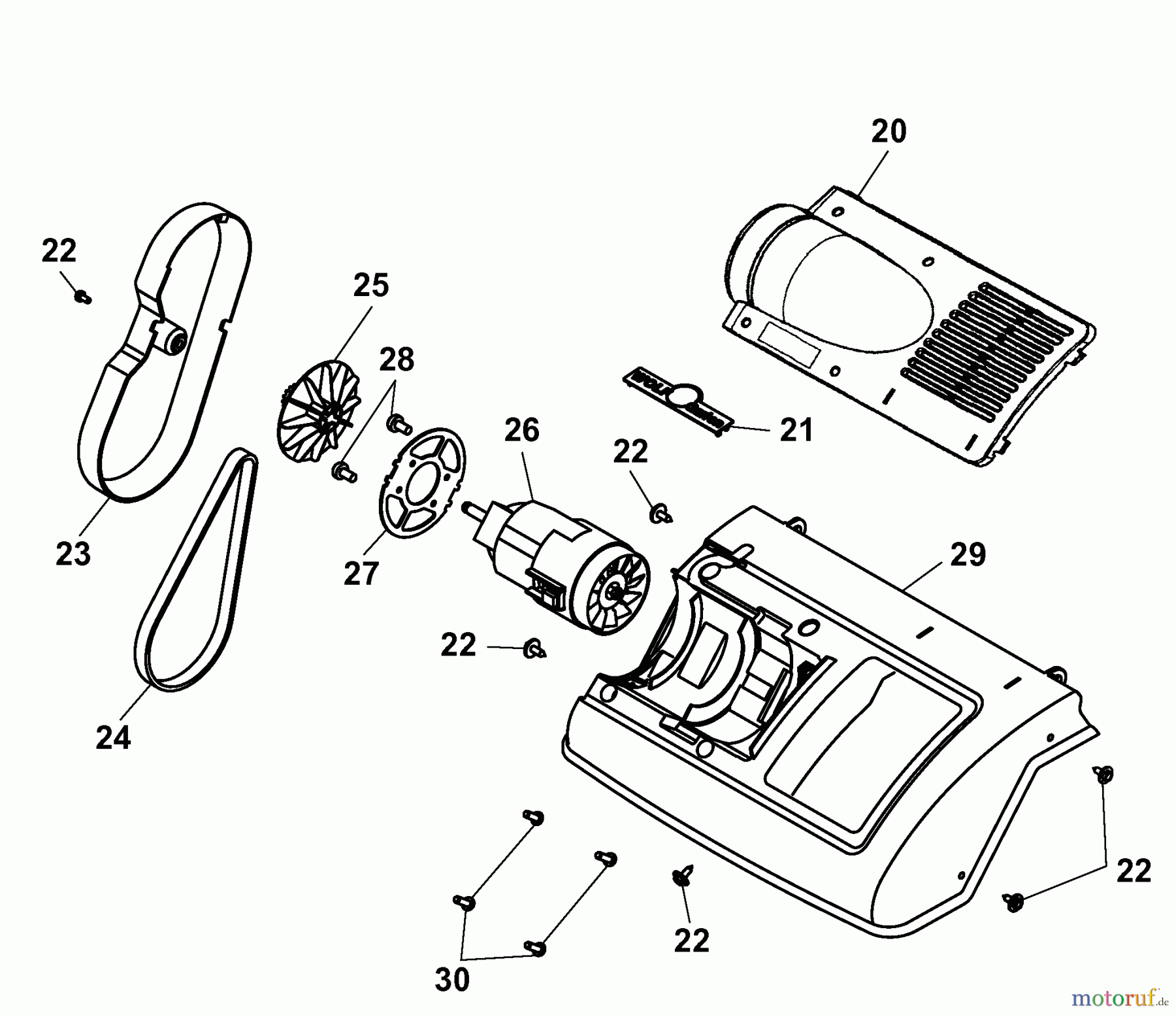

Electric motor, Belt 3620006 Series A (2006)
| Posizione | Articolo numero | Descrizione | |
| 20 | 3620304 | MOTOR COVER | |
| 21 | 0051115 | WOLF-GARTEN-MARKE (103MM) | |
| 22 | 0015961 | SHEET METAL SCREW WITH WASHER | |
| 23 | 3620305 | BELT COVERING | |
| 24 |  | 0039009 | BELT FOR UV28EV |
| 25 | 3615315 | MOTOR/GEAR FAN | |
| 26 | 1121060 | MOTOR M.TEMP.500W FISE (4,8 AN | |
| 27 | 3615150 | Motor Holder | |
| 28 | 0012854 | SCREW | |
| 29 | 3620300 | CHASSIS-COVERING | |
| 30 |  | 0012630 | SCREW |
