Rotor, Wheels 3620003 Series F (2007)

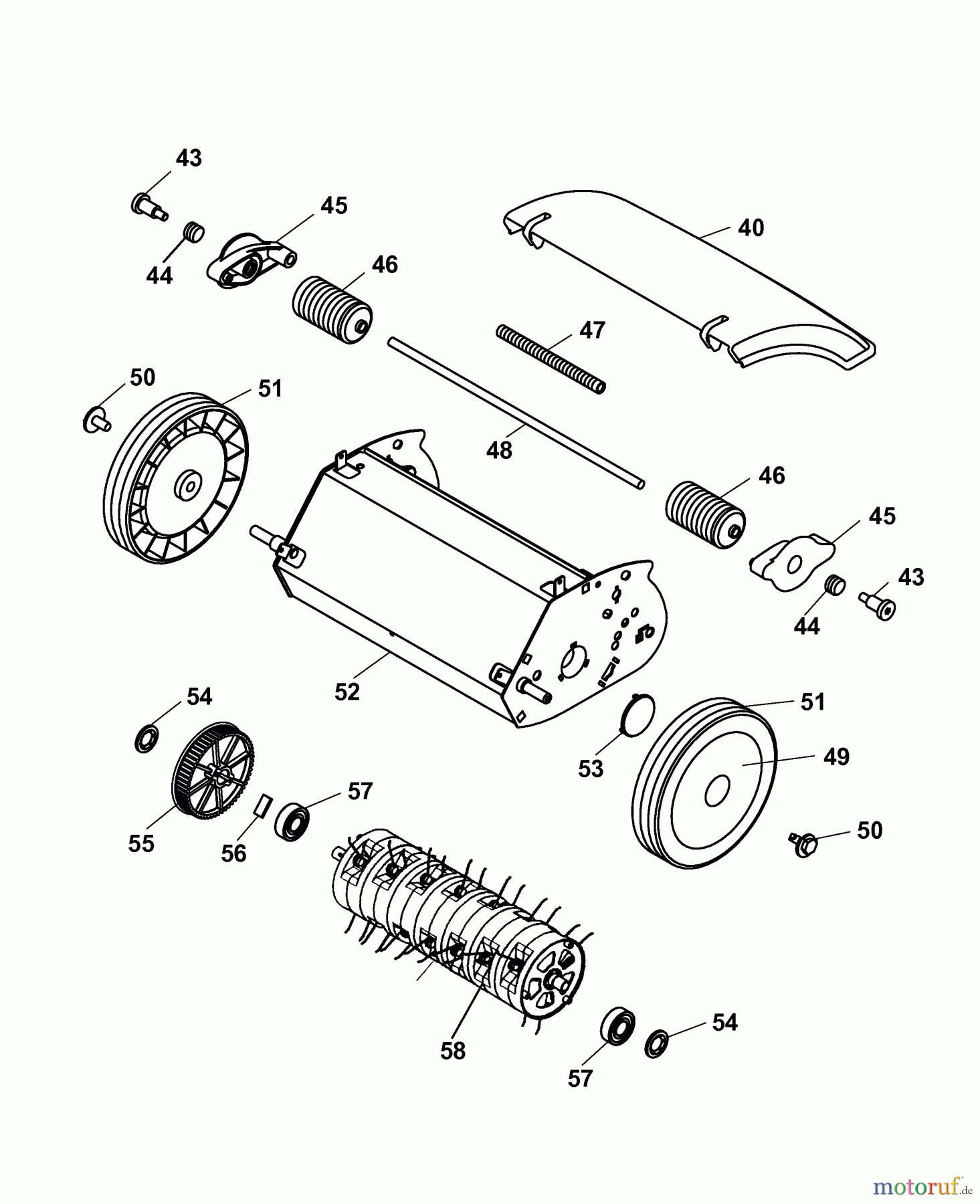

Wolf-Garten Groomer UL 33 E 3620003 Series F (2007) Rotor, Wheels
PosizioneArticolo numeroDescrizione
40 3620303REAR FLAP
43 3620112COLLAR SCREW
44 Wolf-Garten COMPRESSION SPRING7031405COMPRESSION SPRING
45 3620312ADJUSTING DEVICE
46 3620308ROLLER
47 3620309PROTECTING TUBE
48 3620118Tige ronde
49 4936535HUB CAP, FOR 170MM DIA. WHEEL,
50 Wolf-Garten SCREW0010893SCREW
51 3630058WHEEL 200 MM DIA.
52 3620020Chassis
53 4026319COVER
54 Wolf-Garten CIRCLIP D=15 JETPRESS-NR.TRW00020701CIRCLIP D=15 JETPRESS-NR.TRW0
55 3615316toothed pulley
56 3620113DRIVER
57 0023148BEARING
58 3620055Roller Complete
*** Wolf-Garten REPLACEM. SPRINGS UV-EFF3620095REPLACEM. SPRINGS UV-EFF
