Electric motor, Rear flap 4030000 Series A (2000)

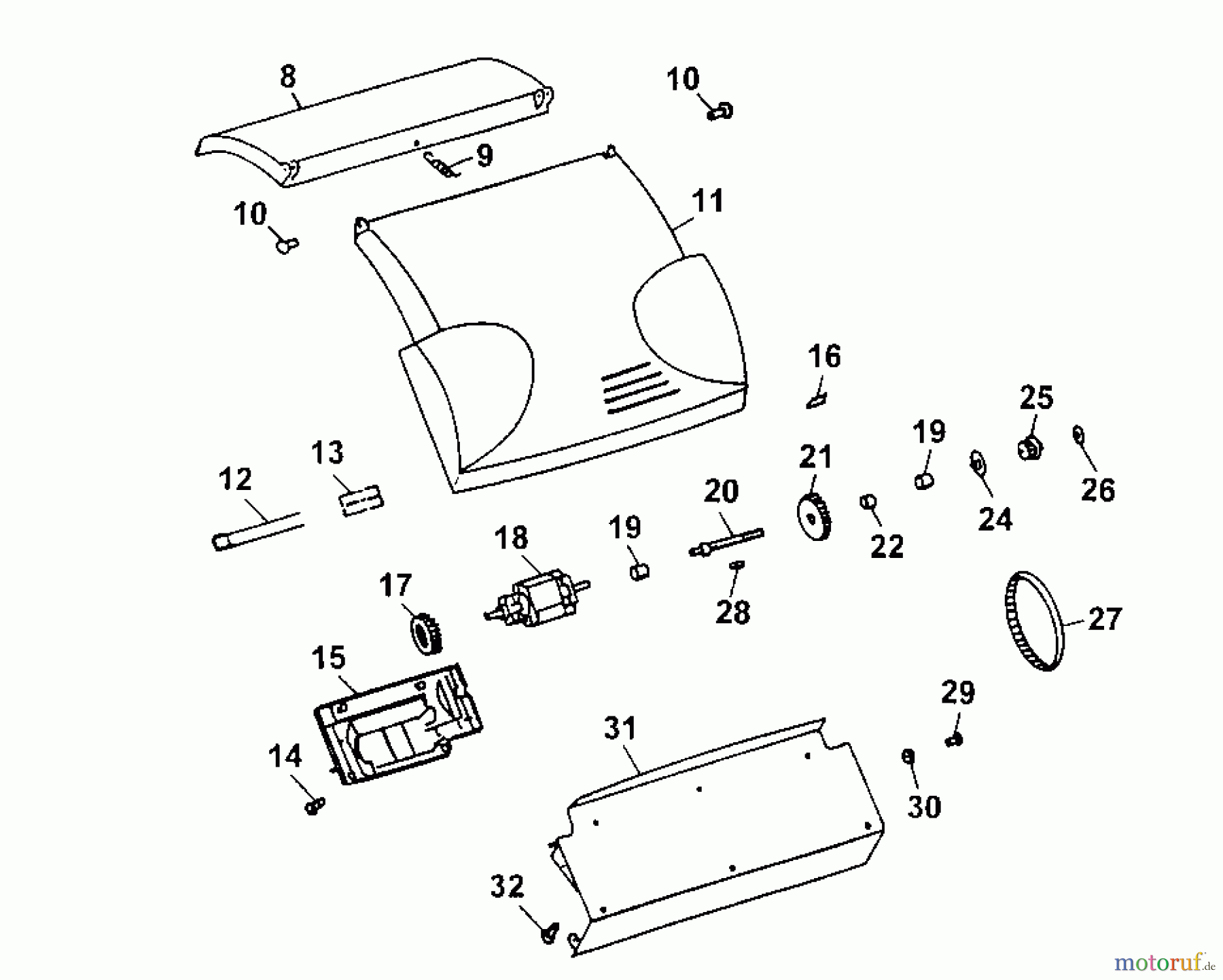

Wolf-Garten Groomer UL 32 E 4030000 Series A (2000) Electric motor, Rear flap
PosizioneArticolo numeroDescrizione
8 4030301HECKKLAPPE E3 532711
9 4030109ZUGFEDER E3 532720
10 4030303HALTER E3 513313
11 4030300COVER
12 4030110KONDENSAT. E3 532745
13 4030322ISO-STECK. E3 329948
14 4030118SCHRAUBE E3 532718
15 4030304MOTORTRAEG.E3 532709
16 4030117KLEMMFEDER E3 532739
17 4030302LUEFTER E3 532701
18 4030111ELECTRIC ENGINE
19 4030112LAGERBUCHS. E3 532705
20 4030114WELLE E3 532704
21 4030305ZAHNRAD E3 532703
22 4030306DISTANZROH. E3 532743
24 4030307ISOLIERSCH. E3 533602
25 40303084030308
26 40301194030119
27 4030113toothed belt
28 4030116PASSFEDER E3 532728
29 0012864OVAL HEAD SCREW
30 0016310HEXAGON NUT M5
31 4030115Cover Plate
32 4030118SCHRAUBE E3 532718
*** 0051085Wolf-Garten - label
*** 4030205Label
*** 4030200Mode d'emploi
*** 4330228CABLE ROUTING
*** 4030025SCHRAUBENSATZ E3 532744
