Spareparts

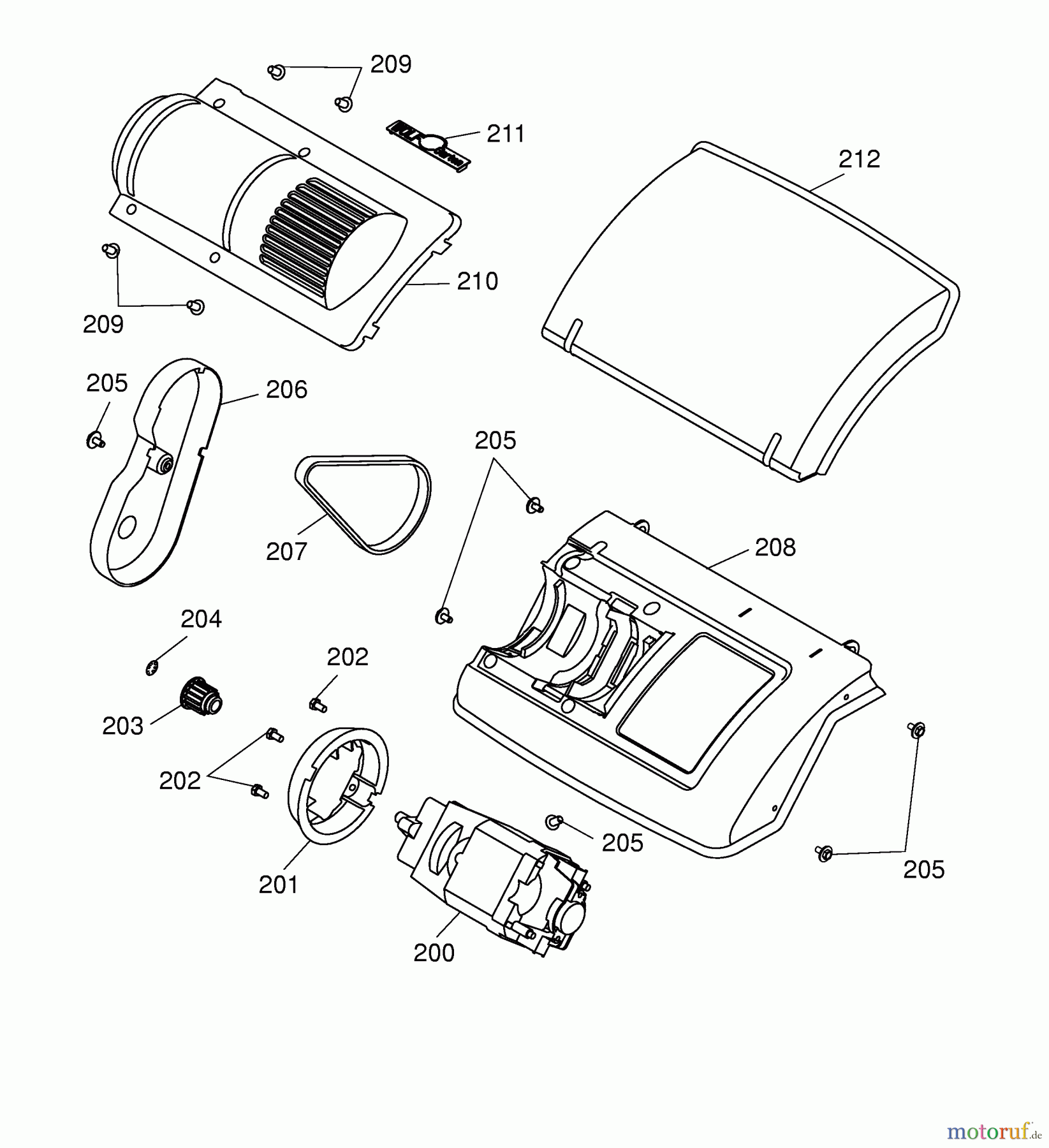

Electric motor, Belt 3616000 Series A (2004)
| Posizione | Articolo numero | Descrizione | |
| 200 | 1121070 | MOTOR | |
| 201 | 3616312 | Motor holder | |
| 202 | 0015157 | Screw M4x12 (3 pieces) | |
| 203 | 3616315 | Crown gear | |
| 204 |  | 0020694 | SPEEDFIX RETAINER |
| 205 | 0015962 | Sheet Metal Screw 4,8X16 | |
| 206 | 3620305 | BELT COVERING | |
| 207 | 0039011 | Toothed belt (L=460) | |
| 208 | 3616300 | Chassis cover | |
| 209 |  | 0012630 | SCREW |
| 210 | 3616304 | Motor cover | |
| 211 | 0051115 | WOLF-GARTEN-MARKE (103MM) | |
| 212 | 3620303 | REAR FLAP | |
