Wolf-Garten TC 32 MAC 3617000 Series A (2004) Harness Ricambi

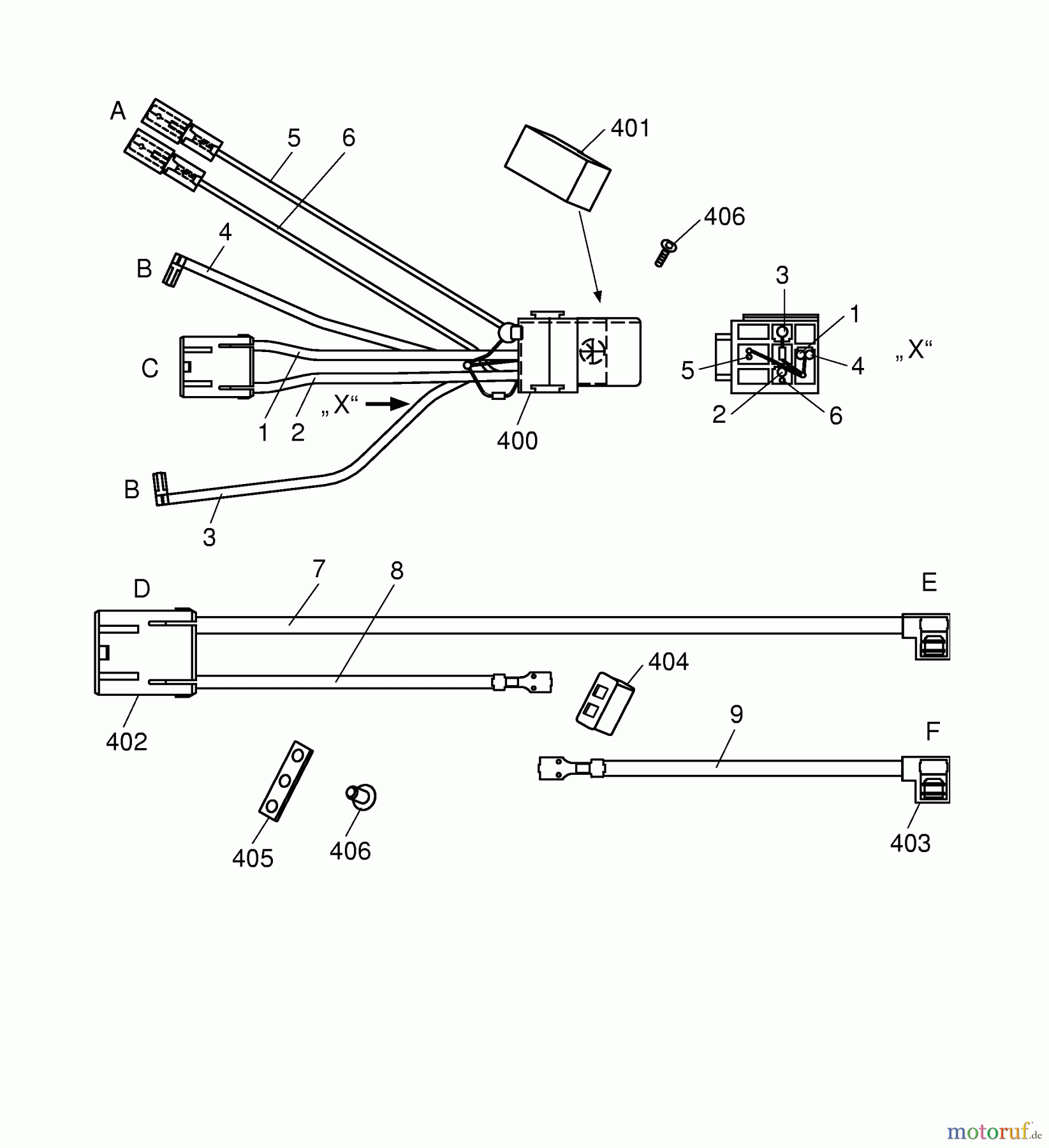

Harness 3617000 Series A (2004)
| Posizione | Articolo numero | Descrizione | |
| 400 | 3617054 | WIRE HARNESS | |
| 401 | 4933114 | RELAY | |
| 402 | 3617061 | ACCU CONNECTOR CABLE WITH PLUG | |
| 403 | 3617135 | Cable Red | |
| 404 | 3617109 | SWITCH (1160-02-15) | |
| 405 | 3617505 | CLIP TC32MAC | |
| 406 | 0012629 | EJOT-SCREW K50x12-WN1452-Sternantrieb2 | |
| *** | 4911067 | CHARGER | |
