Wolf-Garten P 507 3733707 Series A (2008) Electric motor, Spool and string Ricambi

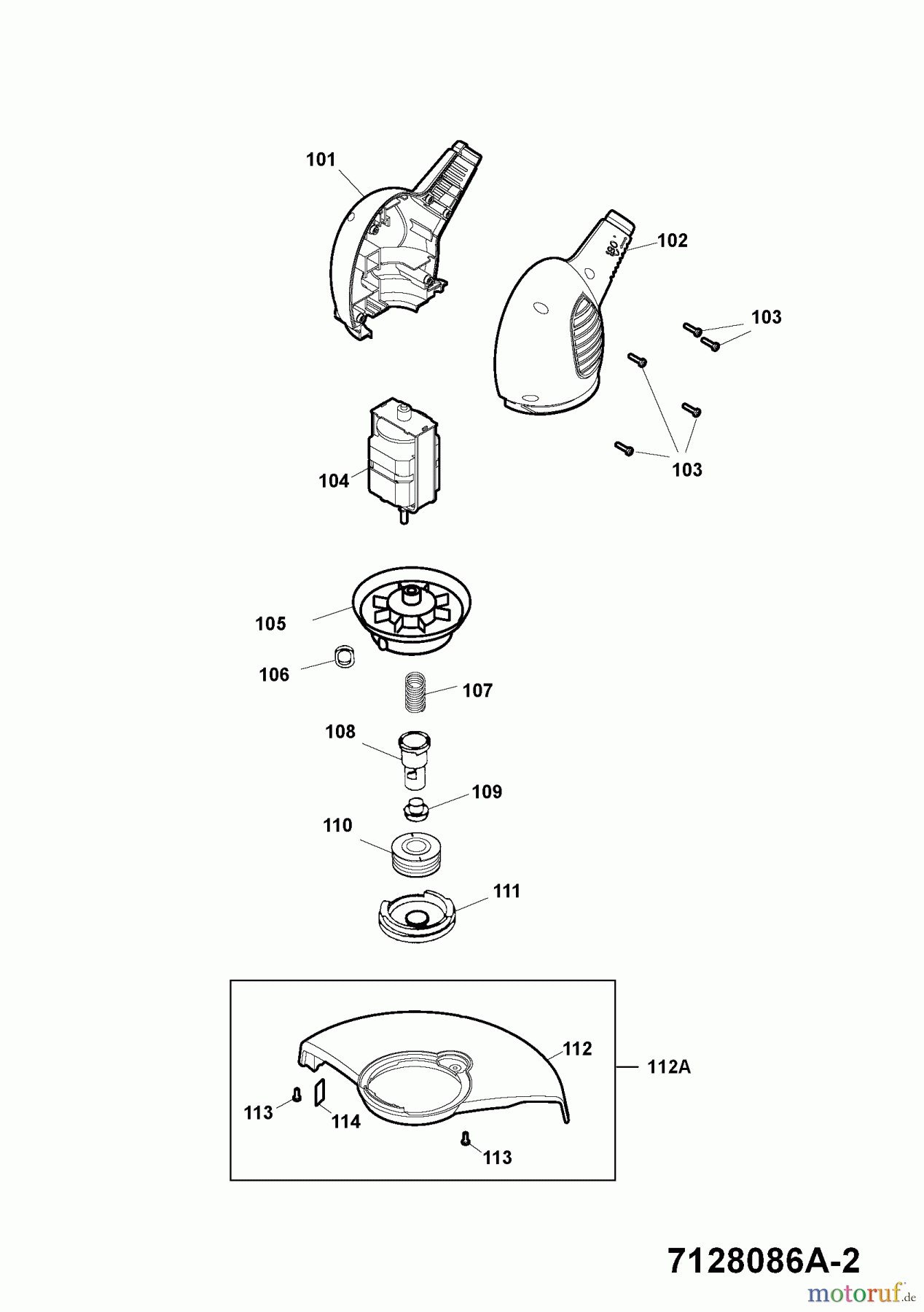

Electric motor, Spool and string 3733707 Series A (2008)
| Posizione | Articolo numero | Descrizione | |
| 101 | 7128300 | motor cover right | |
| 102 | 7128314 | Handle half, left | |
| 103 | 0012625 | SCREW | |
| 104 | 1128009 | ELECTRIC ENGINE | |
| 105 | 7126330 | SPOOL HOUSING | |
| 106 | 7110201 | LINE PROTECTOR | |
| 107 |  | 7031405 | COMPRESSION SPRING |
| 108 | 7126331 | BUSH | |
| 109 | 7126111 | STOP | |
| 110 |  | 7117081 | RQ-FA LINE SPOOL |
| 111 | 7117300 | COVER | |
| 112 | 7130344 | screen compl. | |
| 112A | 7130020 | Screen compl. | |
| 113 | 0012626 | SCREW K40X10-WN1452-Sternantrieb | |
| 114 | 7136100 | Spool line cutter | |
