Spareparts

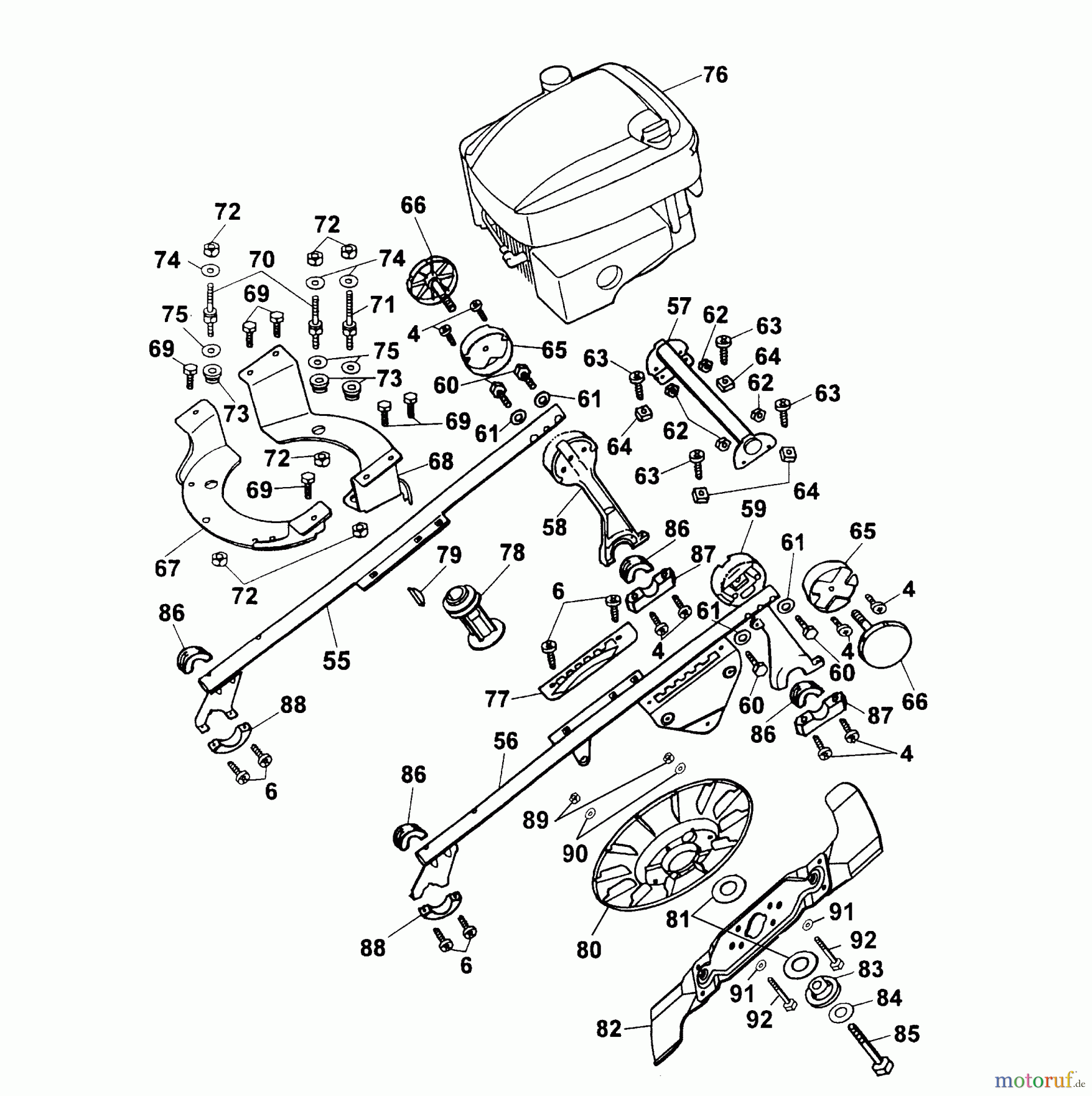

Frame, Blade, Motor 4342000 Series B-E (2003)
| Posizione | Articolo numero | Descrizione | |
| 4 | 0012607 | SCREW | |
| 6 | 0012605 | SCREW | |
| 55 | 6450010 | FRAME | |
| 56 | 6450012 | FRAME | |
| 57 | 6450014 | PIPE | |
| 58 | 6450100 | SUPPORT | |
| 59 | 6450102 | SUPPORT | |
| 60 | 0010313 | SCREW | |
| 61 | 6150182 | DISC, CURVED | |
| 62 | 0016311 | NUT M6 | |
| 63 | 0012831 | SCREW | |
| 64 |  | 0016405 | NUT |
| 65 | 6450188 | FIXING CASE | |
| 66 | 4317010 | HANDWHEEL | |
| 67 | 6450112 | MOTOR SUPPORT | |
| 68 | 6450114 | MOTOR SUPPORT | |
| 69 | 0010386 | SCREW | |
| 70 |  | 6450170 | BOLT |
| 71 | 6450171 | BOLT | |
| 72 | 0016312 | HEXAGON NUT M8 | |
| 73 |  | 6450319 | Rubber buffer |
| 74 |  | 6450138 | Bush |
| 75 | 0017291 | WASHER | |
| 76 | 2069070 | MOTOR | |
| 77 | 6450136 | CRANK | |
| 78 | 6450141 | COUPLING | |
| 79 | 0029130 | WASHER | |
| 80 |  | 6450317 | FAN |
| 81 |  | 4005403 | Clutch 1,3MM Cosid110 |
| 82 | 4350094 | 4350094 | |
| *** | 4350040 | BLADE TIPS | |
| 83 |  | 4840402 | COUPLING CAP |
| 84 | 0017105 | STRAIN WASHER | |
| 85 | 0010264 | SCREW 3/8"-24+3 3/8"-DIN931-10 | |
| 86 | 6450309 | BUSHING | |
| 87 | 6430323 | SHELL | |
| 88 | 6450305 | SHELL | |
| 90 | 0016311 | NUT M6 | |
| 91 | 0017110 | WASHER 6,4 / 25X2,0 | |
| 92 | 0017289 | DISC | |
| 93 | 0010365 | SCREW | |
