Wolf-Garten Esprit 32 E 4912883 Series B, C (2002) Handle Ricambi

• Start
• Wolf-Garten
• Electric mower
• Esprit 32 E
• 4912883 Series B, C (2002)
• Handle

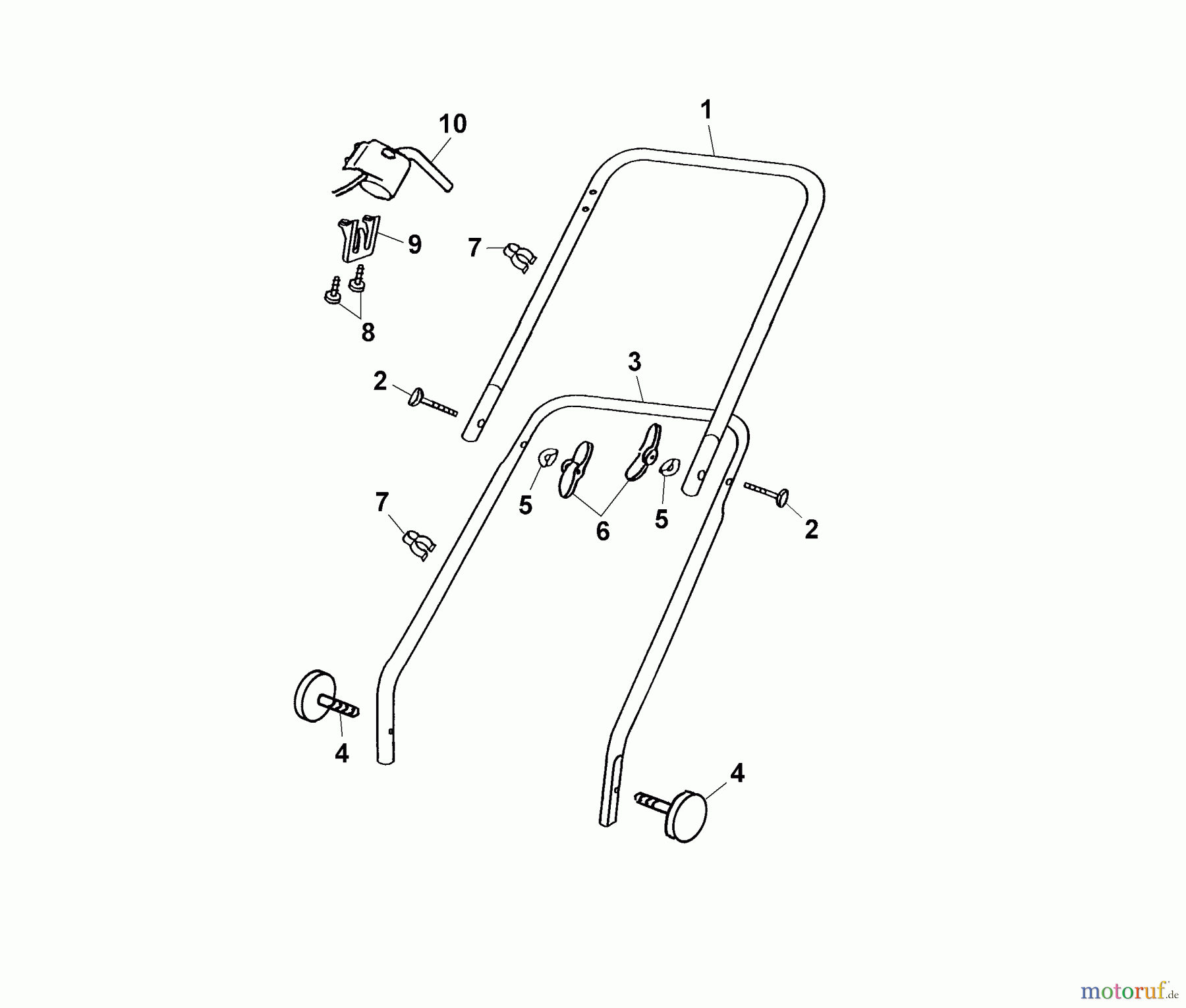

Handle 4912883 Series B, C (2002)

Posizione		Articolo numero	Descrizione
1		4906020	UPPER HANDLEBAR
2		4901101	SCREW
3		4912112	LOWER HANDLEBAR
4		4950010	HANDWHEEL
5		0017275	WASHER, RECESSED
6		0016717	WING NUT
7		4950307	CABLE CLIP
8		0012883	SCREW, PT KA 40 X 22
9		3620325	STRAIN RELIEF (SERIES C ONLY)
***		4901325	CABLE GUIDE
10		3630061	SWITCH (INCL. REF. NO. 9, PART
***		4961053	SWITCH (SWITZERLAND ONLY)
***		4906034	POLY BAG W. SELF ASSEMBLY PART
***		0054233	INSTRUCTION MANUAL
