Spareparts

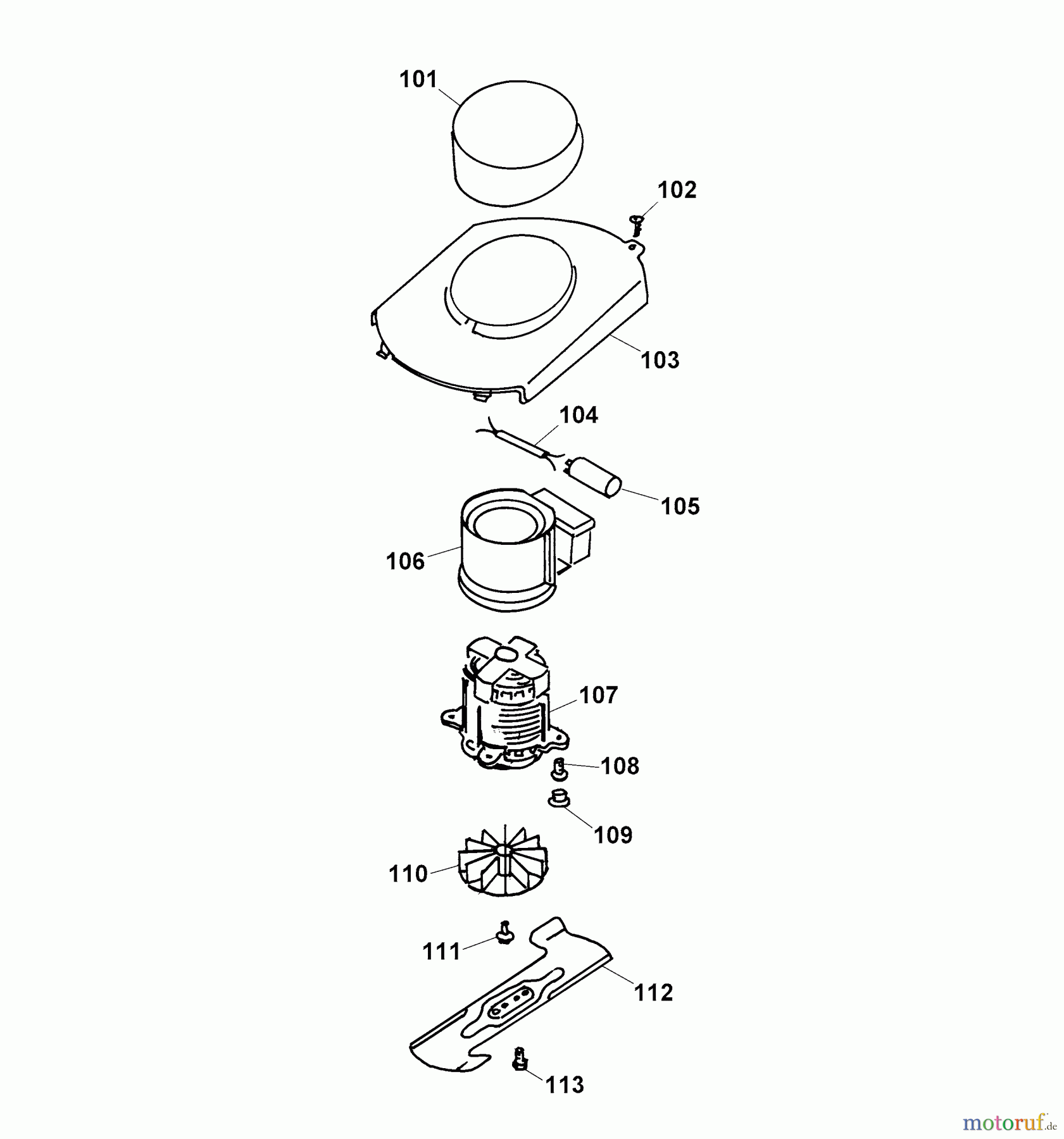

Electric motor, Blade 4916080 Series A, B (2002)
| Posizione | Articolo numero | Descrizione | |
| 101 | 4936305 | MOTOR COVER | |
| 102 | 0012625 | SCREW | |
| 103 | 4936342 | COVER | |
| 104 |  | 3567214 | FLYLEAD |
| 105 | 1117040 | CONDENSER | |
| 106 | 4932308 | AIR CONDUCTION | |
| *** | 1105100 | Flasque bas | |
| *** | 1140110 | MSB. | |
| *** | 1142157 | FEDER-BREMS J2 482.0123 / 68 0 | |
| *** | 1142158 | Plaque de frein | |
| 107 | 1141005 | MOTOR 1300W | |
| 108 | 0012952 | SCREW | |
| 109 | 4936308 | PLUG | |
| 110 | 4916052 | 4916052 | |
| 111 | 0010680 | Vis d'assemblage | |
| 112 | 4936090 | VI36N REPL. BLADE | |
| 113 |  | 0010366 | HEX. HEAD SCREW |
