STANLEY SANDERS LEVIGATRICE SW75 Ricambi
Start
STANLEY
WOODWORKING
SANDERS
LEVIGATRICE
SW75
Seite 1

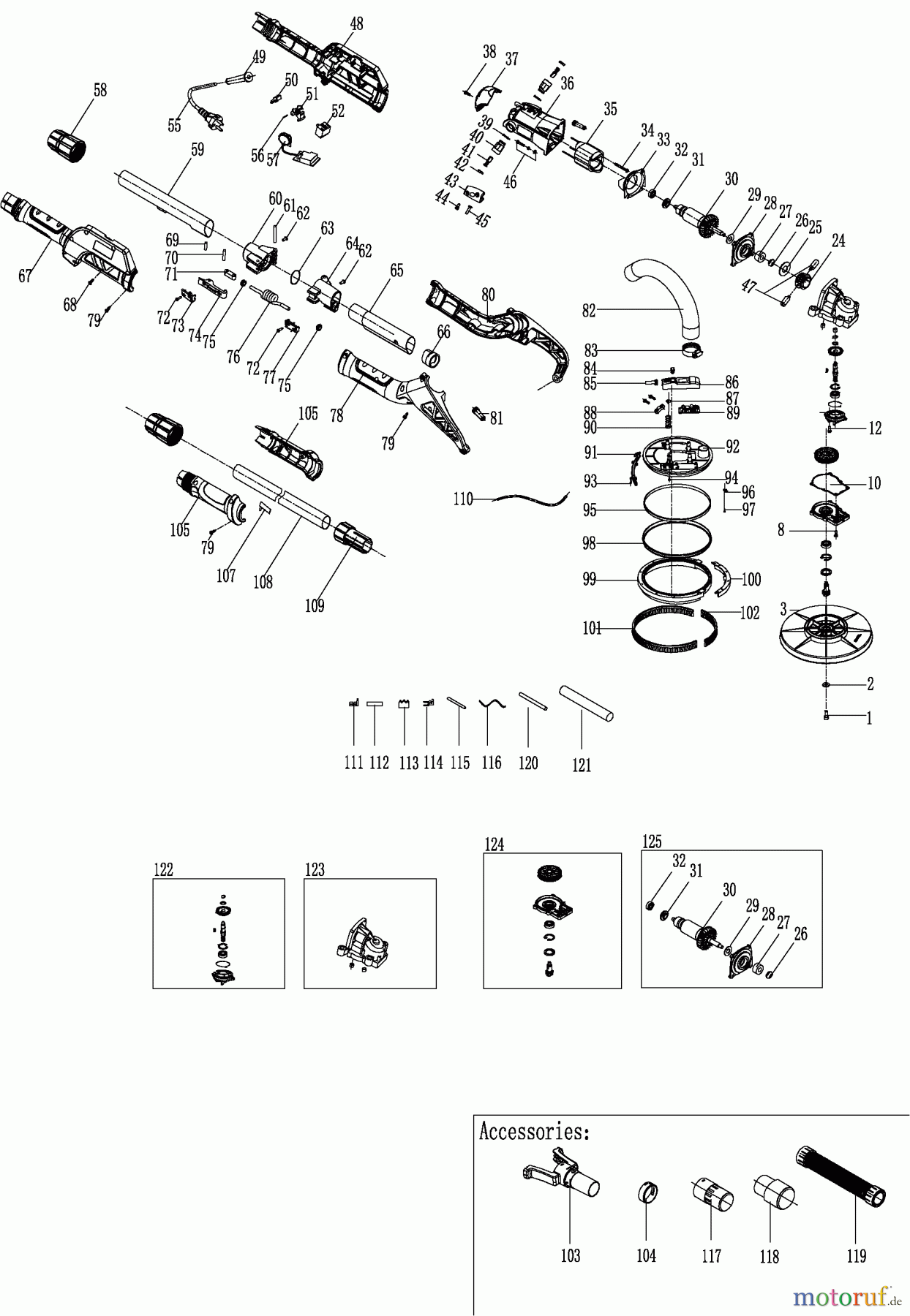

SW75 LEVIGATRICE
Posizione
Articolo numero
Descrizione
1
SB-5140229-21
VITE
2
SB-5140229-22
RONDELLA
3
SB-5140229-23
BLOCCO SMERIGLIATURA
8
SB-5140229-25
VITE
10
SB-5140229-26
RONDELLA
12
SB-5140229-27
VITE
24
SB-5140229-30
PIVOT SLEEVE
25
SB-5140229-31
FELT WASHER
26
SB-5140229-32
SMALL GEAR
27
SB-5140229-33
RONDELLA
28
SB-5140229-34
MIDDLE COVER
29
SB-5140229-35
RONDELLA
30
SB-5140233-25
INDOTTO
31
SB-5140229-37
DUST RING
32
SB-5140229-38
BALL BEARING
33
SB-5140229-39
ANTI WIND RING
34
SB-5140229-40
VITE
35
SB-5140230-28
INDOTTO
36
SB-5140229-42
CORPO
37
SB-5140229-43
BACK COVER
38
SB-5140229-44
VITE
39
SB-5140229-45
TENSION SPRING
40
SB-5140229-46
PORTASPAZZOLE
41
SB-5140230-29
CARBON BRUSH
42
SB-5140229-47
GANASCIA
43
SB-5140229-49
BLOCCO
44
SB-5140229-50
VITE
45
SB-5140229-51
MANICOTTO
46
SB-5140229-52
SCREW AND WASHER
47
SB-5140229-53
SCREW PIN
48
SB-5140229-54
LEFT HANDLE
49
SB-5140229-56
CABLE SLEEVE
50
SB-5140229-57
SWITCH BUTTON
51
SB-5140229-58
SWITCH LEVER
52
SB-5140229-59
INTERRUTTORE
55
SB-5140230-26
POWER CORD
56
SB-5140229-61
PERNO
57
SB-5140234-08
SOFT START MODULE
58
SB-5140229-63
SCREW NUT
59
SB-5140229-64
CHANNEL
60
SB-5140229-65
COPERTURA
61
SB-5140229-66
PERNO
62
SB-5140229-67
VITE
63
SB-5140229-68
O-RING
64
SB-5140229-69
FRONT COVER
65
SB-5140229-70
CHANNEL
66
SB-5140229-71
CHANNEL
67
SB-5140229-55
RIGHT HANDLE
68
SB-5140229-72
VITE
69
SB-5140229-73
PERNO
70
SB-5140229-74
PERNO
71
SB-5140229-75
SUPPORT ARM
72
SB-5140229-76
VITE
73
SB-5140229-77
PRESSING PLATE
74
SB-5140229-78
LOCK WRENCH
75
SB-5140229-79
DOUBLE SLEVE
76
SB-5140229-80
FILO
77
SB-5140229-81
PRESSING PLATE
78
SB-5140229-82
RIGHT SUPPORT
79
SB-5140229-84
VITE
80
SB-5140229-83
LEFT SUPPORT
81
SB-5140229-85
DOUBLE SLEEVE
82
SB-5140229-86
TUBO
83
SB-5140229-87
HOOP
84
SB-5140229-88
INTERRUTTORE
85
SB-5140229-89
DOUBLE SLEEVE
86
SB-5140229-90
COPERCHIO INTERR.
87
SB-5140229-91
VITE
88
SB-5140229-92
PRESS PLATE
89
SB-5140229-93
PCB BOARD
90
SB-5140229-94
PRESSURE SPRING
91
SB-5140229-95
PRESSURE BAR
92
SB-5140229-96
ROUND PAD
93
SB-5140229-97
VITE
94
SB-5140229-98
VITE
95
SB-5140229-99
LED
96
SB-5140230-00
PIASTRA
97
SB-5140230-01
VITE
98
SB-5140230-02
LIGHT COVER
99
SB-5140230-03
TURNTABLE
100
SB-5140230-04
SIDE CIRCLE
101
SB-5140230-05
LONG BRUSH SEGMENT
102
SB-5140230-06
SHORT BRUSH SEGMENT
103
SB-5140230-07
SUPPORT ADAPTER
104
SB-5140230-08
ADJUSTING RING
105
SB-5140230-09
HANDLE ASSY.
107
SB-5140230-11
COPERTURA MANICO
108
SB-5140230-12
CHANNEL
109
SB-5140230-13
MANICOTTO
110
SB-5140230-14
CAVO
111
SB-5140230-15
BUCKLE
112
SB-5140230-16
COPPER STRIP
113
SB-5140230-17
BUCKLE
114
SB-5140230-18
BUCKLE
115
SB-5140230-19
HEAT SHRINK SLEEVE
116
SB-5140230-20
INTERNAL WIRE
117
SB-5140230-21
ADAPTER
118
SB-5140230-22
ADAPTER
119
SB-5140230-23
DUST TUBE
120
SB-5140230-24
HEAT SHRINK SLEEVE
121
SB-5140230-25
MANICOTTO
122
SB-5140229-28
GEAR COVER ASSY.
123
SB-5140229-29
GEAR BOX
124
SB-5140229-24
GEAR COVER ASSY.
125
SB-5140230-27
ARMATURE ASSY.
