OEM A 2.0HP 4G SS PL 1STG 120 SDSC2E4STD Ricambi

• Start
• OEM
• Divers
• A 2.0HP 4G SS PL 1STG 120
• SDSC2E4STD
• Seite 1

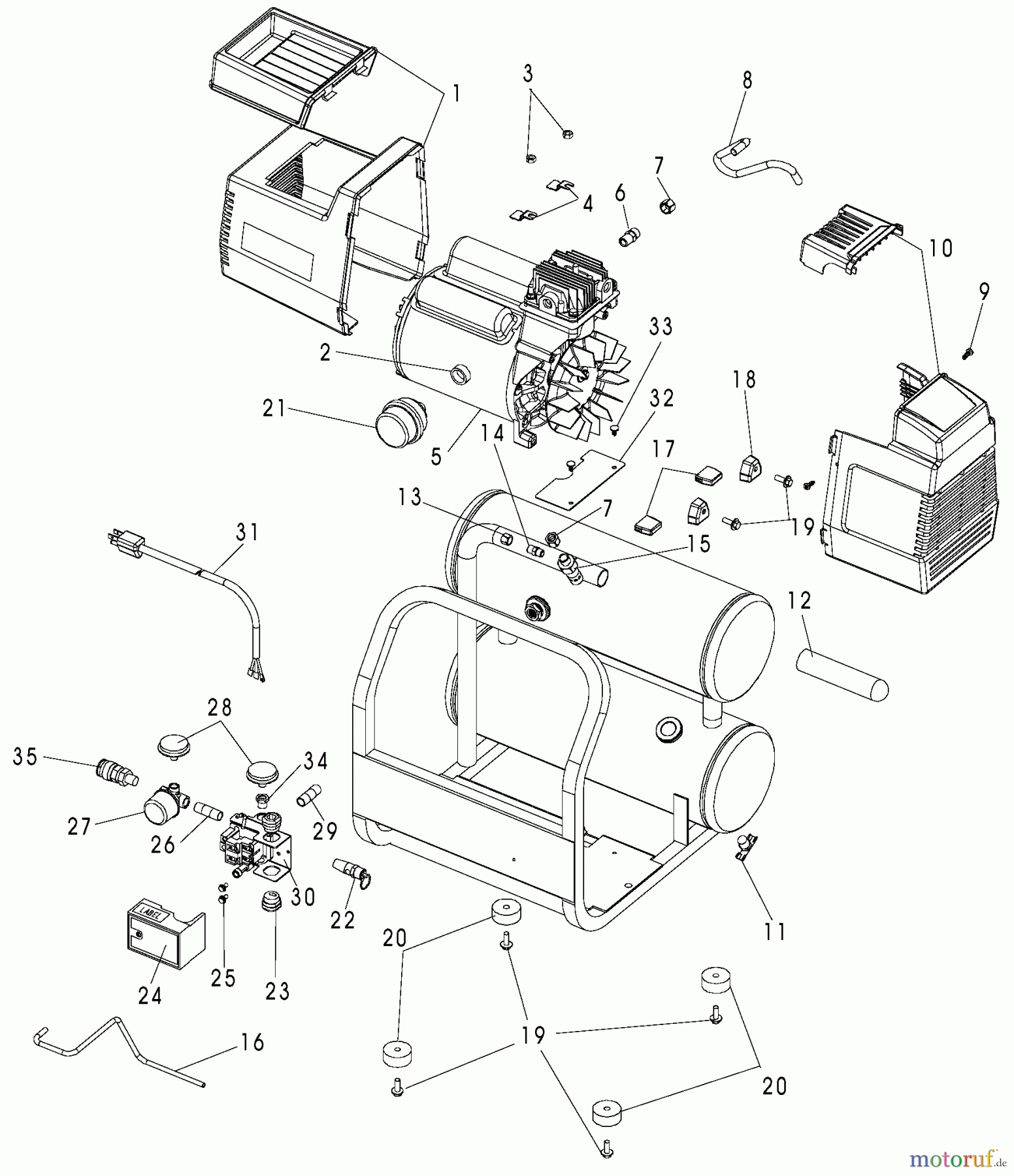

SDSC2E4STD A 2.0HP 4G SS PL 1STG 120

Posizione		Articolo numero	Descrizione
1		SB-Z-AC-0283	SHROUD REAR GRAY S/S
2		SB-AC-0286	DISTANZIALE
3		SB-SS-655-ZN	NUT .250-20 UNC HEX
4		SB-CAC-1121	BRACKET SHROUD
5		SB-000000-00	NON PIU' FORNIBILE
6		SB-SSP-6050	CONNECTOR MALE 1/4NP
7		SB-SSP-7813	DADO
8		SB-AC-0241-1	TUBE OUTLET .375OD C
9		SB-SSF-3156	VITE
10		SB-AC-0077	SHROUD FRONT GRAY
11		SB-A06891	DRAIN VALVE
12		SB-AC-0261	GRIP HANDLE 1.00 TUB
13		SB-SSP-7811	ASSY NUT SLEEVE 1/4
14		SB-SS-8553	CONNECTOR BODY
15		SB-AC-0325-1	VALVE CHECK 1/2NPT X
16		SB-AC-0201-1	TUBE PRES REL .250OD
17		SB-ACG-19	ISOLATOR 3 POINT MOU
18		SB-ACG-18	CUP SADDLE MOUNT
19		SB-91895680	VITE
20		SB-SST-5314-1	BUMPER RECESS RUBBER
21		SB-AC-0277	MUFFLER PLASTIC THRE
22		SB-TIA-4150	VALVOLA
23		SB-SSW-7367	BUSHING STRAIN RELIE
24		SB-AC-0557	COVER PRES SWITCH
25		SB-SUDL-9-1	VITE
26		SB-SS-2071	NIPPLE 1/4-18 NPT X
27		SB-DAC-180	REGULATOR 3PORT P2 H
28		SB-Z-D23004	GAUGE 1.5OD 200PSI .
29		SB-D23699	NIPPLE .25NPT X 2.0
30		SB-Z-AC-0197-4	SWITCH PRES 4PORT 10
31		SB-SUDL-403-1	ASSY CORD POWER SJT
32		SB-000000-00	NON PIU' FORNIBILE
33		SB-SSN-8001	FASTENER RATCHET NYL
34		SB-SSP-6021	BUSHING REDUCER 1/8-
35		SB-H-2099	ADAPTER 1/4NPT X 1/4
