OEM A 4.0HP 20G HP OL 1STG 24 IR4E20AD Ricambi

• Start
• OEM
• Divers
• A 4.0HP 20G HP OL 1STG 24
• IR4E20AD
• Seite 2

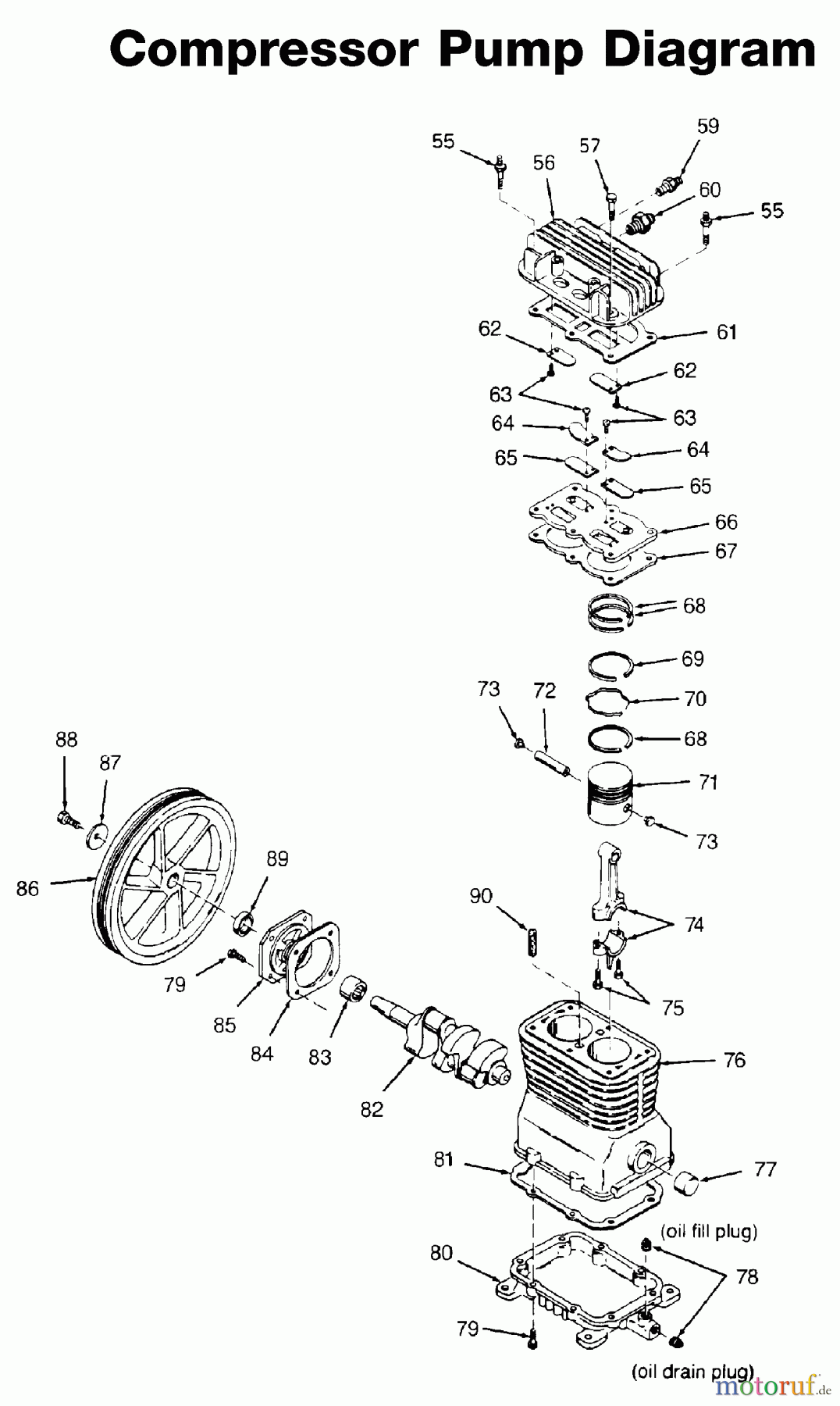

IR4E20AD A 4.0HP 20G HP OL 1STG 24

Posizione		Articolo numero	Descrizione
55		SB-SSF-6627	STUD SHOULDER 3/8-16
56		SB-Z-CAC-4213	ASSY HEAD
57		SB-SSF-955	SCREW .375-16X1.50 H
59		SB-SS-8553	CONNECTOR BODY
60		SB-SSP-9401	CONNECTOR BODY STRAI
62		SB-KK-4275	KIT VALVE
63		SB-KK-4275	KIT VALVE
64		SB-CAC-294	PLATE RESTRICTOR
65		SB-KK-4275	KIT VALVE
68		SB-KK-4313	KIT RING 2 7/8 PUMP
69		SB-KK-4313	KIT RING 2 7/8 PUMP
70		SB-KK-4313	KIT RING 2 7/8 PUMP
71		SB-CAC-55-1	PISTON MACHINE DWG 2
72		SB-265-19	PIN PISTON
73		SB-CAC-207	PLUG PISTON PIN
74		SB-265-410	ASSY CONNECTING ROD
75		SB-SSF-927	SCREW .250-20X1.125
77		SB-Z-265-41	BEARING NEEDLE CLOSE
78		SB-000000-00	NON PIU' FORNIBILE
79		SB-SSF-925	SCREW .250-20X.875 H
83		SB-Z-265-23	BOCCOLA AD AGHI
84		SB-265-13	GASKET END PLATE
85		SB-265-9	PLATE END
86		SB-265-2	FLYWHEEL 10 OD CI PO
87		SB-SSN-1014-ZN	WASHER .339/.344 ID
88		SB-SSF-3039-ZN	SCREW .313-18X.750 H
89		SB-265-111	SEAL OIL
90		SB-KK-4312-2	KIT GASKET OIL LUBE
