BOSTITCH AIR COMPRESSOR CAP2045ST-OL Ricambi

CAP2045ST-OL AIR COMPRESSOR

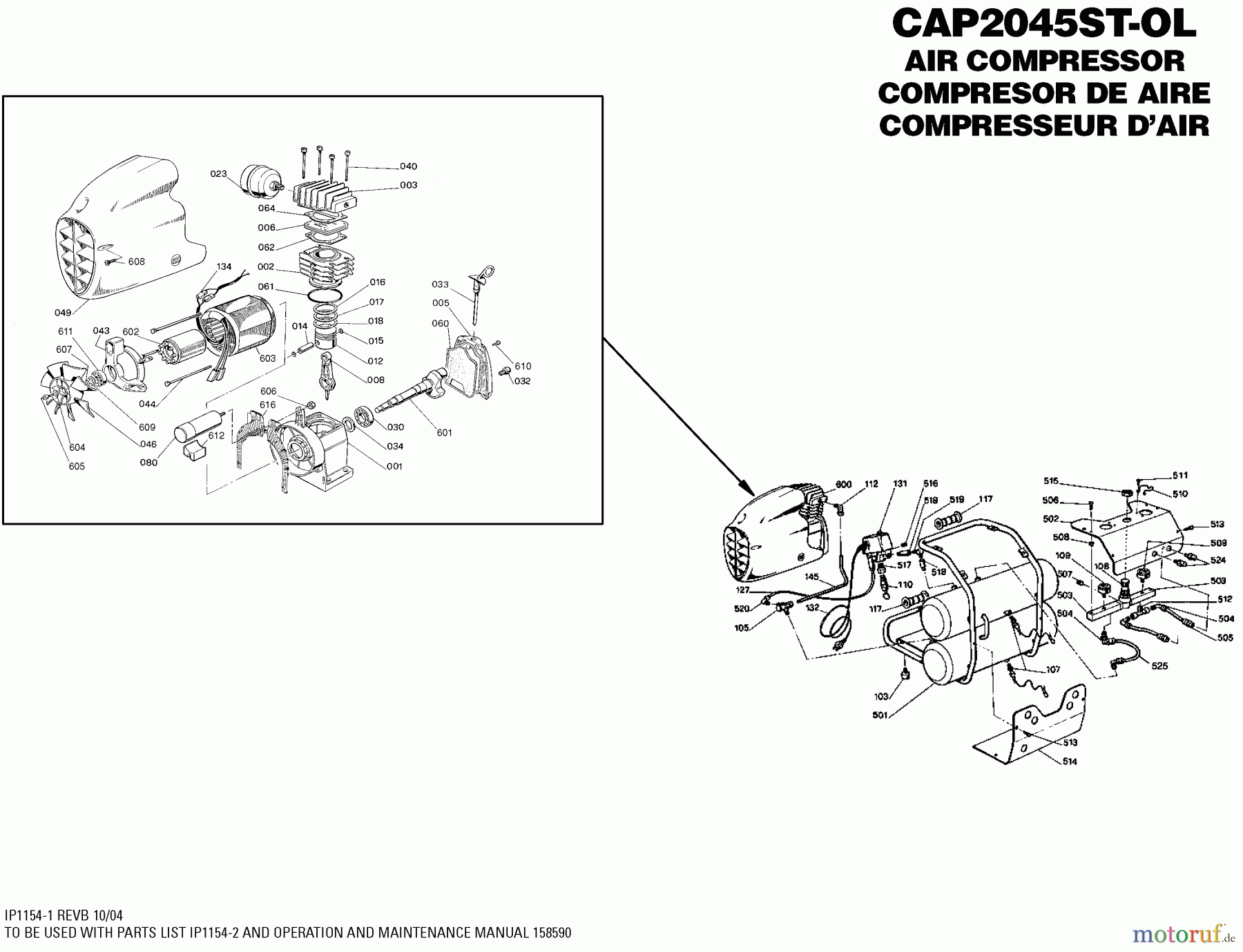

BOSTITCH COMPRESSORS AIR COMPRESSOR CAP2045ST-OL Seite 1
PosizioneArticolo numeroDescrizione
1 SB-AB-7161100RIPARO
2 SB-AB-1730000CILINDRO
3 SB-AB-1761401PUMP HEAD
5 SB-AB-7161310CRANKCASE COVER
6 SB-AB-0540051VALVE PLATE ASSEMBLY
8 SB-AB-7110100BIELLA
12 SB-AB-692110BPISTONE
14 SB-AB-6521200PIN 12X36
15 SB-AB-9140020CIRCLIP 12 UNI 7437
16 SB-AB-9020137GUARNIZIONE
17 SB-AB-9020138GUARNIZIONE
18 SB-AB-9020139GUARNIZIONE
23 SB-AB-9054006FILTRO
30 SB-AB-9170030BEARING 6205
32 SB-AB-9022020OIL SIGHT GLASS
33 SB-AB-9024026OIL FILL PLUG
34 SB-AB-9163010OIL SEAL
40 SB-AB-9011048SCREW TCEI M6X120
43 SB-AB-6562203COPERCHIO MOTORE
44 SB-AB-9011041MOTOR BOLTS M5X115
46 SB-AB-9038159VENTOLA
49 SB-AB-832940DCOPERTURA
60 SB-AB-7150100GASKET-CRANKCASE COV
61 SB-AB-9040009O-RING 3262 NBR/70
62 SB-AB-7150300CYLINDER - PLATE GAS
64 SB-AB-6750400GASKET-PLATE HEAD
80 SB-AB-9067022CONDENSATORE
103 SB-AB-9507019ANTI-VIBRATION PAD
105 SB-AB-9048054NON-RETURN VALVE
107 SB-AB-9050392DRAIN TAP 1/4IN
108 SB-AB-9051020REGOLATORE
109 SB-AB-9052005PRESSURE GAUGE 40 1/
110 SB-AB-9049049SAFETY VALVE 1/4IN A
112 SB-AB-9053159ELBOW CONNECTION 3/8
117 SB-AB-9038157RUBBER HANDLE
127 SB-AB-9417740TUBING
131 SB-AB-9063075PRESSURE SWITCH 3/8I
132 SB-AB-9065181CABLE WITH PLUG 3AWG
134 SB-AB-9065267CAVO MOTORE
145 SB-AB-9043031DELIVERY PIPE
501 SB-AB-9080319022BOSTITCH OBSOLETE PT
502 SB-AB-9083323CONTROL PANEL (STAK-
503 SB-AB-9050393GAUGE MANIFOLD
504 SB-AB-9053583ELBOW CONNECTION
505 SB-AB-9053584ELBOW CONNECTION
507 SB-AB-9053064PLUG 1/8IN
508 SB-AB-9122442DADO
509 SB-AB-9414744PRESSURE GAUGE 50 1/
510 SB-AB-9083326GAUGE PROTECTION
511 SB-AB-9142591SCREW PARKER B 3.9X1
512 SB-AB-D073041CONNECTION T 1/4IN F
514 SB-AB-9083324PROTECTION PLATE
515 SB-AB-9038156RING NUT
516 SB-AB-9053065PLUG 1/4IN
517 SB-AB-9053110REDUCTION 3/8IN 1/4I
518 SB-AB-9050240EXTENSION 1/4IN M
519 SB-AB-9402164ELBOW CONNECTION
520 SB-AB-9053403ELBOW CONNECTION
524 SB-AB-9053866REDUCTION
525 SB-AB-9417693TUBING
601 SB-AB-7861201CRANKSHAFT
602 SB-AB-9067226ROTORE
603 SB-AB-9067435MOTOR STATOR HP2 V12
604 SB-AB-9004004WASHER-8.5X21.3
605 SB-AB-9101314SCREW TCEI 8X25
606 SB-AB-9122044NUT-M8
607 SB-AB-9134370WASHER-TOOTHED 14
608 SB-AB-9142571SCREW-PARKER AB 4.2X
609 SB-AB-9140160CIRCLIP 17 UNI 7436
610 SB-AB-9142592SCREW-PARKER AB 3.9X
611 SB-AB-9170091BEARING 6203 2Z
612 SB-AB-9038122SUPPORT CAPACITOR
616 SB-AB-9083881PROTECTION GRID
