CRAFTSMAN TRACTOR 917.251490 Ricambi

917.251490 TRACTOR

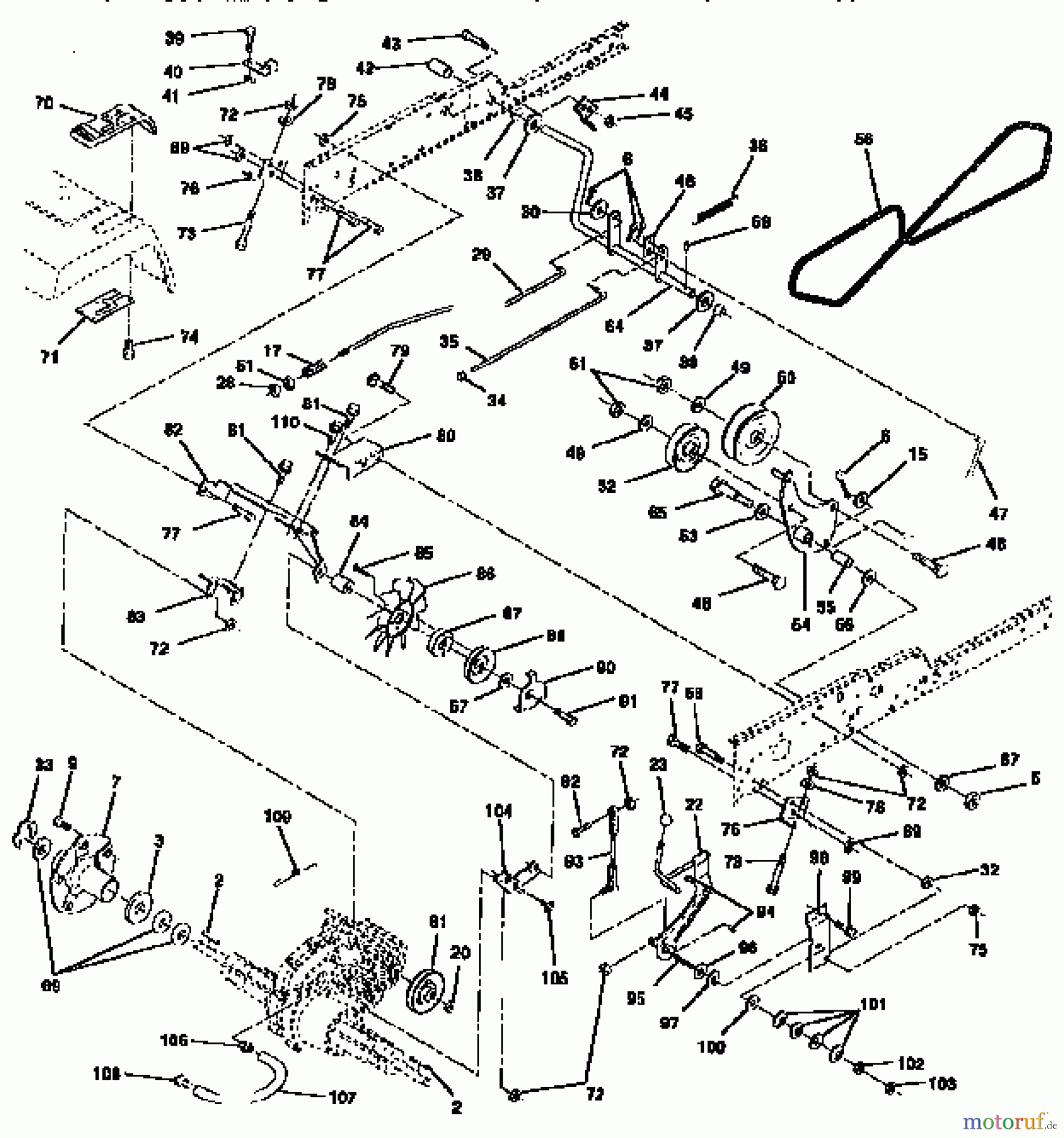

CRAFTSMAN Divers TRACTOR 917.251490 Seite 3
PosizioneArticolo numeroDescrizione
2 SB-STDPARTCOMMONLY AVAIL. PART
3 532007563RONDELLA
5 73680600NUT CROWNLOCK 3/8-16 UNC
6 SB-STDPARTCOMMONLY AVAIL. PART
7 532140507HUB ASMBLY
9 140080HUB BOLT
15 819121414RONDELLA
17 140921SPRING ROD
20 73940800NUT.HEX.1/2-20
23 532106933MANOPOLA
28 STD541237DADO
30 819131612RONDELLA
34 532071673PLUNGER CAP
35 137648BRAKE PARK
36 149412SPRING.GRND.
37 121749XWASHER 25/32 X 1-1/4 X 16 GA.
39 STD511010VITE
41 532069180LOCKNUT
42 532008883COVER PEDAL BLK ROUND
43 74760412BOLT HEX HD. 1/4-20 UNC X 3/4
45 73800400NUT.
47 532138228CLUTCH ROD
48 872110614BULLONE
50 532173438PULEGGIA
52 532139123PULEGGIA
54 SB-000000-00NON PIU' FORNIBILE
55 532105706BEARING LT (
56 532140218DADO
65 532179613BOLT.SHLDR.3
66 140296WASHER HARD BLADE MO
67 582732501WASHER 13/32 X 13/16 X 12 GA.
68 SB-STDPARTCOMMONLY AVAIL. PART
71 SB-000000-00NON PIU' FORNIBILE
72 873800500NUT HEX LOC
73 874780548BULLONE
74 142432SCREW HEX WSH HI-LO 1/4 X 1/2
75 SB-000000-00NON PIU' FORNIBILE
76 532140481BRACKET TRAN
77 74780716BOLT FIN HEX 7/16-14
78 819111212RONDELLA
79 872110505BULLONE
80 SB-000000-00NON PIU' FORNIBILE
81 17000612SCREW HEXWSH THDROL 3/8-16 X 3/4
82 154561KIT.BRKT/HDW
83 532140479STRAP TORQUE
85 SB-000000-00NON PIU' FORNIBILE
86 140462VENTOLA
87 532140491ADAPTOR.FAN.
88 532161592PULEGGIA
89 SB-000000-00NON PIU' FORNIBILE
90 532140489KEEPER.BELT
91 817490644SCREW.HXWSH.
94 133835FASTNER
96 141103RONDELLA
97 SB-000000-00NON PIU' FORNIBILE
98 SB-000000-00NON PIU' FORNIBILE
99 817060624SCREW 3/8-16 X 1-1/2
100 126881XRONDELLA
101 59285RONDELLA
103 73350500NUT HEX JAM 5/16-18
104 SB-000000-00NON PIU' FORNIBILE
105 SB-000000-00NON PIU' FORNIBILE
106 SB-000000-00NON PIU' FORNIBILE
107 142918MONTAGGIO
108 532142578VENT CAP #70
109 SB-000000-00NON PIU' FORNIBILE
110 532088652HINGE SCREW
