DELTA MITER SAW 36-412 Ricambi

36-412 MITER SAW

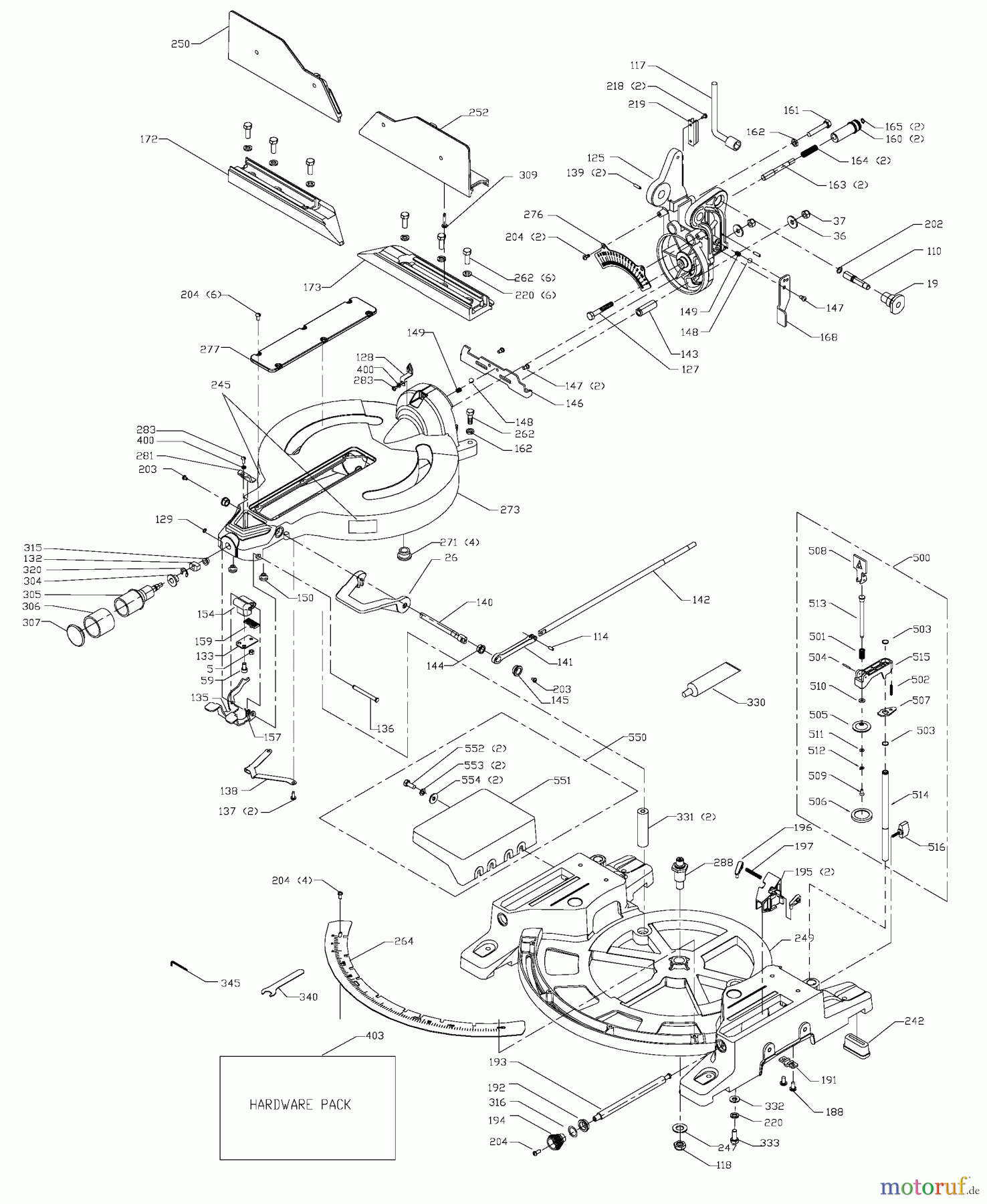

DELTA Divers MITER SAW 36-412 Seite 2
PosizioneArticolo numeroDescrizione
5 SB-1343504DADO
19 SB-910122STOP-ARM LIFTING
26 SB-910033HANDLE-BEVEL LOCK
36 SB-904010312937RONDELLA
37 SB-1342922CONTRODADO
59 SB-1243379VITE
110 SB-910120PIN-HEAD LOCK DOWN
114 SB-1342607PERNO
117 SB-911320CHIAVE INGLESE
118 SB-1347293CONTRODADO
125 SB-909885PERNO PORTANTE
127 SB-901021831280SVITE
128 SB-910144INDICE
129 SB-1341547ANELLO
132 SB-910104CAM-MITER LOCK
133 SB-910103LEVER-MITER LOCK
135 SB-910106LEVER-MITER DETENT
136 SB-910107PIN-MITER ASSY
137 SB-886538VITE
138 SB-910108SPRING CLIP-MITER DE
139 SB-1330050VITE
140 SB-910109SHAFT-BEVEL LOCK
141 SB-910110ROD END-BEVEL LOCK
142 SB-910111SHAFT-TENSIONING
143 SB-910140BOCCOLA
144 SB-910141BOCCOLA
145 SB-910142BUSHING-BEVEL
146 SB-91006810PC SCRDRVR SET
147 SB-910217SHOULDER SCREW-SPECI
148 SB-1243426SFERA
149 SB-901691MOLLA
150 SB-910143PAD-FRONT WEAR
154 SB-910154BLOCK-MITER LOCK
157 SB-910137MOLLA
159 SB-910496CLAMPING PAW
160 SB-910134BUSHING-ECCENTRIC
161 SB-901010600613MACHINE SCREW
162 SB-911709NUT-HEX JAM
163 SB-910135PIN-BEVEL
164 SB-910136SPRING-BEVEL PIN
165 SB-1330327RETAINING RING
168 SB-910138STOP BRACKET
172 SB-910715GUIDA
173 SB-910714GUIDA
188 SB-1310162VITE
191 SB-910126CLAMP-BUSHING
192 SB-910127BOCCOLA
193 SB-910123SPINDLE-CROWN STOP
194 SB-910032KNOB-CROWN STOP
195 SB-910124DOG-CROWN STOP
196 SB-910125EAR-CROWN STOP
197 SB-910139MOLLA
202 SB-910655O-RING
203 SB-910580SCREW-PAN HD.Sternantrieb
204 SB-912164SCREW-SPECIAL
218 SB-901051631126SVITE
219 SB-1346330GRAFFA
220 SB-904020101703SLOCK WASHER
242 SB-894543PIEDE
245 SB-911924ETICHETTA DI AVVISO
247 SB-1347252RONDELLA
249 SB-909883BASE
250 SB-910175WING
252 SB-910174WING
262 SB-901010600608CAP SCREW
264 SB-910112PLATE-MITER SCALE
271 SB-1346269WEAR PAD
273 SB-909884TABLE-ROTATING
276 SB-910121PLATE-BEVEL SCALE
277 SB-910116INSERTO
281 SB-910034MITER CURSOR
283 SB-5140069-51VITE
288 SB-894572PIVOT BOLT
304 SB-894582HAT BUSHING
305 SB-894583HANDLE
306 SB-894584COPERTURA MANICO
307 SB-900183CALOTTA
315 SB-894594HAT BUSHING
316 SB-910180WASHER-WAVE
320 SB-1349940E-RING
330 SB-878499GRASSO
331 SB-910119ROD-FENCE SUPPORT
332 SB-900019RONDELLA
333 SB-900020VITE
340 SB-910699CHIAVE INGLESE
345 SB-891902HEX WRENCH
400 SB-911752WASHER-FLAT
403 SB-910710HARDWARE PACK
500 SB-900110CLAMP ASSEMBLY
501 SB-1346337MOLLA
502 SB-1346338MOLLA
503 SB-1348273RETAINING RING
504 SB-894525PERNO
505 SB-894527CLAMP CUP
506 SB-900110CLAMP ASSEMBLY
507 SB-894535ADJUSTMENT LEVER
508 SB-900126CLAMP LEVER
509 SB-5140069-51VITE
510 SB-904010101603STEEL WASHER
511 SB-904010101610SSTEEL WASHER
512 SB-904020101726LOCK WASHER
513 SB-910722CLAMP PLUNGER
514 SB-910723CLAMP SHAFT
515 SB-912047CLAMP BODY
516 SB-894538CLAMP KNOB
550 SB-36-30036-312/412 ACY TBL
551 SB-910595TAVOLO
552 SB-901010600607SVITE
553 SB-904020101703SLOCK WASHER
554 SB-894517RONDELLA
