Mowing deck 66cm 02840.05 (1988)

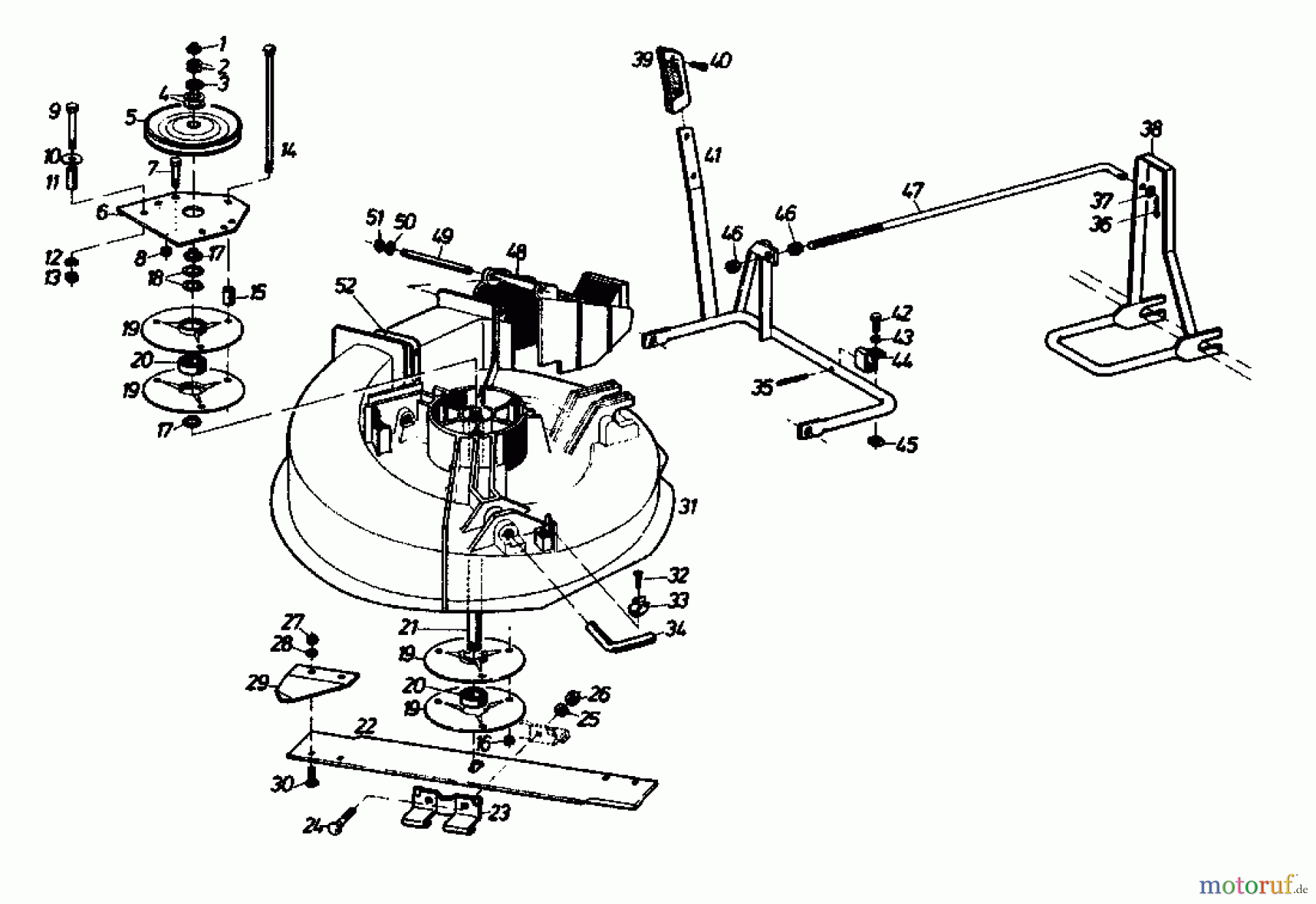

Gutbrod Lawn tractors Sprint 800 E 02840.05 (1988) Mowing deck 66cm
PosizioneArticolo numeroDescrizione
1 28.3591.15Retaining ring
2 24.6273.50Shim
3 24.6484.29Washer
4 24.6271.11Shim
5 029.25.801Pulley
6 029.25.026Intermediate plate
7 21.1443.76SCREW:DIN 931-8.8:M10X70
8 24.1423.18Nut
9 21.1443.96Screw
10 24.6486.22Washer
11 021.56.191Spacer
12 24.6481.18WASHER 8.4 DIN125
13 24.1426.18NYL STOP NUT M5 DIN 985-8
14 22.3419.38Screw
15 029.25.025Spacer
16 24.1426.18NYL STOP NUT M5 DIN 985-8
17 24.8170.08Circlip
18 24.6278.44Shim
19 029.25.021Bearing case
20 26.1027.04Ball bearing
21 029.25.022Spring-right
22 029.25.812BLADE
23 029.25.023Blade holder
24 22.3419.41Screw
25 24.6481.22Washer
26 24.1426.22L-nut
27 24.1421.18Nut
28 24.8195.18Spring washer
29 079.77.255Air guidage plate
30 000.02.461SREW: M5X20-8.8:DIN 603
31 029.25.073Deck
32 22.1418.34Screw
33 000.33.044Clamp
34 029.25.046BOLT
35 25.3197.06Pin
36 24.6488.38Pin
38 029.25.823Release bracket
39 029.25.036Handle
40 000.02.371Screw
41 029.25.810Deck support cpl.
42 21.1441.70Screw
43 24.8195.18Spring washer
44 029.25.034BRACKET-ROD RETAINER
45 24.1428.18Nut
46 24.1428.18Nut
46 24.1426.22L-nut
47 029.25.037Rod
48 029.25.105Deflector
49 029.25.106Rod
50 24.6481.18WASHER 8.4 DIN125
51 28.3591.08Lock washer
52 28.3591.08Lock washer
