Gutbrod RSB 80-12 00097.07 (1995) Mowing deck 80cm Ricambi

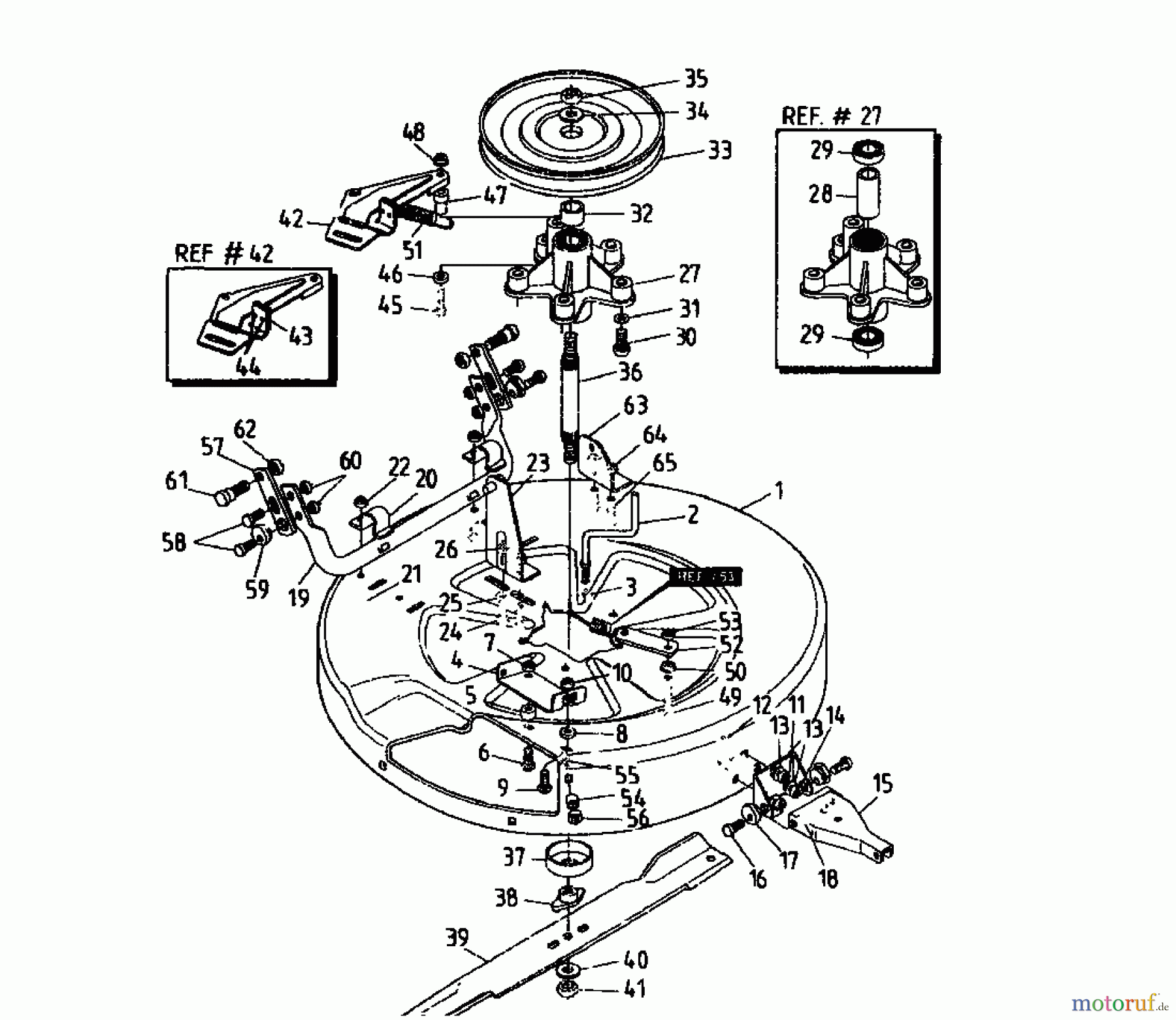

Mowing deck 80cm 00097.07 (1995)

Gutbrod Lawn tractors RSB 80-12 00097.07 (1995) Mowing deck 80cm
PosizioneArticolo numeroDescrizione
1 092.41.868DECK
2 092.41.224Guide belt
3 090.47.187Nut
4 092.41.403Bracket chute
5 092.41.810Spacer
6 092.41.870BOLT
7 090.47.187Nut
8 092.41.094Washer
9 092.41.223Bolt
10 090.47.187Nut
11 092.41.779MAEHWERKSBEFESTIGUNGSBUEGEL
12 092.41.871Bolt
13 092.41.071Washer
14 090.47.187Nut
15 092.41.872MAEHWERKSTRAEGER
16 092.41.070Screw
17 092.41.087PUSHNUT FASTENER
18 090.47.187Nut
19 092.41.873MAEHWERKSTRAEGER
20 092.41.573Bracket idler
21 092.41.092Screw
22 090.47.187Nut
23 092.41.874BRKT ASM:LIFT
24 092.41.092Screw
25 092.41.071Washer
26 090.47.187Nut
27 092.41.875ASSY QUILL
28 092.41.876bush
29 092.41.877BEARING-BALL
30 092.41.241Screw
31 092.41.291Washer
32 092.41.878bush
33 092.41.879PULLEY
34 092.41.136Washer
35 090.47.407HEXAGON NUT
36 092.41.778SHAFT
37 092.41.880PROTECTIVE RING
38 092.41.881HUB BLADE ADAPTER
39 092.41.882BLADE-13IN
40 092.41.136Washer
41 090.47.407HEXAGON NUT
42 092.41.883TENSION ARM
43 092.41.253STATOR-BRAKE
44 092.41.461Rivet
45 092.41.884SCREW-TAP
46 092.41.094Washer
47 092.41.885Bushing
48 090.47.111Nut
49 092.41.735Screw
50 090.47.111Nut
51 092.41.266SPRING,EXT.1"
52 092.41.886SPRING ASSY
54 092.41.483bush
55 092.41.223Bolt
56 090.47.187Nut
57 092.41.887VERLAENGERUNG
58 092.41.070Screw
59 092.41.087PUSHNUT FASTENER
60 090.47.187Nut
61 092.41.888Stud bolt
62 092.15.201L-nut
63 092.41.889BRKT ASM:LIFT
64 090.47.187Nut
65 092.41.092Screw
