Gutbrod RSB 80-12 00097.07 (1995) Gearbox Ricambi

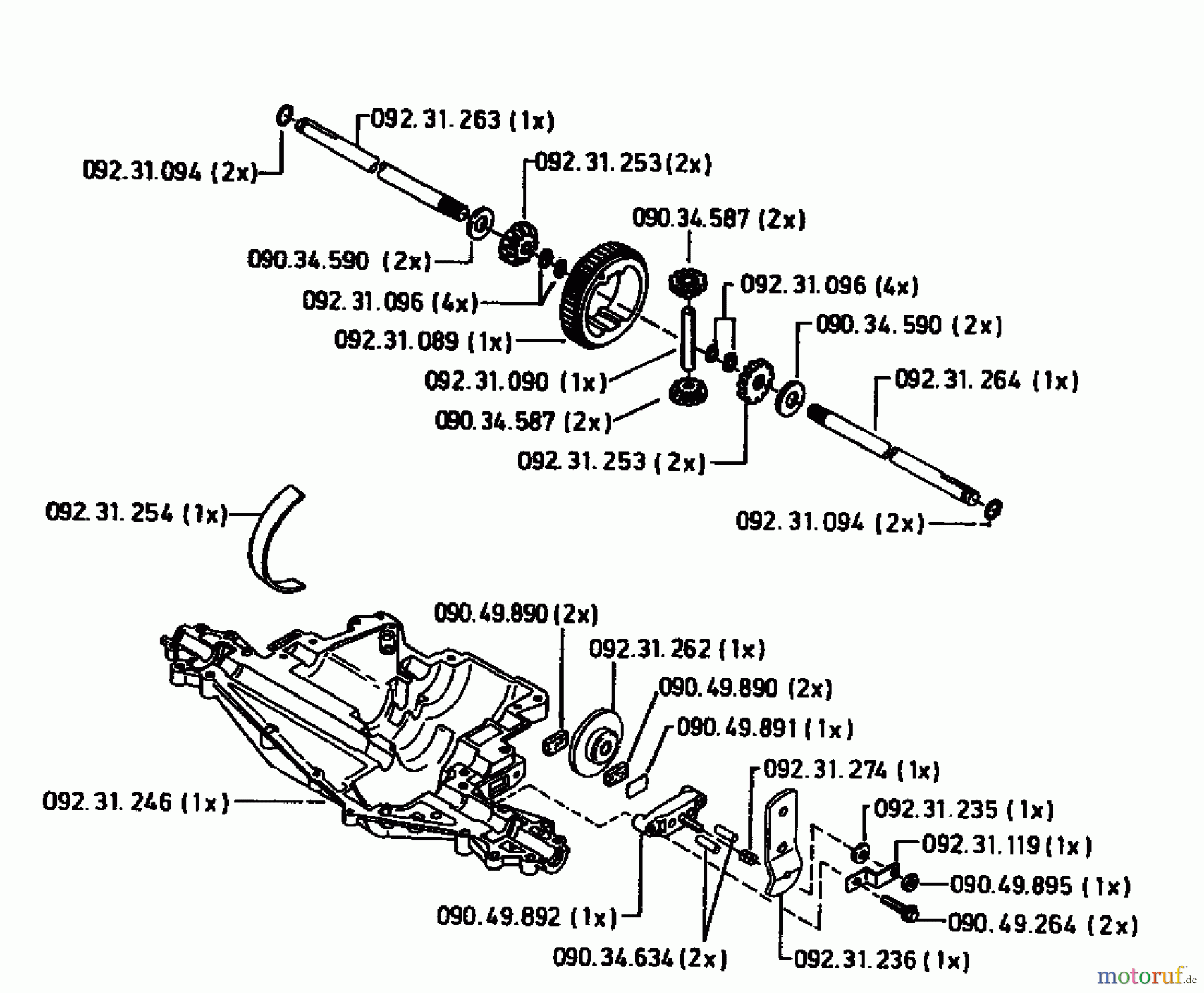

Gearbox 00097.07 (1995)

Posizione	Articolo numero	Descrizione
1	090.49.891	BRAKE PLATE
2	092.31.246	GETRIEBEGEHAEUSE-UNTERTEIL
3	090.49.892	BRAKE PAD HOLDER
4	090.49.890	STATOR-BRAKE
5	092.31.094	Ring seal
6	092.31.262	BRAKE DISC
7	092.31.119	BRAKE LEVER SUPPORT
8	090.49.895	Nut
9	090.49.264	Screw
10	092.31.235	792076A
11	090.34.634	Pin
12	092.31.236	LEVER, PARK BRAKE ENGAGEMENT
13	092.31.274	Spring
14	092.31.089	Ring gear
15	092.31.090	AXLE-EDGER
16	090.34.587	Gear bevel pinion
17	092.31.096	Circlip
18	092.31.263	AXLE-EDGER
19	090.34.590	Thrust washer
20	092.31.264	AXLE-EDGER
21	092.31.254	BUSHING
22	092.31.253	KEGELRAD M. INNENVERZ. (16 Z.)
