WOLF-Garten Expert Expert 53 BAVIS 12BGQ56J650 (2017) Rear baffle, Deck housing, Rod rear flap, Cover panels Ricambi

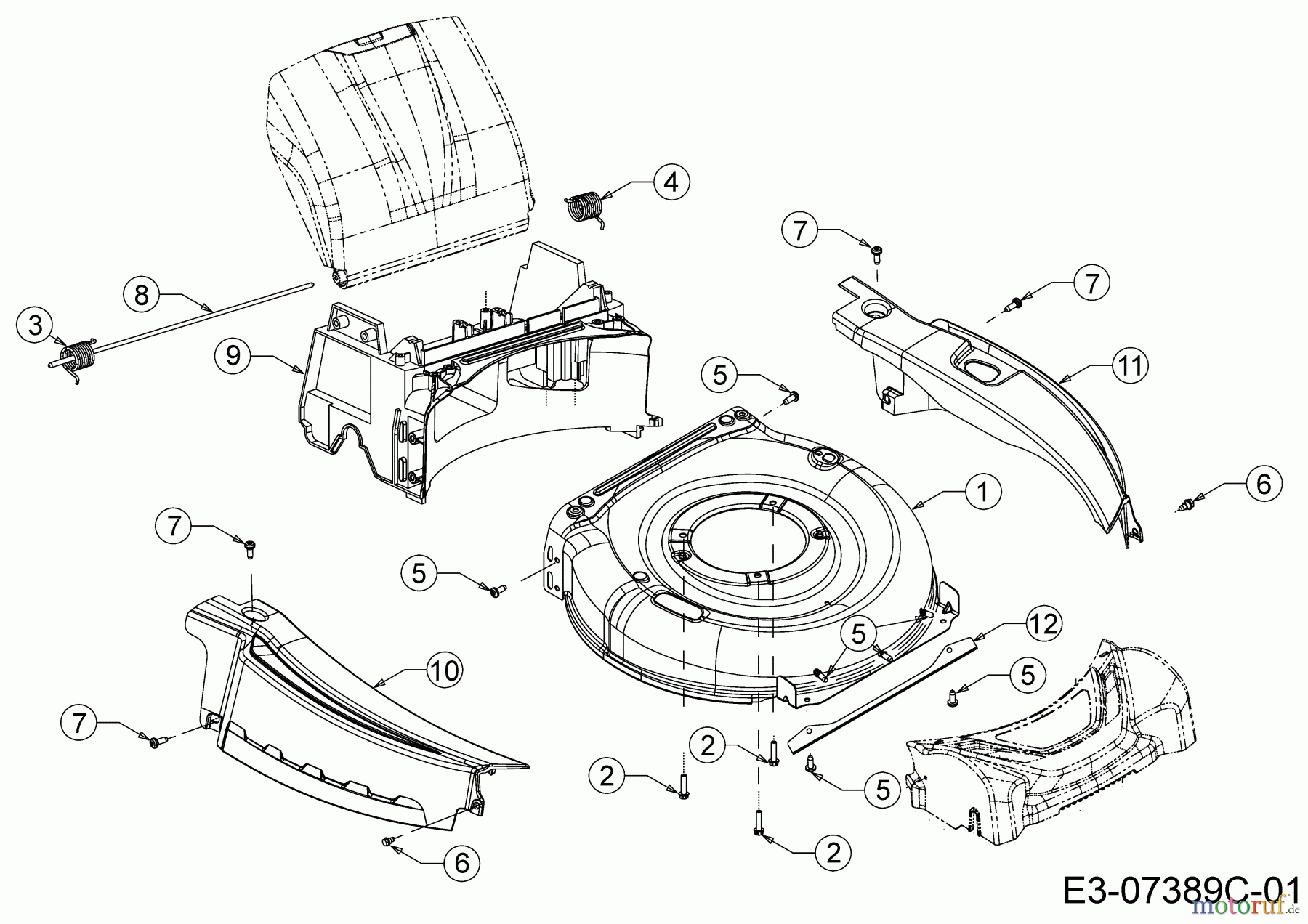

Rear baffle, Deck housing, Rod rear flap, Cover panels 12BGQ56J650 (2017)

WOLF-Garten Expert Petrol mower self propelled Expert 53 BAVIS 12BGQ56J650 (2017) Rear baffle, Deck housing, Rod rear flap, Cover panels
PosizioneArticolo numeroDescrizione
1 787-02056BDECK:21":2 IN 1: RWD: NOZ
2 WOLF-Garten Expert SCR.TT:3/8-16:1.000:HEXINDWSH710-04683CSCR.TT:3/8-16:1.000:HEXINDWSH
3 732-05061ATORSION SPRING RH
4 732-05062ATORSION SPRING LH
5 710-1611BSCR:TT:5/16-18:0.750:PANTRXI
6 WOLF-Garten Expert SCR:SHLDR:1/4-20:0.50:HXINDWSH738-04502SCR:SHLDR:1/4-20:0.50:HXINDWSH
7 738-04532SHOULDER SCREW 5/16-18:0.75
8 747-05183Base pin
9 719-04683B
10 731-08579SIDE PART:RIGHT:53CM:WOLF
11 731-08575SIDE PART:LEFT:53CM
12 787-03085
