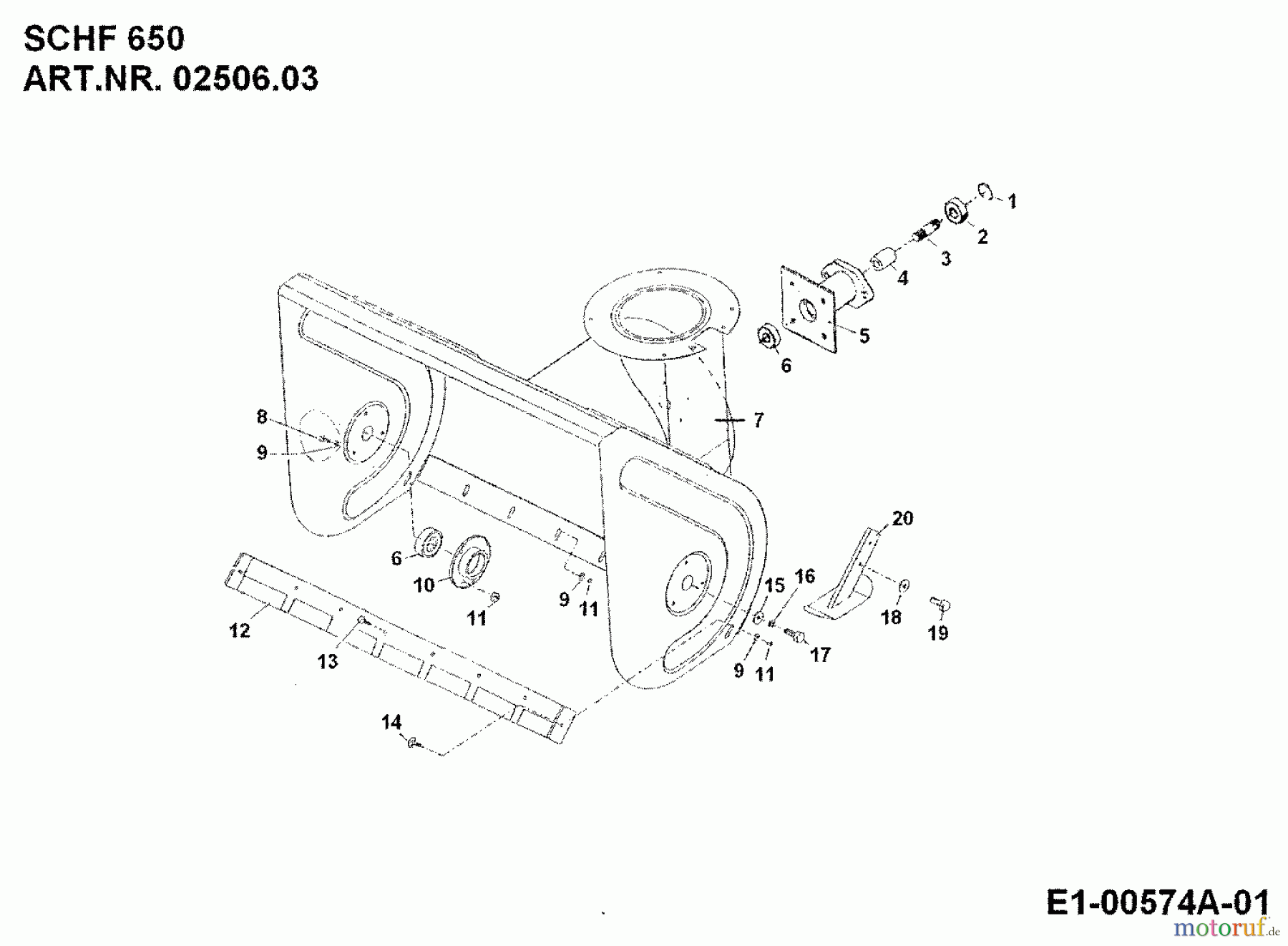

Auger housing 02506.03 (1995)

Posizione		Articolo numero	Descrizione
1		28.3592.47	Snap ring
2		26.1027.04	Ball bearing
3		092.48.488	SHAFT-INPUT
4		092.48.489	BUSHING
5		092.48.490	CONNECTING FLANGE
6		26.1037.03	Ball bearing
7		092.48.491	HOE HOUSING
8		21.1441.46	SCREW HEX M5x12 DIN 933-8.8
9		24.6481.14	WASHER A6.4 DIN 125-ST
10		092.48.492	BEARING HOLDER
11		24.1421.14	Nut
12		092.48.493	PLATE SHAVE
13		21.6421.75	Screw
14		22.3419.11	Screw
15		24.6486.18	WASHER A8.4 DIN 9021
16		24.8195.56	SPRING LOCK WASHER/DIA 8
17		21.1441.70	Screw
18		24.6481.22	Washer
19		21.1441.85	Screw
20		092.48.494	SLIDE SHOE
