MTD Accessories Spreader 45-02151 (190-525-000) 190-525-000 (1999) Basic machine Ricambi

Basic machine 190-525-000 (1999)

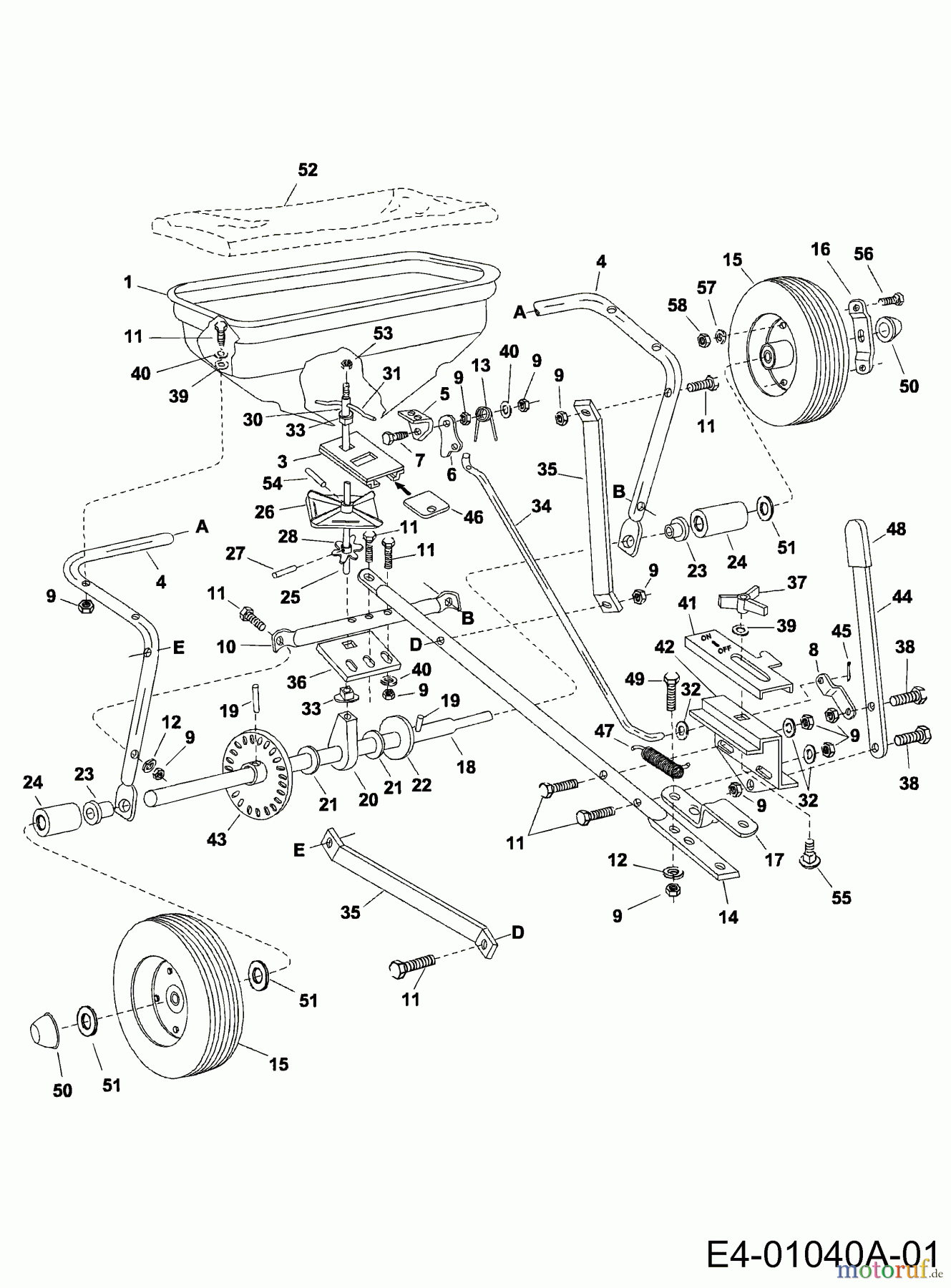

MTD Accessories Accessories garden and lawn tractors Spreader 45-02151 (190-525-000) 190-525-000 (1999) Basic machine

Posizione	Articolo numero	Descrizione
1	AF-44624	UPPER HOUSING
2	AF-43882	RIVET, STAINLESS CSL-6-6
3	AF-62482	ASS`Y GUIDE CLOSURE
4	AF-44588	HANDLE BARS
5	AF-23753	BRACKET, GATE SLIDE ANGLE
6	AF-23758	PLATE
7	710-0252	SCREW-HEX
8	AF-23756	LINK, FLOW CONTROL
9	AF-43013	NUT HEX 1/4-20
10	AF-44591	TUBE,CROSSCOVER (BLACK POWDER)
11	AF-43648	SCREW,HEX CAP
12	AF-43177	LOCKWASHER, SPRING 1/4"
13	AF-44566	SPRING-EXTENSION
14	AF-44586	TUBE, HANDLE (LONG) (PAINTED)
15	AF-46503	WHEEL, & TIRE 4.10/3.5-4
16	AF-24116	HOLDER PLATE
17	AF-23818	FORK,LIFT
18	AF-23781	AXLE
19	AF-44665	PIN, ROLL 5/32x1-1/4
20	AF-44672	COLLAR-SUPPORT
21	AF-44137	WASHER
22	AF-R19171616	WASHER
23	741-0248	FLANGE BEARING
24	AF-46501	SPACER
25	AF-23524	SHAFT-TINE
26	AF-4367	SPREADER PLATE
27	AF-43850	USE 715-0247
28	AF-44468	SPROCKET-GEAR SUB ASS`Y 38"
29	AF-C9M-5732	RIVET
30	AF-23766	SPACER
31	AF-43878	WIRE, AGITATOR
32	AF-R19111116	WASHER. 1.59x1.032x.060
33	AF-44285	BUSHING, HOPPER BOTTOM BLACK
34	AF-44469	ROD:GRILL:SUPT G STY
35	AF-23525	BRACE, HITCH
36	AF-23780	SUPPORT PLATE
37	AF-43849	KNOB,PLASTIC 1/4-20 THDS(INT.)
38	AF-43866	BOLT,HEX HD 1/4-20x5/8 GR 5 PL
39	1543-069	WASHER-NYLON
40	AF-43088	WASHER, 1/4 STD WRT PLTD
41	AF-23755	COVER,IMPLEMENT LIFT
42	AF-23754	ASS`Y FLOW CONTROL MOUNT
43	AF-62798	DRIVE DISC
44	AF-23757	FORK,LIFT
45	AF-44101	PIN, COTTER 3/32 x 3/4 PLTD
46	AF-23533	DRAWBAR
47	AF-43000	SPRING, GOVERNOR
48	AF-43848	HANDLE
49	AF-43661	BOLT, HEX 1/4-20x1 GR 5
50	AF-44663	NUT, PUSH (HUB CAP) 1/2" ID
51	AF-R19171616	WASHER
52	AF-44619	OPTIONAL VINYL HOPPER COVER
53	AF-43082	NUT-HEX CENTER
54	AF-46055	TENSION SLEEVE 1/8"X1"LG
55	AF-44950	BOLT, CARR 1/4-20x3/4
56	AF-43182	BOLT,HX HD 5/16-18x3/4PLTD GR5
57	AF-43086	LOCKWASHER,5/16 SPRING-TYPE PL
58	AF-43083	NUT, 5/16-18 PLTD
