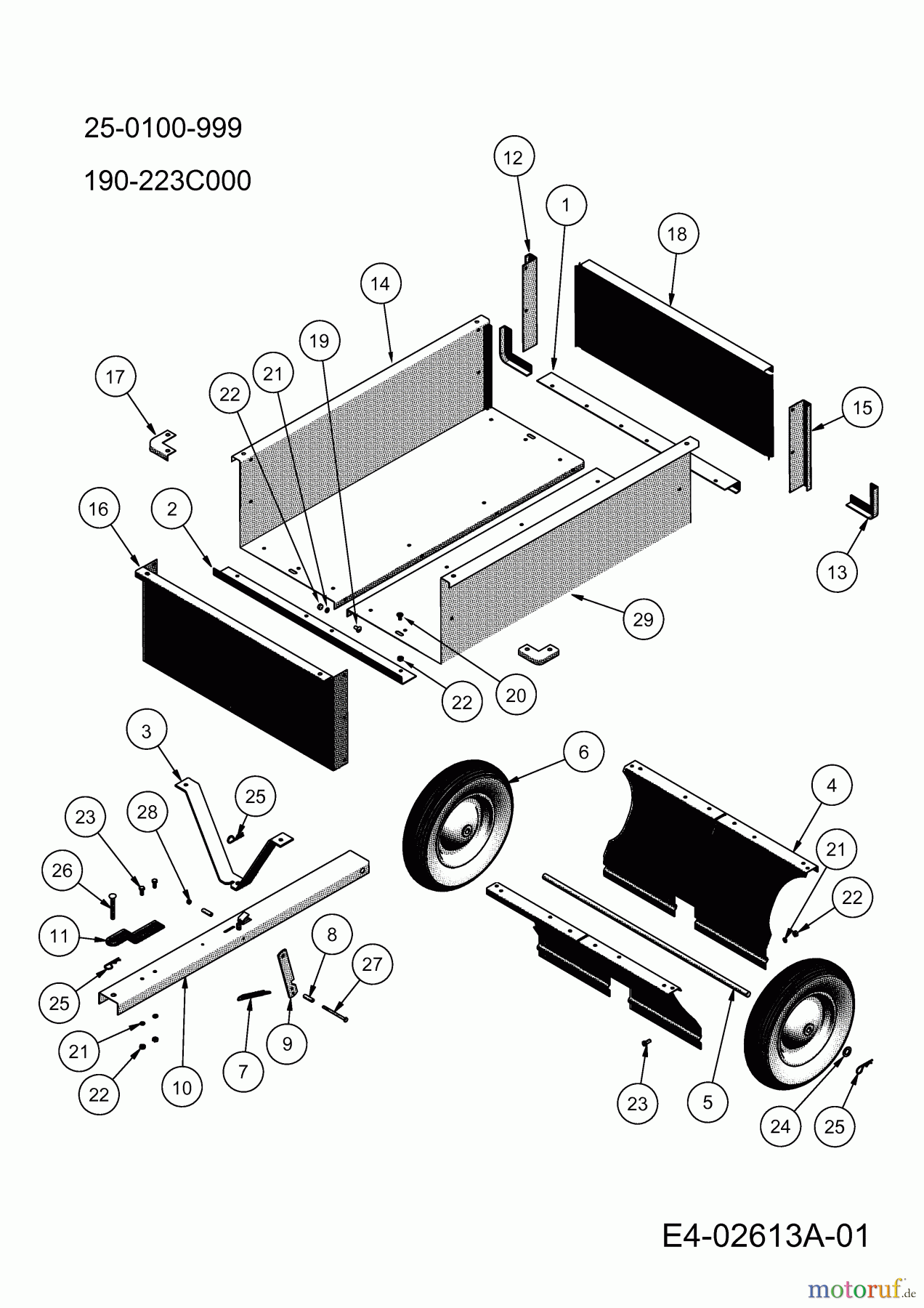

Basic machine 190-223C000 (2010)

MTD Accessories Accessories garden and lawn tractors Utility cart 25-0100-999 (190-223C000) 190-223C000 (2010) Basic machine
PosizioneArticolo numeroDescrizione
1 AF-26784REAR CROSS BRACE
2 AF-26777FRONT CROSS BRACE
3 AF-26778ARM-CATCHER SUPPORT
4 AF-26779SUPPORT WHEEL AXLE
5 AF-26780Axle-wheel
6 AF-42216WHEEL/TIRE ASM.
7 AF-42217Spring
8 AF-42218SLEEVE
9 AF-26781LATCH LOCK LEVER
10 AF-26782TUBE-TONGUE
11 AF-26783HITCH PIN BRACKET
12 AF-27040REAR CORNER BRACE RH
13 AF-26785BRACKET REAR CORNER
14 AF-67012SIDE PANEL RH
15 AF-27041REAR CORNER BRACE LH
16 AF-27039FRONT PANEL
17 AF-26788BRACKET, FRONT CORNER
18 AF-66753TAILGATE
19 AF-234B1TRUSS HEAD BOLT MODEL 25-0125
20 AF-234B2TRUSS HEAD BOLT M8X20
21 736-0665LOCK WASHER 8 DIN 7980
22 MTD Accessories NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
23 710-1725SCREW HEX
24 AF-234B6FLAT WASHER 20MM MODEL 25-0125
25 000.17.010PIN-COTTER
26 AF-234B8HAIRPIN 3MM T MODEL 25-0125
27 AF-42227SCREW
28 AF-42226NUT
29 AF-67011SIDE PANEL, LH
