Gutbrod MB 62-52 07518.02 (1994) Basic machine Ricambi

• Start
• Gutbrod
• Tillers
• MB 62-52
• 07518.02 (1994)
• Basic machine

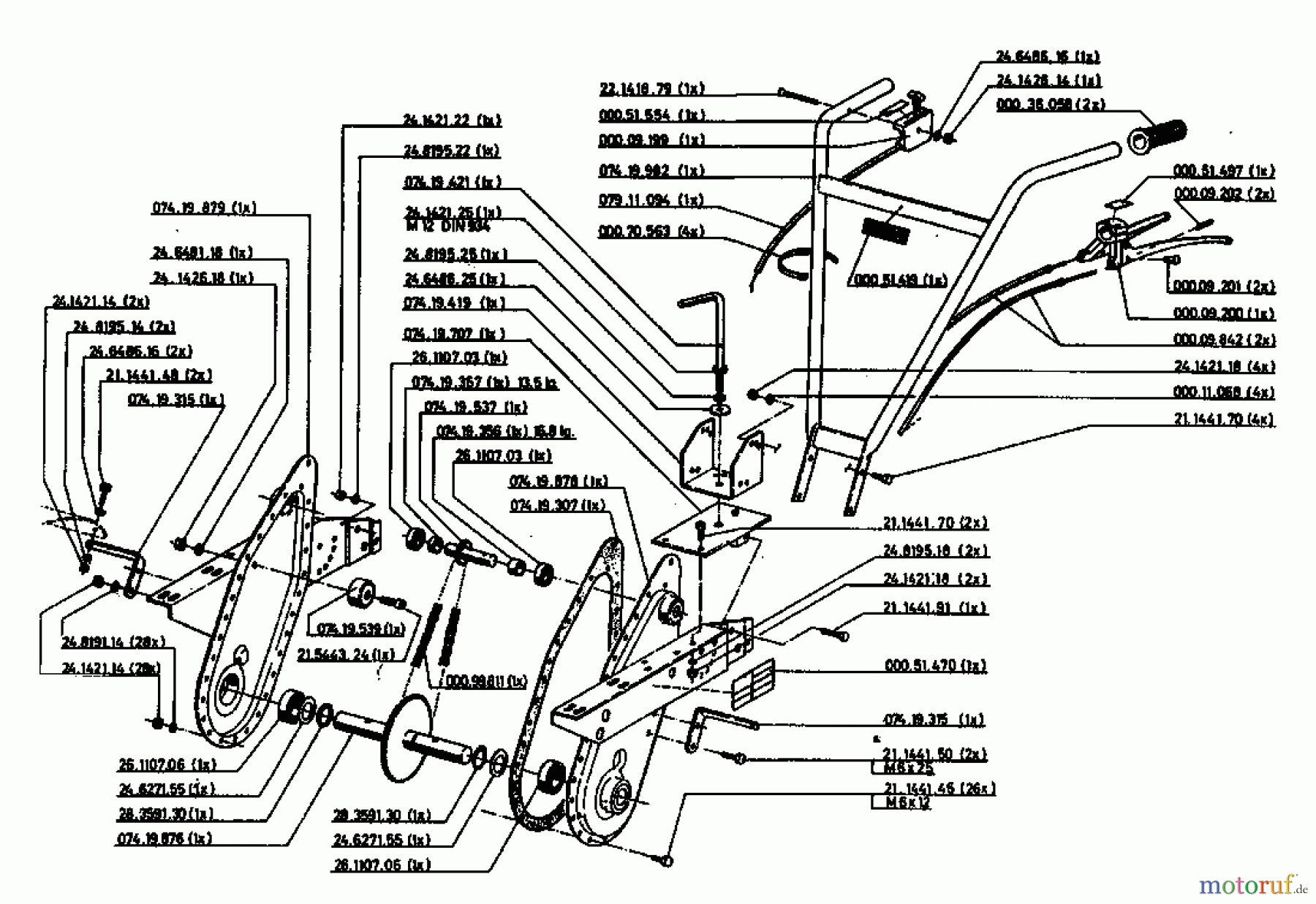

Basic machine 07518.02 (1994)

Posizione		Articolo numero	Descrizione
1		24.6271.55	Shim
2		28.3591.30	Retaining ring
3		074.19.876	DRIVE SHAFT
4		26.1107.06	Bearing
5		21.1441.45	SCREW M6X18 DIN 933
6		21.1441.91	HEX CAP SCREW
7		000.99.811	CHAIN
8		24.1421.14	Nut
9		24.8191.14	L-washer
10		074.19.315	BRACKET
11		074.19.539	TENSION ROLLER
12		21.5443.24	Screw
13		000.09.200	CLUTCH LEVER
14		000.09.201	FASTENER
15		000.09.202	CABLE CLAMP
16		000.09.842	BOWDEN WIRE
17		21.1441.70	Screw
18		000.11.068	Lock washer
19		24.1421.18	Nut
20		000.51.497	LBLI:
21		000.51.470	LBL.IDENTIFICATION
22		21.1441.50	Screw
23		000.51.419	LABEL
24		000.36.058	HANDLE
25		24.1426.14	NYL-STOP-NUT M6 DIN985-8
26		24.6486.16	Washer
27		21.1441.48	Screw
28		074.19.707	HANDLE SUPPORT
29		26.1107.03	Ball bearing
30		074.19.357	SPACER
31		074.19.419	PLATE-BATTERY
32		24.1421.25	Nut
33		24.8195.25	LOCK WASHER
34		24.6486.25	Washer
35		074.19.537	DRIVE SHAFT
36		24.8195.18	Spring washer
37		074.19.307	626-2903/627832019003
38		074.19.356	SPACER
39		074.19.878	HOUSING HALF LEFT
40		24.6481.18	WASHER 8.4 DIN125
41		074.19.879	HOUSING HALF RIGHT
42		000.09.199	GAS LEVER
43		24.1426.18	NYL STOP NUT M5 DIN 985-8
44		24.6486.16	Washer
45		24.8195.14	LOCK WASHER
46		000.51.554	Decal
47		079.11.094	BOWDEN WIRE
48		074.19.982	HNDL ASM:ROT:COMPL
49		074.19.421	TENSION LEVER
50		000.70.563	CABLE TIE
51		22.1418.79	Countersunk screw
52		24.1421.22	Nut
53		24.8915.22
