Gutbrod HB 53 AB 12ABPV5L690 (2016) Grass bag, Rear flap, Rear baffle Ricambi

• Start
• Gutbrod
• Petrol mower self propelled
• HB 53 AB
• 12ABPV5L690 (2016)
• Grass bag, Rear flap, Rear baffle

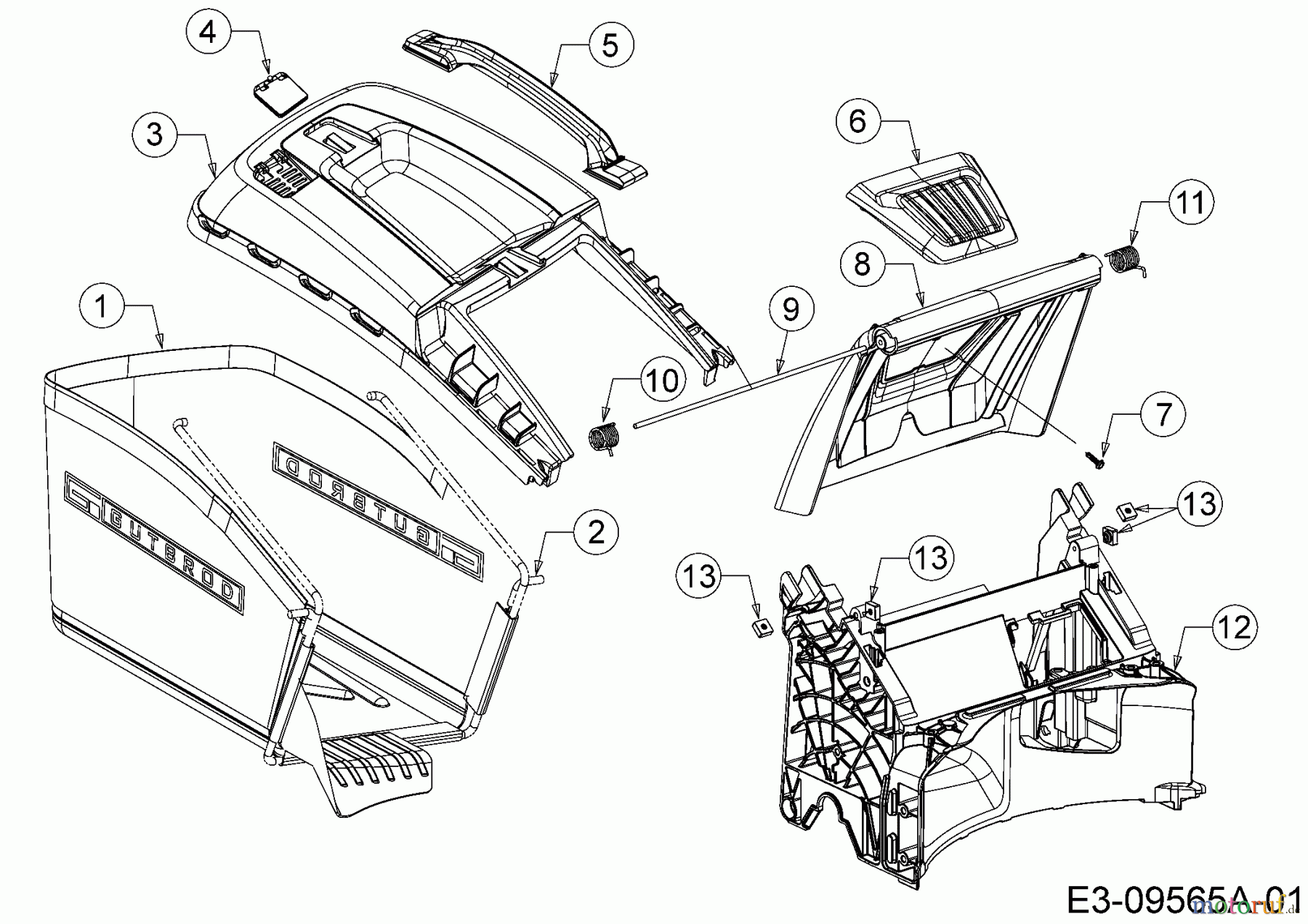

Grass bag, Rear flap, Rear baffle 12ABPV5L690 (2016)

Posizione		Articolo numero	Descrizione
1		664-05097
2		647-05022
3		731-09158	COVER GRASS BAG 53CM
4		731-12151	FILLING LEVEL INDICATION
5		731-09159	GRASP:HARDTOP:53 CM
6		731-12150	COVER REAR FLAP
7		710-06019	SCREW 10-16X:750: TYPE BSE
8		731-09096A	REAR FLAP BLACK 53CM
9		747-06092	747-06092
10		732-05061A	TORSION SPRING RH
11		732-05062A	TORSION SPRING LH
12		731-09082A	BAFFLE:RR:53cm RWD
13		712-05020	ECROU SQLK. 1/4-20
