Cutting drive, Cutter bar 07515.04 (1998)

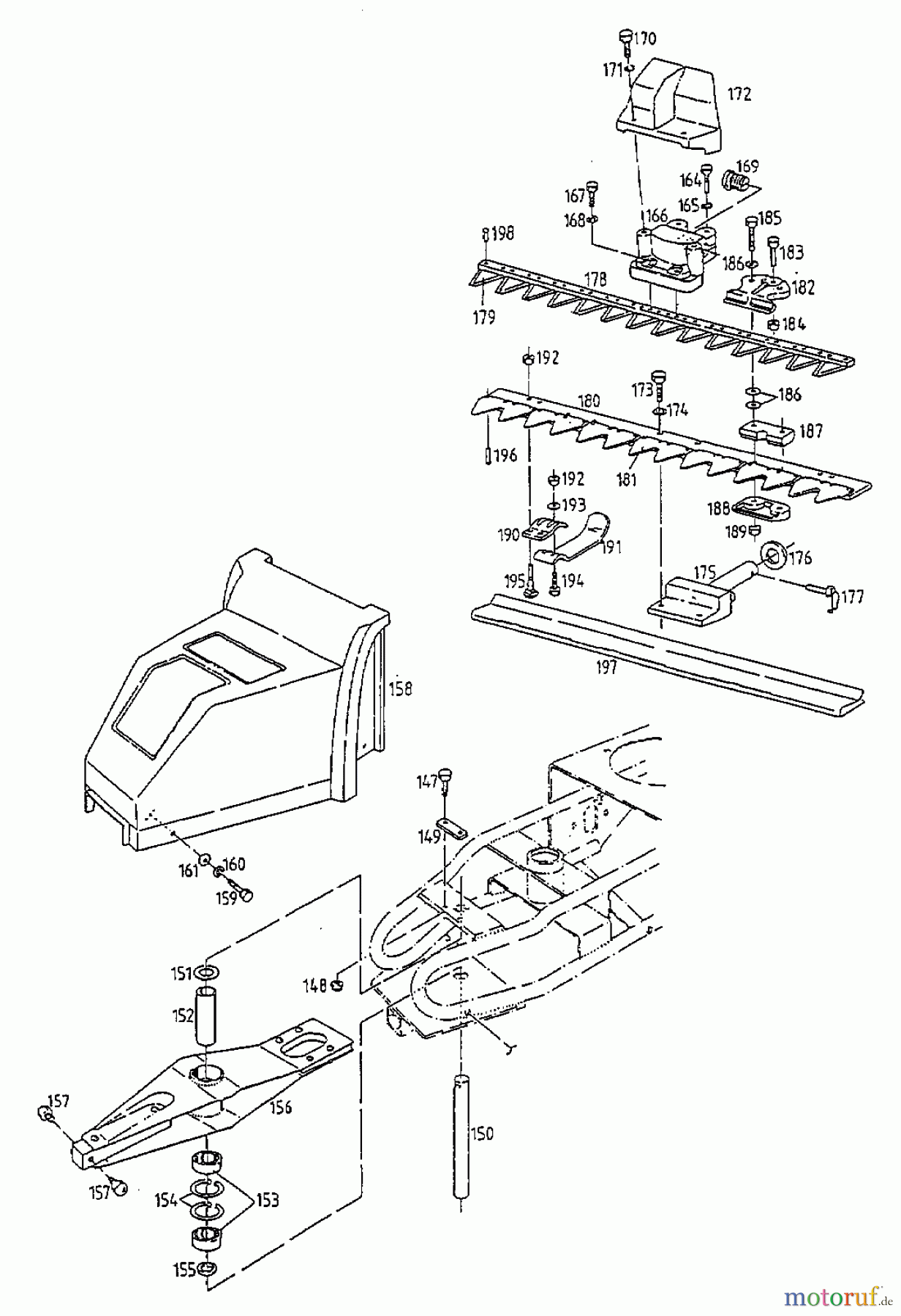

Gutbrod Cutter bar mower BM 710 07515.04 (1998) Cutting drive, Cutter bar
PosizioneArticolo numeroDescrizione
147 21.1441.48Screw
148 24.1426.14NYL-STOP-NUT M6 DIN985-8
149 080.83.175AXLE BRACKET
150 080.83.144Shaft
151 24.6271.38Shim
151A 24.6271.36Shim
151B 24.6271.34Washer
152 080.83.111SPACER
153 26.1107.54Ball bearing
154 Gutbrod Circlip28.3592.42Circlip
155 080.83.110SPACER
156 080.83.831Rocker arm
157 075.77.148Driving pin
158 080.83.168Protection plate
159 21.1441.48Screw
160 24.8195.54Lock washer
161 24.6486.16Washer
164 21.1441.74Screw
165 24.8195.56SPRING LOCK WASHER/DIA 8
166 080.83.117Shaker pin
167 21.1441.72Screw
168 24.8195.56SPRING LOCK WASHER/DIA 8
169 084.78.023Screw
170 21.1441.87Screw
171 24.8195.58Lock washer
172 080.83.832DEFLECTOR
173 21.1451.89Screw
174 24.7272.19Washer
175 080.83.947BLADE SUPPORT
176 24.6484.34Washer
178A 080.83.845Cutter assy.
178B 090.22.365Knife assy.
178 090.22.355MESSERRUECKEN
179 090.22.356BLADE
180 090.22.357LOWER BAR
181 090.22.358DOUBLE BLADE FOR BAR
182 090.22.359MESSERHALTER VOLLST.
183 21.1441.72Screw
184 24.1426.18NYL STOP NUT M5 DIN 985-8
185 21.1443.78Screw
186 24.6481.18WASHER 8.4 DIN125
187 Gutbrod Shim090.22.163Shim
188 090.22.321Slide shoe
189 24.1421.18Nut
190 090.22.360BRACKET
191 090.22.361Guide shoe
192 24.1421.18Nut
193 24.6481.18WASHER 8.4 DIN125
194 21.1441.72Screw
195 22.3419.26Screw
196 090.22.362HALBRUNDNIET
197 090.22.363Finger guard
198 Gutbrod Rivet090.22.364Rivet
