Deck engagement, Engine pulley 13WX79KT066 (2015)

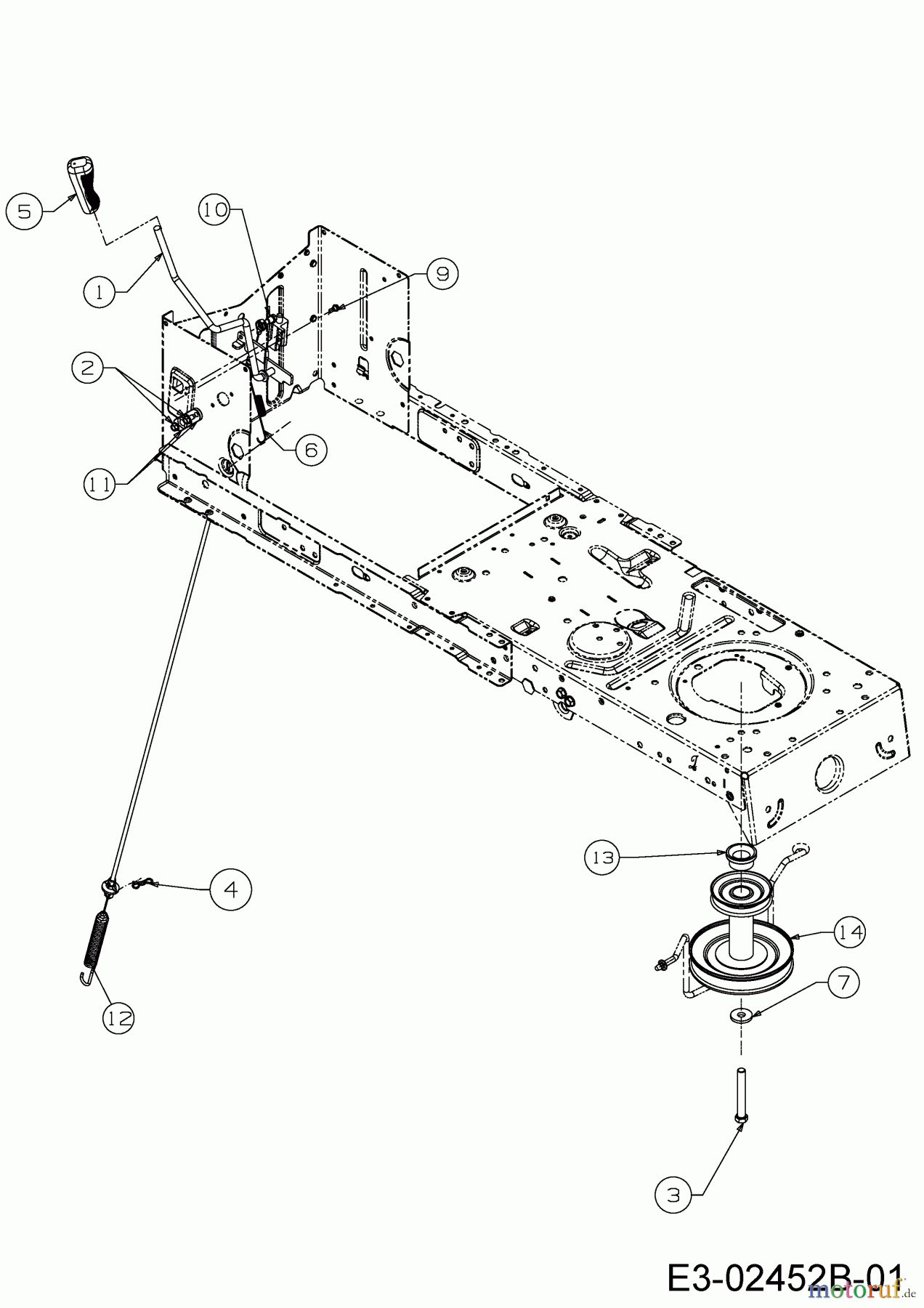

Troy-Bilt Lawn tractors Horse XP 46 13WX79KT066 (2015) Deck engagement, Engine pulley
PosizioneArticolo numeroDescrizione
1 647-05041
2 Troy-Bilt SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
3 710-3157AHEX.SCREW HHCS:7/16-20:3.25GR5
4 Troy-Bilt PIN-COTTER714-04040PIN-COTTER
5 720-04049AGRIP:HNDL:3/8
6 732-05376
7 Troy-Bilt WASH:FLAT:.450 x1.250 x.164:HD736-0322WASH:FLAT:.450 x1.250 x.164:HD
9 Troy-Bilt SCR:SHLDR:T:#10-32:.500738-04237ASCR:SHLDR:T:#10-32:.500
10 Troy-Bilt SCR:SHLDR:.342X.335:TT:1/4-28738-04425SCR:SHLDR:.342X.335:TT:1/4-28
11 Troy-Bilt BRG:PTO:LT-5741-04119ABRG:PTO:LT-5
12 Troy-Bilt CBL:ENGAGE w/SEAL:DECK:F/G746-05140CBL:ENGAGE w/SEAL:DECK:F/G
13 Troy-Bilt SPCR:1.010 X 1.400 X .825750-0956SPCR:1.010 X 1.400 X .825
14 Troy-Bilt PUL:ENG:3.56 x 6.12 DIA HYDRO756-04067APUL:ENG:3.56 x 6.12 DIA HYDRO
